Zeiss CP.3 XD Specifications

  • Lens Format

    VistaVision/Full Frame

  • Aperture range

    T 2.1 to T 22

  • Close focus distance

    1m / 39"

  • Horizontal angle of view

    Full Frame 15 Degree

  • Front diameter

    95 mm / 3.7"

  • Length

    126.5mm / 4.98"

  • Weight

    1.15 kg / 2.5 lbs

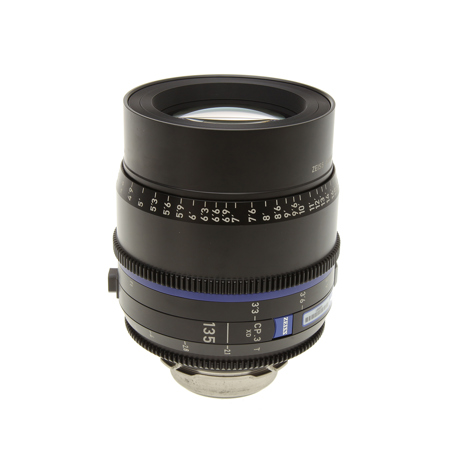

About Zeiss 135mm T2.1 CP.3 XD Compact Prime Cine Lens (Feet) with PL Mount SKU1290018

For filmmakers and cinematographers seeking superior image quality and reliable usability, the ZEISS CP.3 XD 135mm T2.1 Compact Prime Cine Lens for PL Mount is an exceptional choice. This lens embodies the renowned ZEISS quality, delivering clean, crisp visuals that the brand is globally recognized for.

The CP.3 XD 135mm T2.1 lens boasts a versatile interchangeable mount system and full-frame coverage, making it compatible with a broad spectrum of cameras and mount types. This compatibility surpasses any other cine lens available in the market, making it a highly adaptable tool for diverse filming requirements.

One of the standout features of this ZEISS CP.3 XD lens is the innovative ZEISS eXtended Data technology. This ground-breaking lens data technology streamlines the workflow both on set and in post-production. It integrates two data sets: key lens data based on the open /i Technology standard, which is supported by a multitude of cameras and accessories, and ZEISS specific lens data that provides precise lens characteristics.

The ZEISS eXtended Data feature enhances efficiency throughout the entire production process. On set, it allows crew members to monitor lens settings in real-time, pre-visualize modified images, and utilize new, automated search functions within data wrangling. In post-production, the benefits extend to image fine-tuning, editing, color grading, visual effects, virtual and augmented reality, multi-cam live productions, projection, and 3-D imaging.

The ZEISS CP.3 XD 135mm T2.1 lens provides an end-to-end solution for recording and feeding data for onset application and in post-production. The ZEISS eXtended Data is processed in real-time and recorded frame accurately. The data can be transferred either to any supported equipment via an external LEMO interface or directly to any camera compatible with the open /i Technology standard via a 4-pin interface (PL-mount).

Furthermore, the ZEISS plug-in, compatible with leading compositing and editing software tools, allows for easy implementation of ZEISS eXtended Data. This enables the lens' characteristics to be removed and/or reapplied to the footage, providing a seamless and efficient post-production process.

In conclusion, the ZEISS CP.3 XD 135mm T2.1 Compact Prime Cine Lens for PL Mount is a comprehensive solution for filmmakers and cinematographers, offering unparalleled image quality, versatility, and advanced data technology.

Zeiss 135mm T2.1 CP.3 XD Compact Prime Cine Lens (Feet) with PL Mount SKU1290018 Features

  • Full frame coverage
  • Interchangeable Lens Mount System, with five mount options (PL, EF, E, F, MFT)
  • Clean and crisp ZEISS look, color matched across the lens family and matching with other ZEISS cine lenses
  • Smooth and temperature stable focusing mechanism projects
  • Compact and light-weight design is ideal for handheld, gimbal, drone and Steadicam applications
  • Modern optical design, with vastly improved anti-reflection coatings
  • Extraordinarily smooth focus rotation even in extreme temperature conditions thanks to a new, sophisticated construction design
  • Standardized positioning of the focus rings and a consistent 95 mm front diameter allows for fast and easy changeover while on set
  • XD Feature: The ZEISS eXtended Data is a unique technology that provides information about the lens' distortion and shading characteristics in real-time
  • XD Feature: The lens settings are digitally captured on every frame, avoiding the nee
  • XD Feature: Documentation of the lens' characteristics enhances creativity by allowing more complex shots to be handled in post-production
  • XD Feature: Key lens data provides frame-accurate information about:
    Lens name, type and focal length
    Calibrated focusing distance
    Calibrated T-stop value
    Depth-of-field data in real time and hyperfocal distance
    Horizontal field-of-view
    Entrance pupil position
  • XD Feature: ZEISS CP.3 XD lenses enable trailblazing, oneclick correction of images, never before possible in motion picture workflow. ZEISS specific lens data provides frame accurate information about:
    Lens distortion characteristics based on the focal point
    Lens shading characteristics based on the focal point and effective T-stop
