Zoom R24 Specifications

  • Simultaneous Recording Tracks

    8

  • Simultaneous Playback Tracks

    24

  • Recording Data Format

    44.1/48kHz, 16/24bit WAV

  • Maximum Recordable Time

    200 minutes / GB (44.1kHz 16-bit, mono tracks)

  • Projects

    1,000

  • Markers

    100 / Project

  • Locator

    Hours / Min. / Sec. / msec or Bars / Beats / Ticks

  • File Editing

    Divide, Trim

  • Other Functions

    Punch-In / Out (Manual, Automatic), Bounce, A-B Repeat, Undo / Redo, Metronome

  • Input Channels

    8

  • Output Channels

    2

  • Quantization

    24bit

  • Sampling Frequency

    44.1, 48, 88.2, 96kHz

  • Faders

    9

  • Level Meters

    4-Segment LED

  • Track Parameters

    3-Band Equalizer, Pan (Balance), Effect Send x 2, Invert

  • Stereo Links Track pairs

    1/2 to 23/24 selectable

  • Algorithms

    9 (CLEAN, DISTORTION, ACO / BASS SIM, BASS, MIC, DUAL MIC, STEREO, 8 x COMP EQ, MASTERING)

  • Effects Types

    150

  • Modules

    7 for Insert, 2 for Send / Return

  • Patches

    330 for Insert, 60 for Send / Return

  • Tuner

    Chromatic, Guitar, Bass, Open A/D/E/G, D modal

  • Playback Data Format

    44.1/48kHz, 16/24bit WAV

  • Editing Functions

    Trim, Time-stretch

  • Voices

    8

  • Sound Format

    16-bit Linear PCM

  • Drum Kits

    10

  • Pads

    8 (velocity-sensitive)

  • Precision

    48 PPQN

  • Rhythm Patterns

    511/project

  • Patterns

    511 (472 factory, 39 blank) / Project

  • Beat

    1/4 - 8/4

  • Tempo

    40.0 - 250.0 BPM

  • Recording Media

    SD Card (16MB-2GB), SDHC Card (4-32GB)

  • A/D Conversion

    96kHz 24bit delta-sigma ADC

  • D/A Conversion

    96kHz 24bit delta-sigma DAC

  • Display

    128 x 64 pixel LCD (with backlight)

  • Inputs

    8 x XLR-1/4" Phone Combo Jack / Input Impedance

  • Built-in microphones

    Omnidirectional condenser microphones Gain: -50dBm to +4dBm continuously variable

  • Phantom Power Supply

    48V / 24V

  • Master Output

    1/4" TRS Phone (balanced) / Output Impedance: 1kohm / Rated Output Level: +4dBm

  • Headphones Output

    1/4'' Stereo Phone Jack, 20mW x 2 (at 32ohm load)

  • USB

    [B type (USB2.0 High-Speed compatible)] Audio Interface

  • Power Requirements

    AC adaptor (DC5V/1A/center positive) or AA size (LR6) battery x6

  • Battery Life

    4.5 hours (with backlight on and phantom power off)

  • Dimensions (W x D x H)

    376 x 237.1 x 52.2mm / 14.80 x 9.33 x 2.06in

  • Weight

    2.8lbs / 1.3kg

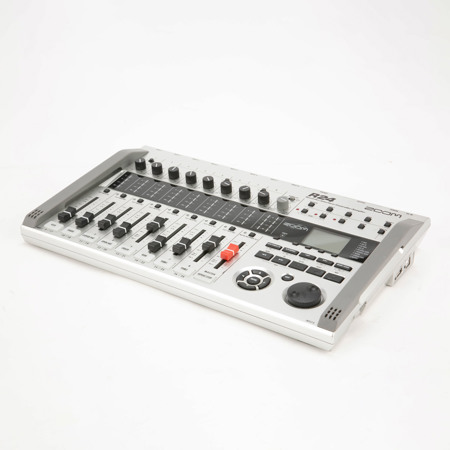

About Zoom R24 Recorder / Interface / Controller / Sampler - SKU#1697954

The R24 Digital Recorder, Sampler, USB Interface and DAW Controller - Combines a 24-track recorder, audio interface control surface capability, drum machine and sampler functions. The Zoom R24 is great for live and studio applications. Simultaneous 8-track capability and Playback up to 24 tracks using its 16/24 bit linear WAV format and 44.1 or 48 kHz sampling rate.

The R24 functions as an audio interface enabling direct input of sound to a computer. Support for high quality 24-bit/96kHz encoding ensures great sound. Eight input channels and two output channels can be used simultaneously. If you use the sampling rate of 44.1kHz, the internal DSP effects of the R24 are also usable on your computer track. A dedicated control lets you adjust the mixing balance between the DAW playback sound and the direct sound for monitoring.

Transport and mixing operations of the DAW software can be controlled using the R24. This gives you greater control and a better feel for mixing. In Mackie control emulation mode, major DAW applications such as Cubase, Logic and Sonar are supported.

Specify a range from any track to use as loop material. Then play them in real time with trigger playback using the drum pads, or use the onboard sequencer to build the loop structure for a song. Recording on another track while playing loops is also possible, seamlessly blending the recorder and sampler functions.

Zoom R24 Recorder / Interface / Controller / Sampler - SKU#1697954 Features

  • Record 8 tracks simultaneously with 24 track playback
  • Audio interface with 8-in/2-out capability
  • Control surface for all major DAW functions
  • Pad sampler with 24 voices (8 pads x 3 banks)
  • Drum machine with 10 kits and velocity sensitive pads
  • Large 1.9 inch LCD shows waveform information
  • High sensitivity stereo mics built in
  • 8 combination XLR/phono input jacks
  • Hi-Z compatible input
  • 6-channel simultaneous phantom power supply capability
  • 135 DSP effects including guitar amp simulations
  • Support for SDHC cards for up to 32 GB
  • USB based sync capability for two R24 units allows 16-track simultaneous recording and 48-track simultaneous playback
  • Runs for about 4 hours on six AA batteries
  • Sleek design only 35 mm high

What's in the box:

  • Zoom SD Memory Card (1GB)
  • AC Adapter (AD-14)
  • Item Note: Missing Zoom SD Memory Card (1GB); USB Memory (2GB); USB Cable
