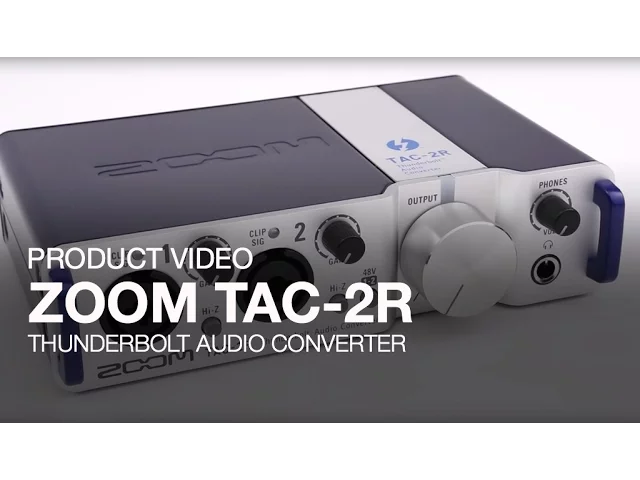

Used Zoom TAC-2R 2-Channel Thunderbolt Audio Interface

SKU: US1851432 MFR: ZTAC2R
$58.00
Earn VIP Reward Points

INCLUDES FREE WARRANTY

  • This used item comes with a free 90-day warranty. ?
Calculate Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$10.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Zoom TAC-2R Specifications

  • Input 1/2 connectors

    XLR/TRS combo jacks(XLR: 2 hot / TRS: TIP hot)

  • Input gain

    0 to 60dB in 1dB steps

  • Input impedance

    5kOhms (1 MOhms (when Hi-Z ON)

  • Maximum input level

    +12 dBu ( at 0dBFs)

  • Phantom power

    +48V

  • L/R Output: Type

    1/4" TRS phone jack (Balanced)

  • L/R Output: Maximum output level

    +14 dBu ( at 0dBFs)

  • L/R Output: Output impedance

    100Ohms

  • Phones Output: Type

    1/4" stereo phone jack
    20mW + 20mW (into 32O load)

  • Phones Output: Maximum output level

    +8 dBu ( at 0dBFs)

  • Phones Output: Output impedance

    33Ohms

  • AD/DA Conversion: Type

    4x upsampling ( at 44.1kHz or 48kHz)

  • AD/DA Conversion: Chipset

    Burr Brown PCM4202 (A/D)
    AKM AK4396 (D/A)

  • AD/DA Conversion: Frequency response

    -1.0 dB: 20 Hz - 60 kHz at 192kHz
    -1.0 dB: 20 Hz - 40 kHz at 96kHz
    -1.0 dB: 20 Hz - 20 kHz at 44.1kHz

  • AD/DA Conversion: A/D dynamic range

    118dB typical½(IHF-A)

  • AD/DA Conversion: D/A dynamic range

    120dB typical (IHF-A)

  • Audio channels (recording)

    2

  • Audio channels (playback)

    2

  • S/N ratio EIN

    -125dBu (IHF-A) at 60dB, 150Ohms input

  • Sampling frequency

    192kHz, 176.4kHz, 96kHz, 88.2kHz, 48kHz, 44.1kHz

  • Bit depth

    24-bit

  • Latency (typical)

    4.17 msec round trip
    ( at 44.1kHz sampling / 64 sample buffer size)

  • Interface

    Thunderbolt

  • Power

    Thunderbolt Bus Power

  • Power consumption

    10 W maximum

  • MIDI Input

    5-pin DIN jack

  • MIDI Output

    5-pin DIN jack

  • Dimensions(H x W x D)

    1.81 x 6.92 x 4.48" / 46.2 x 176 x 113.9mm

  • Weight

    714g / 25.19oz

About Zoom TAC-2R 2-Channel Thunderbolt Audio Interface

Warranty Information

This used item has a FREE 90-day warranty. See details.
