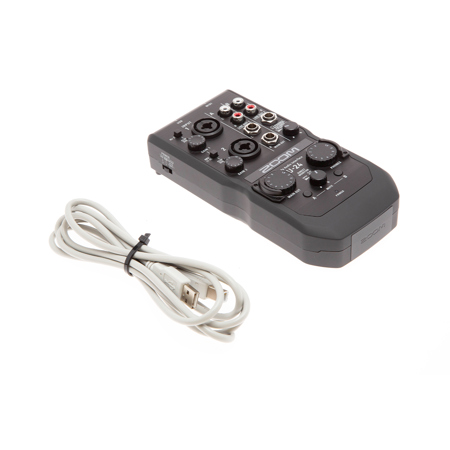

Used Zoom U-24 2-In/4-Out Handy Audio Interface

SKU: US1852459

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Zoom U-24 Audio Interface Specifications

  • Analog In: Input 1/2

    Connector: TRS/XLR combo jacks (XLR: 2 hot, TRS: TIP hot)
    Input gain: 0 - 43 dB
    Input impedance: 2.6 kOhms (MIC IN) 1.1 MOhms (when Hi-Z ON)
    Maximum input level: +2.7 dBu (MIC IN) /+20.7 dBu (TRS IN)
    Phantom power: +48V

  • Analog Out: Main Out L/R

    Connector: TRS phone jacks (unbalanced)
    Maximum output level: +10 dBu (at 0 dBFS)
    Output impedance: 330Ohms

  • Analog Out: Line Out 1/2

    Connector: RCA (coaxial)
    Maximum output level: +8 dBu (at 0 dBFS)
    Output impedance: 1kOhms

  • Analog Out: Phones

    Connector: Standard stereo phone jack
    30 mW x 2 (into 32Ohms load)
    Maximum output level: +10 dBu (at 0 dBFS)
    Output impedance: 33Ohms

  • Frequency characteristics

    At 44.1 kHz: -1.0 dB: 20 Hz - 20 kHz
    At 96 kHz: -3.5 dB: 20 Hz - 40 kHz

  • Input conversion noise

    Measured EIN: -119.5 dB (IHF-A) at 43 dB, 150Ohms input

  • Number of audio channels

    Recording: 2 channels
    Playback: 4 channels

  • Sampling frequencies

    96 kHz, 88.2 kHz, 48 kHz, 44.1 kHz

  • Bit depth

    24-bit

  • Interface

    USB 2.0

  • MIDI In/Out

    5-pin DIN jack

  • Power Source

    USB bus power (Type B)
    Zoom AD-17 (Micro-B)
    DC 5V power supply (Micro-B)
    2 AA batteries (4 hours continuous operation with phantom power off)

  • Power consumption

    5W maximum

  • Dimensions (D x W x H)

    191.8 x 92.3 x 42.7mm / 7.55 x 3.63 x 1.68"

  • Weight

    285g / 10.05oz (main unit only)

About Zoom U-24 2-In/4-Out Handy Audio Interface - SKU#1852459

When it comes to portable, high-quality audio recording and playback, the U-24 2-In/4-Out Handy Audio Interface stands out with its versatility and user-friendly features. This compact, durable device from the reputable brand Zoom, delivers high-resolution, 24-bit/96 kHz audio, making it an ideal choice for musicians, podcasters, and audio professionals on the go.

The U-24 is equipped with the same high-quality, low-noise preamps found in Zoom's acclaimed H5 and H6 Handy Recorders, ensuring pristine sound quality. It offers multi-channel and stereo USB audio interface compatibility with PC, Mac, and iPad, allowing you to record mics, instruments, and more with ease.

This audio interface boasts two mic/line inputs with high-performance mic preamps, ensuring high-quality recording and playback at resolutions up to 24-bit/96 kHz. It also features Hi-Z support (input 1), zero-latency direct monitoring, two TRS phone jack outputs, dedicated RCA L/R, and headphone outputs, MIDI I/O, and gain control knobs for each input. It also provides +48V phantom power for inputs 1 and 2, making it a versatile tool for various recording and performance setups.

The U-24 is designed for portability and convenience. It's small enough to fit in the palm of your hand and can run on just two AA batteries, making it perfect for recording in remote locations. It also includes a download code for Ableton Live 9 Lite, offering a comprehensive solution for modern music creators.

With the U-24, you can connect mics, keyboards, mixers, and more, thanks to its two combo inputs with independent gain knobs and multi-color level indicators. Its 48V phantom power can be supplied to both inputs, and input 1 supports Hi-Z for connecting guitars, basses, or other passive instruments. MIDI input and output jacks allow for the use of devices like keyboards, controllers, synthesizers, and drum machines.

The U-24 also offers flexible monitoring options for creating the perfect mix with zero latency. Balance the cue and main out signals when DJ'ing or create a mix of click track and main out signals during live performances. Each connector and knob is strategically positioned for fast access, allowing you to set up and control the U-24 with ease.

In summary, the U-24 2-In/4-Out Handy Audio Interface is a versatile, high-quality, and user-friendly device that offers a comprehensive solution for all your audio recording and playback needs.

Zoom U-24 2-In/4-Out Handy Audio Interface - SKU#1852459 Features

  • High-resolution 24-bit/96 kHz audio interface for professional-grade recording and playback
  • Dual mic/line inputs with Zoom's acclaimed low-noise preamps for crystal-clear sound quality
  • USB connectivity for seamless integration with PC, Mac, and iPad recording setups
  • Versatile input options with +48V phantom power, Hi-Z support, and MIDI I/O for comprehensive connectivity
  • Portable and durable design, powered by two AA batteries for on-the-go recording sessions
  • Includes Ableton Live 9 Lite download code for immediate music production and editing

What's in the box:

  • Zoom U-24 2-In/4-Out Handy Audio Interface
  • Operation Manual
  • USB Cable
