UVify Draco 5.8GHz FPV RC RTF Racing Drone with Sony 1/3" Super HAD II CCD 600TVL Camera, Remote Not Included

Draco
Draco is the ultimate ready-to-fly for drone racing. Features 5.8 GHz blazing fast analog video downlink to FPV goggles.

Ready to fly
Optimized for racing, freestyling and extreme aerial cinematography, the Draco series comes flight-ready with powerful features and is amazingly easy to use.

High-performance drones built to endure
A precisely tuned powertrain enables Draco to cut through 3D space faster than a hot knife through butter, all while staying cool and stylish.

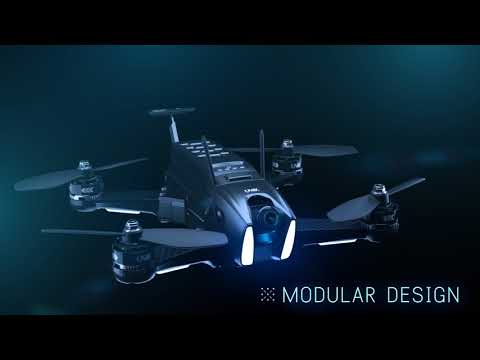

Modular build
Draco gives you versatility and durability. Its swappable parts enable you to quickly repair or modify your Draco, keeping you in the race.

Smart battery technology
Keep flying with UVify's patented rapid-swap smart battery. Draco's battery has a built-in computer that measures mission-critical information, including voltage, current and battery life. Draco's rapid-swap smart battery is a snap to use and gives you the freedom to transport your gear without worry.

Integrated charger and balancer
Integrated charger and balancer, no need to set up a charger, just plug it into the UVify charge block and it'll do the rest.

Future proof
Draco was designed with the future in mind. UVify's modular build ensures that your Draco will benefit from the latest and greatest innovations from our lab.

Built for speed
Draco's propulsion system is optimized for high-performance. UVify is composed of multiple Masters and PhD professionals with years of design knowledge and experience relating to drone technologies, bringing you bleeding-edge technology.

Upgradeable core components
UVify's modular design gives you the power to upgrade your Draco as you desire.

Maximum portability
Draco components are easily transported and quickly assembled, giving you the freedom to get up and go to the most extreme flying environments with ease.

You break we replace
Draco has been battle tested in the most extreme conditions around the world. But if you do manage to break an arm, its easy to keep flying thanks to UVify's hot-swap arm. Draco offers full Beta flight and BL Heli integration and support.

Aircraft
• Highly crash resistant polycarbonate plastic composition
• Matte black finish (colors will be available)
• 4k twill carbon chassis
• 240mm motor to motor wheelbase
• 485g/1.07lbs weight (no battery)
• Modular componentry, no soldering required
• Upgradeable to HD

Intelligent Racing Battery
• 4S high-density lithium polymer
• 1800mAh capacity
• 65C continuous discharge, 100C burst
• Onboard current sensor
• Onboard charging and balancing circuits
• Memory capability, monitor lifespan and performance over time
• Gauge indicator
• On/Off power control
• 207g/0.46lbs weight

Motors
• Direct drive 3-phase brushless DC motor
• 2206 stator size
• 500W continuous
• 2300RPM/V
• 7mm high temperature neodymium arc magnets
• 0.15mm steel stator laminations
• 5mm titanium hollow shaft
• 12/14 pole design
• Up to 6S capable

Speed Controller
• 30A brushless electronic speed controller
• 60A burst rating
• Up to 6S input
• Active braking RPM control
• Temperature monitoring
• Field-oriented control algorithm (FOC) capable

Prop
• 5 inch 2 blade propeller
• Designed for efficient flight
• Polycarbonate plastic composition
• Easy replacement
• Approximately 1200g of thrust per propeller

Flight Controller
• 32-bit MCU
• SPI to sensors
• Serial connection to receiver
• GPIO available
• Compatible with many open-source firmwares
• Modular

Sensors
• 6-axis IMU (gyro and accelerometer)
• Industrial vibration isolation
• SPI interface
• Up to 32kHz update rate
• Modular

Video Transmitter
• 5.8GHz analog video transmission system
• Up to 40 available channels (country dependent)
• Variable power output (<1mw, 25mW, 200mW, 600mW)
• Pit mode available, allowing powering without transmitting
• No perceivable latency
• Standard SMA connection
• Pagoda omnidirectional circularly polarized video antenna
• Modular with Video Overlay System

Video Overlay System
• 32-bit double buffered full VGA resolution
• PAL and NTSC compatible
• Allows full configuration of the following through FPV feed: VTx settings, Draco FC settings, OSD settings, Camera settings
• Custom logo
• Modular with Video Transmitter

Camera
• Sony 1/3" Super HAD II CCD 600TVL
• 2.5mm Lens
• Adjustable angle (0/20/40/60 degrees)
• Wide Dynamic Range
• Low light capable
• Modular

LED Lighting
• Fully addressable WS2812 RGB LEDs (front and back)
• Control via flight controller
• Selectable RGB LEDs (arms)
• Light diffusion covers

Charger
• 16.8V 2A Output
• 33.6W
• Approx.1C charge rate for extended lipo life
• Charges Draco 1800mAh lipo in Approx.1 hour
