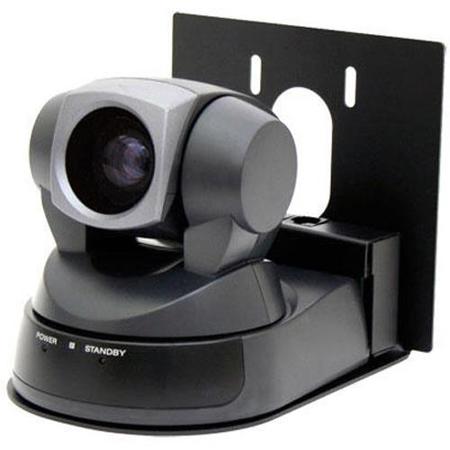

Vaddio WallVIEW 100 HD NTSC 10x PTZ Camera, Black

The WallVIEW 100 PTZ is a complete Wall-Mounted pan/tilt/zoom Camera System. The system includes a Sony EVI-100 PTZ camera, a thin profile wall-mount bracket for the camera and the Vaddio EZCamera Cabling System. The EZCamera Cabling System allows the installer to use Cat. 5 cabling to run power, video and camera control. Also included is Vaddio's PowerRite Power Supply. The PowerRite system regulates the right amount of power needed for the camera over Cat. 5 cabling.

• S-video or composite
• One Cat.5 for Power/Video
• One Cat.5 for Control
• Daisy Chain-ability

Sony EVI-D100 PTZ Camera
A high-quality CCD camera that combines a high-speed, quiet pan/tilt with a wide angle view and 40X zoom (10X optical and 4X digital) VISCA camera control, six preset positions and a IR remote control.

Thin Profile Camera Wall-Mount Bracket
Custom PTZ camera wall-mount bracket designed exclusively for the Sony EVI-D100 Camera. Heavy-duty metal construction with cable access openings for in-wall or exposed wall installations. Includes tripod screw and mounting hardware.

EZCamera Cabling System
Allows installer to use Cat. 5 cable to run power, video and camera control. Video Balum technology is used to extend the range of the video signal and to allow it to work on Cat. 5 cable. The Vaddio PowerRite Camera Power System includes a high output power supply and a power regulator to maintain the right voltage over Cat. 5 cable.

EZCamera Shoe Interface
A plug-in shoe that integrates the Sony EVI-D100 Camera to the EZCamera Cable System. The shoe interface converts camera outputs to three RJ-45 jacks. The first jack provides power and video. The second jack provides primary camera control signaling and the third provides daisy-chain camera control to additional Sony PTZ Cameras.

EZCamera Quick-Connect Box
This small interface box converts power, S-Video and composite video into a single Cat. 5 cable.
