Vaddio In-Ceiling Half-Recessed Enclosure for HD-20/19/18 PTZ Cameras

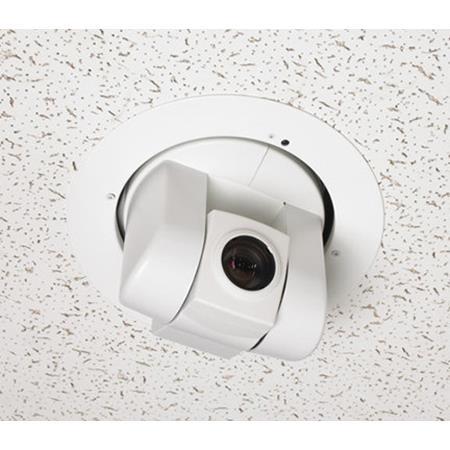

Vaddio's IN-Ceiling Half-Recessed Enclosure is an attractive, easy to install, partially recessed and inverted, pan/tilt/zoom camera mounting system for Vaddio HD PTZ cameras. It is compatible with the Vaddio ClearVIEW, PowerVIEW and RoboSHOT packages using the QuickConnect SR Quick-Connect DVI/HDMI-SR, Quick-Connect USB and Quick-Connect USB Mini. The enclosure features a sealed, recessed, metal ceiling camera enclosure with one-piece tile support brace, white trim ring and mounting hardware kit. The white trim ring has an IR receiver and there is an IR emitter board, powered by the Quick-Connect Interfaces, on the inside of the enclosure to ensure full compatibility with the Vaddio IR Remote.

• Metal back box and white metal trim ring included
• Active IR circuit in trim ring and enclosure
• Tile support brace included

The IN-Ceiling enclosure is compatible with the following camera systems using RS-232 only; ClearVIEW HD- 20SE/20/19/18, PowerVIEW HD-22/30, when locally powered and Quick-Connect Universal CCU Systems for PowerVIEW, ClearVIEW and RoboSHOT, which are powered and controlled by the CCU. These systems do not use the IR Receiver/Emitter circuit inside the enclosure. These ultra-flexible camera enclosures are compatible with all Vaddio HD PTZ camera systems. The IN-Ceiling Half Recessed Enclosure is an appealing and concealing camera mounting option.

Active IR Circuit Built into the Trim Ring & Enclosure
The IN-Ceiling Enclosure has a built-in active IR receiver on the trim ring and IR emitter on the inside of the back box. The IR circuit is powered by the Quick-Connect SR, Quick-Connect DVI/HDMISR, Quick-Connect USB and Quick-Connect USB Mini Interfaces and ensures IR remote control compatibility of the camera when not controlling the camera through serial (RS-232) commands.

Sealed Metal Back Box
The shallow, sealed metal back box features a steel machined bezel ring and back box lid which gives the enclosure a quality look and feel. The enclosure even includes a 3/4" clamp-down conduit connector.

Recessed Installation Kit for IN-Ceiling Enclosure
The IN-Ceiling Half-Recessed Enclosure can be mounted into a gypsum board (drywall) or hard wood ceiling with the Recessed Installation Kit. This Kit includes mounting plates, large trim ring with active IR receiver and all required mounting hardware.
