Vaddio AV Bridge Conference System, Includes Pair of 1RU Rack Mount Ears, Power Supply and USB 2.0 Cable, North America

SKU: VAD98215000 MFR: 999-8215-000
Earn VIP Reward Points

Key Features

  • Achieve high-resolution video capture up to 1080p/30 for professional-quality recordings.
  • Enjoy stable connection via USB 2.0, ensuring reliable live streaming and video transfer.
  • This video format converter is easy to use, with intuitive front panel controls for A/V switching.
  • Benefit from wide compatibility with HDMI, YPbPr, and more, making integration seamless.
  • Stream directly to platforms using RTSP or HLS with this versatile video capture device.
  • Use the embedded web server for advanced configurations of your audio/video encoder settings.
See More Product Details
Temporarily On Backorder?Expected Availability: 10/2025Request assistance or get notified
Calculate Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$99.99

3 Year

$159.99

4 Year

$191.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Vaddio AV Bridge Conference Specifications

  • A/V Encoding

    IP (H.264 & AAC Audio) Resolutions up to 1080p/30, USB 2.0 (MJPEG & PCM Audio) Resolutions up to 720p/30

  • Media Players

    Quick-Time, RealPlayer and VLC Media Player (for IP Streaming)

  • Supported Input Resolutions

    HDMI & YPbPr: 1080p/60/59.94/50/30/25 frames/s, 720p/60/59.94/50 frames/s, 1080i/59.94/50 fields/sec
    RGBHV (VESA): 1280x720 at 60Hz (16:9), 1280x768 at 60Hz (15:9)m, 1280x800 at 60Hz (16:10), 1360x768 at 60Hz (16:9), 1024x768 at 60Hz (4:3 centered in 16:9 frame)
    DVI-D (on HDMI connector using sRGB color space): 1080p/60/59.94/50/frames/s, 720p/60/59.94/50Hz frames/s 1080i/59.94/50Hz, fields/sec, 1440x900 at 60Hz, 1360x768 at 60Hz, 1280x800 at 60 Hz, 1280x768 at 60Hz, 1280x720 at 60Hz

  • Supported Video Input Resolution (cont.)

    EDID Supported Resolutions: 1080p/60/59.94/50/frames/s, 720p/60/59.94/50Hz frames/s, 1440x900 at 60Hz, 1360x768 at 60Hz, 1280x800 at 60 Hz
    Composite (Standard Definition): 480i/29.97Hz NTSC, 576i/25Hz PAL

  • Video/Audio DSP

    Video: Auto-scaling, Noise Filter and DE interlacing, Audio: Compressor, Equalizer and Filters

  • Audio I/O

    Connectors: 2-XLR (Balanced In & Out) & 2-RCA (Unbalanced In & Out), Nominal Levels: +4dBu Balanced, -10dBu Unbalanced

  • Control

    Embedded Web Server for advanced configurations and administration, front panel controls for switching A/V, muting and volume Telnet on the Network RJ-45 Port, RS-232 on the unshielded RS-232 Port (for support of legacy control products)

  • USB and Network

    USB: Type-B USB 2.0 Compliant Connector, Network: RJ-45 10/100 Base-T

  • IP Streaming

    RTSP or HLS (Apple's HTTP Live Streaming)

  • Dimensions (WxHxD)

    With Rack Ears: 18.93 x 1.72 x 7" (480.82 x 43.69 x 177.80mm)

  • Weight

    3.14 lbs (1.42kg)

  • UPC Code

    840077501655

About Vaddio AV Bridge Conference

The Vaddio AV Bridge CONFERENCE is a room based HD Media Streaming solution enabling IP or USB streaming. Like the original AV Bridge, it's an appliance that "bridges" the room's analog audio and video into a computer (PC or Mac) for UC applications, but with one important distinction. The AV Bridge CONFERENCE has been designed as an HD Encoder with 2-way analog audio to send the near-end audio to the far-end and return the far-end audio to the room's pro mixer with AEC. The AV Bridge CONFERENCE offers a flexible A/V interface that is controllable with an embedded web server and the current settings are viewable from front panel menu system.

It accepts a multitude of video input resolutions from standard definition composite video (480i/NTSC and 576i/PAL) all the way up to HD 1080p/60 in HDMI and YPbPr, including the most relevant wide-screen VESA type PC resolutions (RGBHV or DVI-D). The USB streaming functions using MJPEG (Motion JPEG) and standard UVC (USB Video Class) with UAC (USB Audio Class) drivers eliminate the need for installation of custom software drivers on the Host PC. The IP streaming uses RTSP or HLS (Apple's variant on HTTP streaming) and encodes H.264 video with AAC Audio. The Ethernet port also provides access to internal web pages for control, setup and updating the software.

Use the AV Bridge CONFERENCE in UC conferencing applications to "bridge" video and audio signals into a PC or retrofit existing conference rooms by simply plugging a USB cable into a Host PC or connecting to an IP network. The AV Bridge CONFERENCE supports high definition encoding of audio and video sources, producing superior quality results at the fraction of the cost of other similar products. It seamlessly integrates with Vaddio's HD cameras, presentation systems, video mixing consoles and other pro audio products with AEC. The AV Bridge CONFERENCE is an unsurpassable value due to its ease of use, flexibility and plug & play functionality, really.

Flexible Applications
AV Bridge CONFERENCE supports USB 2.0 A/V streaming (MJPEG/PCM) or IP A/V streaming (H.264/AAC) for UC conferencing applications, lecture capture or content delivery and more!

High Definition A/V Encoder
Stream directly to a PC or Mac with USB 2.0 using MJPEG video with resolutions up to 720p/30 (limits of USB 2.0) with PCM uncompressed audio or use IP streaming with resolutions up to 1080p/30 using H.264 video with AAC audio encoding.

2-Way Analog Audio Ins and Outs
An important feature of the AV Bridge CONFERENCE is the addition of 2-way analog audio to send the near-end room audio to the far-end and return the far-end audio to the local room's pro mixer with AEC. The AV Bridge CONFERENCE is the ideal choice for existing rooms as well as new designs.

Emulates USB Webcam and Speakerphone
AV Bridge CONFERENCE minimizes interoperability problems by implementation of standards based UVC (Universal Video Class) and UAC (Universal Audio Class) drivers. Since these drivers are built-in the OS of the PC or Mac there are no pesky interoperability or driver issues.

Common Media Players
IP streams are standard based MPEG4 allowing playback of content on market leading players like Quick-Time, RealPlayer or VLC Media Player. Custom players are not required for playback.

Simple User Interface

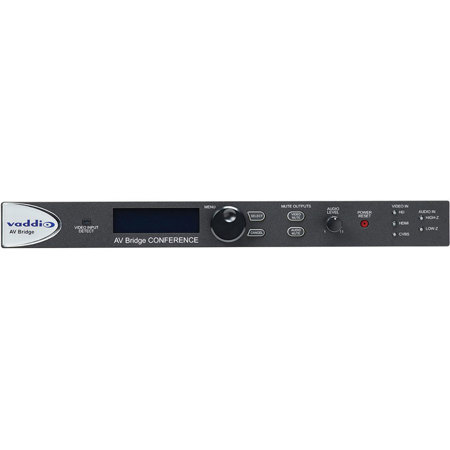

The user interface is provided with a built-in web server. Simply connect it to the network and the web pages are served up in an easy to use menu based system. The menus include A/V Configuration, Streaming, Room Labels, Networking, Security, Diagnostics, System Configuration, Help Menu and more! The front panel menu system has the ability to affect the most accessed controls with the spin of a knob and a push of a button.

These controls include setting Audio Inputs (Balanced or Unbalanced) and setting the Video Inputs (HDMI or YPbPr or RGBHV and composite video). All of the IP network and USB information can be viewed from the front panel quickly and easily.

Key Features

  • Achieve high-resolution video capture up to 1080p/30 for professional-quality recordings.
  • Enjoy stable connection via USB 2.0, ensuring reliable live streaming and video transfer.
  • This video format converter is easy to use, with intuitive front panel controls for A/V switching.
  • Benefit from wide compatibility with HDMI, YPbPr, and more, making integration seamless.
  • Stream directly to platforms using RTSP or HLS with this versatile video capture device.
  • Use the embedded web server for advanced configurations of your audio/video encoder settings.

What's in the box:

  • Vaddio AV Bridge Conference HD Audio/Video Encoder
  • Pair of 1-RU Rack Mount Ears
  • 18 VDC 2.75 Amp Switching Power Supply and AC Power Cord Set
  • 6' (1.83m) USB 2.0 Cable (Type-A Male to Type-B Male)
  • 4x Rubber Feet for the Bottom of Enclosure (If Not Rack Mounted)
  • Installation and User Guide
  • Vaddio 2 Year Parts and Labor Limited Warranty
