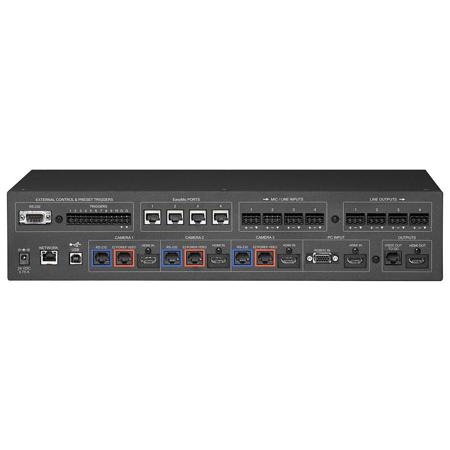

Vaddio AV Bridge MATRIX PRO System

The AV Bridge MATRIX PRO combines audio and video mixing functionality into a single appliance. It provides a simple way to add multiple cameras, microphones and other AV devices to a traditional AV room design. It then manages the complex process of mixing, switching and controlling those devices into a single USB stream.

Users get the advantage of integrating their PC-based platform and intuitive UC interface while being connected to multiple sensory inputs that provide a professional AV experience. At the same time, they also get access to cloud-based applications and a UC platform of choice for content creation and sharing, audio conferencing, video conferencing, and a multitude of other collaboration activities.

Key Technical Features (Video, Audio And Streaming)

Video Features
• 4 x 2 Video Switcher with Independent Program and Streaming Outputs
• 10-Trigger inputs for auto-switching
• Three (3) Camera inputs with built-in Quick-Connect SR Interfaces and camera control, Cat-5 video, power and control connectivity up to 100 (30.48m)
• PC Input (HDMI/DVI & RGBHV)
• One (1) HDMI (or DVI-D) Output
• One (1) HSDS Output to Quick-Connect Interfaces for remote display options
• Video processing includes PIP, Transitions, CCU & Text Overlay
• Image controls include Iris, Gain, Chroma, Auto White Balance, Red/Blue Gain, BLC, Detail and CCU scene presets on a per camera basis

Audio Features:
• 8 x 4 Audio Matrix Switcher with Cross Point Control
• Four (4) Mic or Line, Balanced or Unbalanced audio Inputs with Phantom power for condenser mics and Echo Cancellation per input channel
• Four (4) Line Level Balanced Outputs
• Four (4) EasyMic ports for EasyUSB MicPODs or Ceiling MicPODs with builtin AEC
• Audio configuration via Web Pages(integrated web server)
• Automatic Microphone Mixing
• Audio processing includes AEC and Noise Cancellation, AGC, Programmable Filters and EQ
• Individual controls per mic/line input

Audio and Video Streaming Features:
• Simultaneous USB 2.0 and IP Streaming
• USB 2.0 Video Streaming with Universal Video Class (UVC) drivers, resolution up to 720p/30, MJPEG compression or YUY2, USB 2.0
• Audio Streaming with Universal Audio Class (UAC) drivers, PCM Audio
• Handles both USB Record and Playback Channels
• IP H.264 Compression with resolutions up to 1080p/30, RTSP or HLS IP Streaming and AAC Audio Encoding(transmit)
• Up to 5 simultaneous streaming clients
• Easy to understand controls for faster implementations
