Vaddio HuddleSTATION Deluxe System, Includes Camera/Sound Bar, Huddle Dock (Controller and Dialer), 25' Cat-6 SSTP Shielded LINK Cable, Wall Mount with Integrated Cable Tray, North America

The Vaddio HuddleSTATION was designed with the small working conference room in mind. It's a complete Unified Communications (UC) solution incorporating all the audio & video functions for small group collaboration in a small meeting room. To say the HuddleSTATION is multipurpose is like calling a fish wet. This system can be used for local presentations, many PC-based UC applications (i.e. Lync, Jabber, Skype, WebEx etc), VoIP audio conferencing, voice add-on and more.

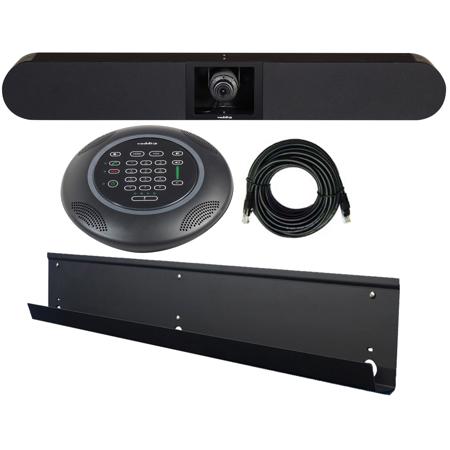

System Includes: Mic-Dock, Cam-Bar, 25' Shielded Cat-6 SSTP Link Cable and Wall Mount
• Cam-Bar features: Integrated sound bar with camera, a pair of 2-way pro audio acoustically tuned loudspeakers, professional integrated WideSHOT camera and auto-focus and Vaddio's quick-set manual pan-tilt camera adjustment system
• Mic-Dock features: Four cardioid mic elements each with it's own independent DSP featuring AEC, automatic noise reduction and AGC, 360deg. pickup pattern with 12 foot pickup range, VoIP Speakerphone with integrated dial pad, Integrated touch screen remote for zoom, PIP and 2-input source selection and PC/Tablet Docking function with USB, HDMI, VGA and Ethernet
• PC to Dock Interface Cable sold separately

The HuddleStation is made up of a table-based MicDock and a wall mounted HuddleSTATION Camera/Sound Bar. The MicDock contains the mics, the user interface and the docking connectors for the PC and UC application. Four (4) cardioid mic elements each with independent wideband AECs (acoustic echo cancellers), provides a 360deg. pickup pattern. Vaddio's SmartMic technology ensures that pristine, crystal clear audio is maintained for both local and far-end participants with hands-free operation. A capacitive-touch user interface on the MicDock provides for dialing and conference control. PC, laptop or tablet connections include HDMI or VGA (RGBHV) to locally extend the PC's display to the room monitor.

The HuddleSTATION Camera/Sound Bar incorporates a pair of bi-amped, 2-way loudspeakers, four (4) 25-Watt amplifiers and an integrated native HD camera. Like the WideSHOT, the HuddleSTATION camera has a super-wide angle lens providing 82.2deg. horizontal field of view (16:9) for even the smallest of rooms. It has a manual pan/tilt mechanism and a 3X varifocal zoom lens that further tailors the image for the small room. The HuddleSTATION includes an HDMI video output for the room monitor extending the PC's monitor when docked. A supplied single 25' (7.62m) Cat-6 SSTP shielded cable connects the HuddleSTATION and MicDock carrying power, video, audio, control and network between devices.

Simple User Interface
The intuitive MicDock contains the VoIP dialing pad, call control keys, four (4) cardioid pattern condenser mic elements each with independent wideband AECs (acoustic echo cancellers) and the docking connectors for the PC and UC application. The mics are arrayed to provide a 360deg. pickup pattern.

Superior Sound Quality
The HuddleSTATION Camera/Sound Bar integrates a pair of bi-amped 2-way speakers, which are powered by four (4) 25-watt class D power amplifiers for clean and realistic far-end audio. The integrated 2-way speakers are optimized for voice, but sound good for music and videos too.

Easy to Install
The HuddleSTATION is exceptionally easy to install. Simply run the cables, mount the Camera/Sound Bar, plug the MicDock in with the Cat-6 SSTP cable and apply power. From there, it's just connecting the PC and configuring the system with the embedded HuddleSTATION web server.
