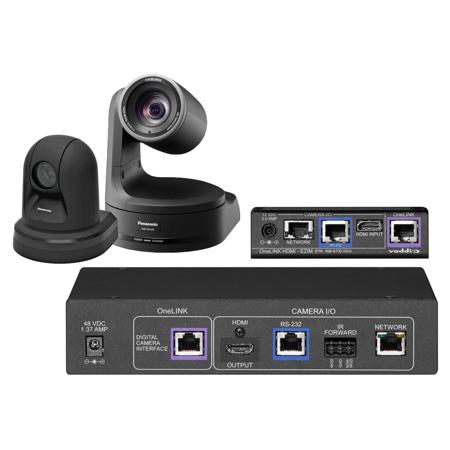

Vaddio OneLINK HDMI Extender Set for Sony & Panasonic HDMI Cameras

Vaddio's OneLINK System for Sony and Panasonic HDMI Cameras is a digital camera extension system that extends HDMI video, power, network and RS-232 control on a single Cat-5e/6 cable at distances of up to 328' (100m). Without any doubt, this new OneLINK system allows for easier, simpler and faster installations. The OneLINK system sends and regulates power to the camera, provides a bidirectional control channel for Ethernet and RS-232 and transmits/receives uncompressed HDMI video up to 1080p/60 and up to 2160p/30 for the future.

• Compatible with Panasonic AW HE-40H and AW HE-130
• Extends HDMI Video, power and Ethernet Control up to 328' (100m) on a single Cat-5e/6 cable
• Includes OneLINK HDMI Interface (head-end) and codec cables
• Includes OneLINK HDMI EZIM (camera-end) and camera cables
• Power Supply and AC Cord Set
• Camera Mount and Mounting Hardware also included (camera not included)

The system consists of the small OneLINK EZIM (EZCamera Interface Module) camera interface at the camera location and the OneLINK HDMI Interface. The EZIM provides the required camera connectivity and is mounted to the underside of the included Thin Profile Wall Mount with two 6-32 x .188" black mounting screws. All the 12" (305mm) patch cables on the camera end are provided with the OneLINK system including an HDMI cable, a power cable and two Cat-5e cables for network and RS-232.

The Thin Profile Wall Mount can be mounted directly to a 2-gang sized electrical box for conduit installations or directly to the dry wall with wall anchors. From one end to the other, the OneLINK system provides system integrators with an easy to install, simple and elegant, single cable camera extension solution, which exemplifies Vaddio's main tenet; The Art of Easy.

Supported Cameras
The OneLINK System supports the Sony SRG-120DH, SRG-300H, Panasonic AW-HE40H and AW-HE130. All the camera side cables for these cameras are included in the OneLINK kit.
