Vaddio RoboSHOT 30 HD Robotic 30x PTZ Camera for AV Bridge MATRIX PRO System, Black

SKU: VAD99910500

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Vaddio RoboSHOT 30 Specifications

  • Compatibility

    AV Bridge MATRIX PRO System

  • Image Device

    1/2.8-Type Exmor CMOS Sensor

  • Video Resolution/Frequencies

    1080p60/59.94/50/30/25, 1080i/60/59.94i/50, 720p/60/59.94/50

  • Tri-Synchronous Motion

    Concurrent PTZ motor movement and simultaneous PTZ arrival at a stored preset

  • Advanced ISP

    Vivid and accurate color reproduction with extremely fast, razor sharp automatic focus and iris routines

  • Video Aspect Ratio

    16:9 Aspect Ratio for all resolutions

  • Effective Pixels

    2.14 Million Effective pixels
    2.38 Million Total Pixels

  • Lens and Horizontal FOV

    30X Optical Zoom
    65 deg. (wide end) to 2.3 deg. (tele end), F1.6 to F4.7

  • Minimum illumination

    1.4 lx (F1.6, 50IRE), recommended illumination >100 lux and <100,000 lux

  • Minimum working distance

    10mm (wide), 1.2m (tele)

  • S/N ratio

    More than 50 dB

  • Sync system

    Internal

  • White balance

    Auto, ATW, Indoor, Outdoor, One-push, Manual (accessible through external control)

  • Gain

    Auto / Manual (0 to 28 steps - accessible through external control)

  • Back-light compensation

    On/Off (IR Remote)

  • Focusing system

    Auto Focus / Manual Focus Mode / One Push Trigger Mode / Infinity Mode / Near Limit Mode

  • Noise Reduction

    On/Off, 6 Steps, Off through 5 (accessible through external control)

  • Aperture/Detail

    16 Steps (accessible through external control)

  • Control Interface(s)

    RS-232 API: Modified VISCA Emulation (TTL signal level), Baud rate: 9600 bps and 38,400 bps, 1-Stop bit. Default to 9.6 Kb/s for Cat-5e Distance
    Telnet Serial Command API
    Internal Web page for Network Set-up, firmware updates and network management
    Vaddio IR Remote Commander

  • Pan & Tilt Angle/Speed

    Pan/Tilt Angles: +/-160 deg. , Tilt: +90 deg. , -30 deg.
    Pan/Tilt Speeds: Both Axes 0.35 deg. /sec to 120 deg. /sec

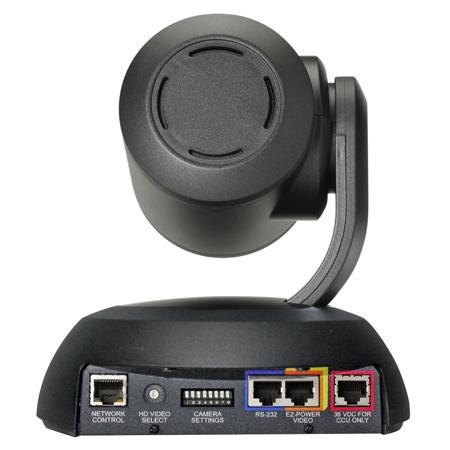

  • Rear Panel Connectors

    Network: RJ-45 with Green & Yellow LED to show connection and usage
    RS-232: RJ-45, Carries bidirectional control to and from the camera
    EZ Power Video: RJ-45 Shielded, carries power and differential video signals for the Quick-Connect Cat-5 systems

  • Rear Panel Controls

    16-Position Rotary Switch for Resolution selection
    8-Position DIP Switch for IR Frequency, Image Flip, wide mode and Reset to Default Settings

  • Power Supply

    Powered by Quick-Connect SR Interface

  • Operating/Storage Temperature

    0 to 40 deg. C (32 to 104 deg. F)

  • Operating/Storage Humidity

    20% to 80%

  • Dimensions (HxWxD)

    6.942 x 7.056 x 6.757" (17.63 x 17.92 x 17.16cm)

  • Weight

    4.85 lbs (2.20kg) Roughly 900 peanut M&Ms)

About Vaddio RoboSHOT 30

The RoboSHOT 30 HD PTZ Camera is a powerful, professional quality PTZ camera with high quality imaging, exceptional detail and marvelous color reproduction. This camera offers integrators, dealers and end users with an incredible advantage over other professional PTZ cameras available today.

The RoboSHOT 30 is perfect for medium to large rooms and provides exceptional support for applications including, House of Worship services, large auditorium A/V systems, large distance learning classrooms, live event theatres, IMAG for performances, large lecture theatres with lecture capture and more!

One of the key features of the RoboSHOT cameras is Tri-Synchronous Motion, a camera control protocol that allows all three (pan, tilt and zoom) axes to move simultaneously. The algorithm calculates the position and velocity of the smooth, direct-drive motor movements between the presets so pan, tilt and zoom arrive at the preset shot simultaneously, which allows for smooth and useable on-air camera movements.

Vaddio RoboSHOT 30 Features

  • This Vaddio camera is used only with the AV Bridge MATRIX PRO. It cannot be used as a stand-alone camera
  • 30X Optical Zoom Lens
  • Native 1080p/60 Exmor 1/2.8-Type CMOS image sensor
  • 65 deg. wide end to 2.3 deg. tele end Horizontal Field of View
  • Tri-Synchronous Motion (simultaneous 3-axis motion)
  • Built-in web server for configuration, control and remote management
  • R Remote Commander
  • Thin Profile Wall Mount (black) with mounting hardware

Key Features

  • Resolution: FHD (1920x1080)
  • Sensor Type: CMOS
  • Sensor Size: 1/2.8"
  • Optical Zoom: 30x
  • Video Interface: RJ-45
  • System Format: NTSC

What's in the box:

  • Vaddio RoboSHOT 30 HD PTZ Camera
  • Thin Profile Wall Mount with Mounting Hardware
  • IR Remote Commander
  • Quick Setup Guide
  • Vaddio 2 Year Parts and Labor Limited Warranty
