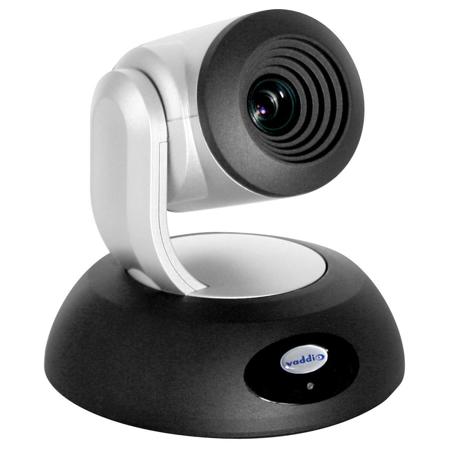

Vaddio RoboSHOT 12 Full HD HD-SDI 12x PTZ Camera, North America

SKU: VAD99930000

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What is the resolution of the RoboSHOT 12 Full HD HD-SDI 12x PTZ Camera?

The RoboSHOT 12 Full HD HD-SDI 12x PTZ Camera has a high-definition resolution of 1920x1080.

What is the zoom capability of the RoboSHOT 12 Full HD HD-SDI 12x PTZ Camera?

The RoboSHOT 12 Full HD HD-SDI 12x PTZ Camera is equipped with a 12x optical zoom lens.

What kind of motor movements does the RoboSHOT 12 Full HD HD-SDI 12x PTZ Camera offer?

The camera features a Tri-Synchronous Motion algorithm that manages smooth, direct-drive motor movements between presets, moving the camera in all three axes (pan, tilt, and zoom) at once.

Does the RoboSHOT 12 Full HD HD-SDI 12x PTZ Camera offer remote control?

Yes, the camera has a web interface that allows you to control it over the IP network using a browser, from anywhere in the world.

What are the intended uses of the RoboSHOT 12 Full HD HD-SDI 12x PTZ Camera?

This camera is perfect for video conferencing, distance learning, and telepresence applications. It can be used in conference rooms, classrooms, and small video studios.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Vaddio RoboSHOT 12 Specifications

  • Image device

    1/2.8-Type Exmor CMOS sensor

  • Effective pixels

    2.14 Million Effective pixels (2.38 Million Total Pixels)

  • Lens and horizontal FOV

    Super Wide 12X Optical Zoom, 73.0 deg. (wide) to 6.6 deg. (tele),f=3.91mm to 47.0mm, F1.8 to F3.4
    Normal 10X Optical Zoom, 67.3 deg. (wide) to 7.6 deg. (tele), f=3.8mm to 38.0mm, F1.8 to F3.4

  • Video outputs

    HD-SDI, HDMI

  • Supported resolutions

    1080p60/59.94/50/30/25, 1080i/60/59.94i/50, 720p/60/59.94/50

  • Video aspect ratio

    16:9 for all resolutions

  • Streaming

    Simultaneous IP (RTSP format with H.264 compression) up to 1080p/30

  • Minimum illumination

    1.0 lx (F1.8, 50IRE); recommended illumination 100 lux or more

  • Minimum working distance

    10mm (wide), 0.8m (tele)

  • Pan and tilt angle

    Pan: +/-160 deg., Tilt: +90 deg., -30 deg.

  • Pan and tilt speed

    Minimum: 0.35 deg./sec; maximum: 120 deg./sec

  • Vaddio Special Function

    Tri-Synchronous Motion: Concurrent PTZ motor movement, simultaneous arrival at preset
    Advanced ISP: Accurate color reproduction with fast, sharp automatic focus and iris routines

  • Network connection

    PoE+ (IEEE 802.3at), Gigabit Ethernet

  • S/N Ratio

    Greater than 50 dB

  • Sync System

    Internal

  • Control Methods

    Ethernet (web interface and Telnet); IR Remote Commander; RS-232 for external controllers.

  • Operating Temperature

    0 to 40 deg. C (32 to 104 deg. F)

  • Relative Humidity

    20% to 80%

  • Dimensions (HxWxD)

    6.94 x 7.05 x 6.75" (17.63 x 17.91 x 17.15cm)

  • Weight

    4.85 lbs (2.20kg)

About Vaddio RoboSHOT 12

The enterprise-class, high-definition RoboSHOT HD-SDI PTZ cameras offer exceptional image quality, color reproduction and detail. With simultaneous HD-SDI and HDMI digital video outputs and full HD IP streaming (H.264) capabilities, this camera offers incredible flexibility and price performance benefit over similar cameras available today. Designed for small to medium-sized meeting and training rooms, classrooms and small video studios, the RoboSHOT 12 HD-SDI camera provides incomparable support for applications such as videoconferencing, distance learning, lecture capture and telepresence.

The camera's lens, Exmor 1/2.8", 2.38 Megapixel, Full HD (native 1080p/60) high-speed, low noise CMOS image sensor and ISP are the serious magic behind the video performance characteristics, producing vivid, realistic and accurate color with extraordinarily fast, sharp and transparent automatic focus and iris routines. The RoboSHOT 12 HD-SDI lens provides a 12X optical zoom with a 73deg. horizontal field of view. The Tri-Synchronous Motion algorithm manages silky smooth, direct-drive motor movements between presets, moving the RoboSHOT camera in all three axes (pan, tilt and zoom) at once and calculating the position and velocity so pan, tilt and zoom movements finish simultaneously. Finally - no more pan/tilt, then zoom. Unlike other cameras, RoboSHOT cameras allow smooth and manageable on-air preset camera movements.

• PoE+ GB Ethernet port - Power the camera over the network or with a PoE+ mid-span power injector.
• Web interface - Control the camera over the IP network using a browser, from anywhere in the world. Perfect for remote management, network operating centers and overall IT control!
• IP streaming - Use any standards-based (H.264, RTSP format) media player to watch the IP stream.

Product Documents

User Manual

What's in the box:

  • Vaddio RoboSHOT 12 HD-SDI PTZ Camera
  • IR Remote Commander
  • 12 VDC 3.0A Switching Power Supply with AC Cord Set
  • Thin Profile Wall Mount with Mounting Hardware
  • EZCamera RS-232 Control Adapter
  • Quick Start Guide
  • Vaddio 2 Year Parts and Labor Limited Warranty
