Vaddio RoboSHOT 20 UHD Specifications

  • Outputs/protocols

    HDMI, HDBT, HD-SDI, IP (H.264)

  • Aspect ratio

    HDMI: 16:9 (all resolutions)
    IP (H.264) Streaming: 16:9, 3:2 and 4:3

  • HDMI resolutions/frame rates

    QFHD: 2160p/30/25 (3840 x 2160)
    FHD: 1080p/59.94/50/29.97/25, 1080i/59.94/50
    HD: 720p/59.94/50

  • 3Gb/s HD-SDI resolutions/frame rates

    FHD: 1080p/59.94/50/29.97/25, 1080i/59.94/50
    HD: 720p/59.94/50

  • Streaming

    Simultaneous IP (RTSP format with H.264 compression) up to 1080p/30

  • Image device

    1/2.3-Type Exmor R High-speed, Low-noise CMOS Sensor

  • Pixels

    9.03 Megapixels Total, 8.93 Effective Megapixels

  • Zoom

    12X optical zoom, 1.67X digital zoom; combined total 20X zoom

  • Minimum illumination

    3.0 lx (F1.8, 50IRE) color; recommended 100+ lux

  • Horizontal FOV

    74 deg. (wide) to 4.8 deg. (tele)

  • Pan angle and speed

    +/-160 deg. , 0.35 deg. /sec to 120 deg. /sec

  • Gain

    Auto / Manual (0 to 33 dB)

  • Min. working distance

    10 mm (wide), 1500 mm (tele)

  • Tilt angle and speed

    +90, -30 deg. , 0.35 deg. /sec to 120 deg. /sec

  • Aperture/detail

    16 Steps

  • Focusing system

    Auto Focus / Manual Focus Mode / One Push Trigger Mode

  • White balance

    Auto, ATW, Indoor, Outdoor, One-push, Manual

  • Backlight compensation

    On/off

  • Noise reduction

    6 steps

  • Sync system

    Internal

  • S/N ratio

    Over 50 dB

  • Control and management

    Vaddio IR Remote Commander, web interface (Chrome, Firefox, Safari, Internet Explorer, Microsoft Edge), Telnet, RS-232 API (modified VISCA)

  • Power

    12 VDC, 3.0 Amp power supply; LTPoE++

  • Operating temperature

    -5 to +60 deg. C (23 to 140 deg. F)

  • Operating humidity

    20% to 80% RH (non-condensing)

  • Storage temperature

    -20 to +60 deg. C (-4 to 140 deg. F)

  • Storage humidity

    20% to 95% RH (non-condensing)

  • Dimensions (HxWxD)

    7.9 x 8 x 7.7" (20.07 x 20.32 x 19.56cm)

  • Weight

    6 lbs (2.72kg)

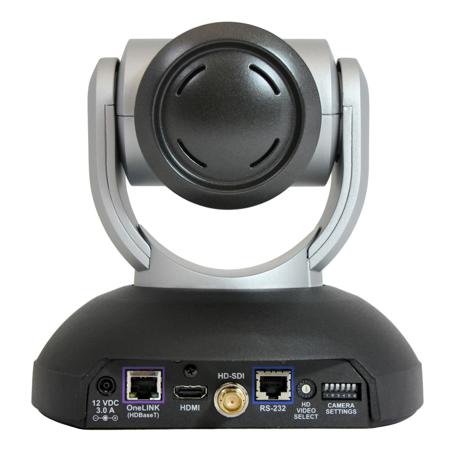

About Vaddio RoboSHOT 20 UHD

Ultra HD (4K) PTZ camera with pristine image quality and outstanding low-light performance. Enterprise-class features include administrative control and remote operation via web interface and IP streaming. Designed for use in medium to large spaces for applications such as higher education, corporate broadcast and houses of worship.

Total zoom range of 20x: 12x optical zoom lens with seamless transition to 1.67x digital zoom. 1/2.3-type, high-speed, low noise, back-illuminated CMOS sensor with 9.03 total megapixels yields native UHD 2160p/30 (3840 x 2160) video images without scaling. With a 74-degree wide horizontal field of view and built in CCU with browser configuration, the RoboSHOT 20 UHD provides great flexibility in a variety of applications including video production, live events, lecture capture and conferencing.

Vaddio RoboSHOT 20 UHD Features

  • Back-illuminated 9.03 Megapixel, ultra high definition 1/2.3-type sensor delivers native 2160p/30 (3840 x 2160) video
  • 12X optical zoom and 1.67X digital zoom; effective 20X zoom range; horizontal field of view 74deg. (wide) to 4.8deg. (tele) at 20X
  • Imaging and performance comparable to 3-chip cameras
  • Precise pan and tilt movements from 120deg. per second down to 0.35deg. per second
  • Simultaneous HDMI, HDBT, 3Gb/s HD-SDI and IP streaming outputs
  • Presenter-friendly IR remote control
  • Full administrative control from your browser via web interface
  • Integration-ready Telnet or serial RS-232 control
  • Smooth, silent direct-drive motors

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Vaddio RoboSHOT 20 UHD 9MP PTZ Camera
  • IR Remote Commander
  • 12 VDC 3.0A Switching Power Supply and AC Cord Set
  • Thin Profile Wall Mount with Mounting Hardware
  • EZCamera RS-232 Control Adapter
  • Quick Start Guide
  • Vaddio 2 Year Parts and Labor Limited Warranty
