Vaddio RoboSHOT 20 UHD HDMI/IP 20x PTZ Camera, White
See all Vaddio items

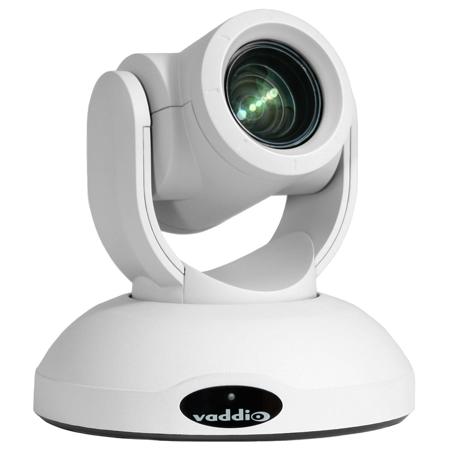

Vaddio RoboSHOT 20 UHD HDMI/IP 20x PTZ Camera, White

SKU: VAD99950000W
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What resolution does the RoboSHOT 20 UHD HDMI/IP 20x PTZ Camera capture in?

The RoboSHOT 20 UHD captures in 4K Ultra HD resolution (3840x2160), providing superior image clarity.

What is the zoom capability of the RoboSHOT 20 UHD HDMI/IP 20x PTZ Camera?

This camera offers a total zoom range of 20x, including a 12x optical zoom lens that transitions seamlessly to a 1.67x digital zoom.

Can the RoboSHOT 20 UHD HDMI/IP 20x PTZ Camera perform well in low light?

Yes, the RoboSHOT 20 UHD features a high-speed, low noise, back-illuminated CMOS sensor that ensures outstanding performance in low-light conditions.

What applications is the RoboSHOT 20 UHD HDMI/IP 20x PTZ Camera suitable for?

The RoboSHOT 20 UHD is ideal for a range of applications including higher education, corporate broadcasting, houses of worship, video production, live events, lecture capture, and conferencing.

Does the RoboSHOT 20 UHD HDMI/IP 20x PTZ Camera offer remote operation?

Yes, the camera features administrative control and remote operation via a web interface and IP streaming for versatile operation.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Vaddio RoboSHOT 20 UHD Specifications

  • Outputs/protocols

    HDMI, HDBT, HD-SDI, IP (H.264)

  • Aspect ratio

    HDMI: 16:9 (all resolutions)
    IP (H.264) Streaming: 16:9, 3:2 and 4:3

  • HDMI resolutions/frame rates

    QFHD: 2160p/30/25 (3840 x 2160)
    FHD: 1080p/59.94/50/29.97/25, 1080i/59.94/50
    HD: 720p/59.94/50

  • 3Gb/s HD-SDI resolutions/frame rates

    FHD: 1080p/59.94/50/29.97/25, 1080i/59.94/50
    HD: 720p/59.94/50

  • Streaming

    Simultaneous IP (RTSP format with H.264 compression) up to 1080p/30

  • Image device

    1/2.3-Type Exmor R High-speed, Low-noise CMOS Sensor

  • Pixels

    9.03 Megapixels Total, 8.93 Effective Megapixels

  • Zoom

    12X optical zoom, 1.67X digital zoom; combined total 20X zoom

  • Minimum illumination

    3.0 lx (F1.8, 50IRE) color; recommended 100+ lux

  • Horizontal FOV

    74 deg. (wide) to 4.8 deg. (tele)

  • Pan angle and speed

    +/-160 deg. , 0.35 deg. /sec to 120 deg. /sec

  • Gain

    Auto / Manual (0 to 33 dB)

  • Min. working distance

    10 mm (wide), 1500 mm (tele)

  • Tilt angle and speed

    +90, -30 deg. , 0.35 deg. /sec to 120 deg. /sec

  • Aperture/detail

    16 Steps

  • Focusing system

    Auto Focus / Manual Focus Mode / One Push Trigger Mode

  • White balance

    Auto, ATW, Indoor, Outdoor, One-push, Manual

  • Backlight compensation

    On/off

  • Noise reduction

    6 steps

  • Sync system

    Internal

  • S/N ratio

    Over 50 dB

  • Control and management

    Vaddio IR Remote Commander, web interface (Chrome, Firefox, Safari, Internet Explorer, Microsoft Edge), Telnet, RS-232 API (modified VISCA)

  • Power

    12 VDC, 3.0 Amp power supply; LTPoE++

  • Operating temperature

    -5 to +60 deg. C (23 to 140 deg. F)

  • Operating humidity

    20% to 80% RH (non-condensing)

  • Storage temperature

    -20 to +60 deg. C (-4 to 140 deg. F)

  • Storage humidity

    20% to 95% RH (non-condensing)

  • Dimensions (HxWxD)

    7.9 x 8 x 7.7" (20.07 x 20.32 x 19.56cm)

  • Weight

    6 lbs (2.72kg)

About Vaddio RoboSHOT 20 UHD

Explore the world of high-quality imaging with the RoboSHOT 20 UHD HDMI/IP 20x PTZ Camera in white. This advanced, professional-grade camera is designed to deliver pristine 4K Ultra HD (3840x2160) video images, surpassing the capabilities of many alternative cameras. Its superior low-light performance ensures clear, detailed imagery even in challenging lighting conditions.

The RoboSHOT 20 UHD is equipped with a 1/2.3-type, high-speed, low noise, back-illuminated CMOS sensor with 9.03 total megapixels. This innovative technology allows the camera to yield native UHD 2160p/30 video images without any need for scaling.

This durable camera is designed for use in medium to large spaces, making it an ideal choice for a range of applications including higher education, corporate broadcasting, houses of worship, video production, live events, lecture capture, and conferencing.

One of the standout features of the RoboSHOT 20 UHD is its total zoom range of 20x. This includes a 12x optical zoom lens that transitions seamlessly to a 1.67x digital zoom. This high zoom capability offers greater flexibility in framing shots and capturing distant subjects.

Additionally, the camera boasts a wide 74-degree horizontal field of view and a built-in CCU with browser configuration. These features, combined with administrative control and remote operation via a web interface and IP streaming, make the RoboSHOT 20 UHD a versatile and user-friendly choice for all your video needs.

Vaddio RoboSHOT 20 UHD Features

  • Back-illuminated 9.03 Megapixel, ultra high definition 1/2.3-type sensor delivers native 2160p/30 (3840 x 2160) video
  • 12X optical zoom and 1.67X digital zoom; effective 20X zoom range; horizontal field of view 74deg. (wide) to 4.8deg. (tele) at 20X
  • Imaging and performance comparable to 3-chip cameras
  • Precise pan and tilt movements from 120deg. per second down to 0.35deg. per second
  • Simultaneous HDMI, HDBT, 3Gb/s HD-SDI and IP streaming outputs
  • Presenter-friendly IR remote control
  • Full administrative control from your browser via web interface
  • Integration-ready Telnet or serial RS-232 control
  • Smooth, silent direct-drive motors

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • 4K Ultra HD resolution for superior image clarity in professional settings
  • 20x total zoom range with 12x optical for capturing fine details from afar
  • Low-light performance from a high-speed, low noise, back-illuminated CMOS sensor
  • Wide 74-degree field of view ideal for video conferencing and surveillance
  • Remote administrative control and IP streaming for versatile operation
  • Built-in CCU with easy browser configuration for seamless video production

What's in the box:

  • Vaddio RoboSHOT 20 UHD 9MP PTZ Camera
  • IR Remote Commander
  • 12 VDC 3.0A Switching Power Supply and AC Cord Set
  • Thin Profile Wall Mount with Mounting Hardware
  • EZCamera RS-232 Control Adapter
  • Quick Start Guide
  • Vaddio 2 Year Parts and Labor Limited Warranty
