Vaddio ConferenceSHOT 10 Specifications

  • Image Device

    1/2.8" Type Exmor CMOS sensor

  • Pan/Tilt

    Angle and Speed: +/- 170 deg., up to 90 deg./sec
    +90 deg. -30 deg., up to 90 deg./sec

  • Lens

    F = 3.8mm to 38mm, F1.8 to F3.4, 10x optical zoom, 67.0 deg. wide to 7.6 deg. tele

  • Field of View (FOV)

    Horizontal:
    Super-wide: 11x optical zoom, 74 deg. wide to 7.6 deg. tele, f = 3.8mm to 41.8mm, F1.8 to F3.4

  • Minimum Working Distance

    10mm (wide), 1.0m (tele)

  • Minimum Illumination

    Recommended: >100 lux

  • Pixels

    2.14 million (effective)

  • Aperture

    16 steps (via all remote management interfaces)

  • Gain

    Auto or manual

  • Backlight Compensation

    On or off

  • White Balance

    Auto, manual, one-push

  • Focusing System

    Auto or manual

  • Noise Reduction

    On or off

  • Sync System

    Internal

  • Signal to Noise Ratio

    Over 50dB

  • Power

    12 VDC, 3.0 A switching power supply

  • Remote Management

    Web interface (Chrome, Firefox, Safari, Internet Explorer 8 through 11), Telnet, RS-232 API (modified VISCA)

  • Outputs

    H.264, RTSP USB 3.0, UVC, YUY2

  • Video Resolution

    IP:
    1080p 30 / 25 / 15, 720p 60 / 30 / 25 / 15, 704 x 576p 60 / 30 / 25 / 15, 720 x 480p 60 / 30 / 25 / 15, 640 x 480p 60 / 30 / 25 / 15, 360p 60 / 30 / 25 / 15, 352 x 288p 60 / 30 / 25 / 15

    USB 3.0:
    1080p 30 / 15, 720p 60 / 30 / 15

    USB 2.0 and 3.0:
    960 x 540p 30 / 15, 848 x 480p 30 / 15, 360p 60 / 30 / 15, 424 x 240p 30 / 15, 320 x 240p 30 / 15, 180p 30 / 15, All USB resolutions uncompressed

  • Streaming

    IP (H.264), RTSP + USB 3.0 (UVC)
    IP and USB streams are simultaneous and can be sent at differing resolutions

  • Operating Temperature

    0 to 40 deg. C (32 to 104 deg. F)

  • Operating Humidity (Relative)

    20 to 80% non-condensing

  • Storage Temperature

    -5 to 60 deg. C (23 to 140 deg. F)

  • Storage Humidity (Relative)

    20 to 80% non-condensing

  • Dimensions (HxWxD)

    6.3 x 6.1 x 5.5" (16.00 x 15.49 x 13.97cm)

  • Weight

    3 lbs (1.36kg)

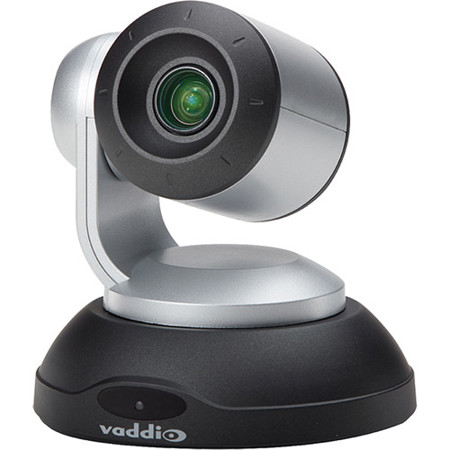

About Vaddio ConferenceSHOT 10

The Vaddio ClearSHOT 10 USB is now the Vaddio ConferenceSHOT 10 - same great product, now part of our new ConferenceSHOT Product Family. The Vaddio ConferenceSHOT 10 Camera is an Enterprise-Class, high definition PTZ conferencing camera with high quality imaging, exceptional color reproduction and truly fine detail. It's a significant step up in performance from current webcam-based technology offerings. With simultaneous and individual USB 3.0 uncompressed and IP (H.264) streaming video outputs, this camera offers integrators, dealers and end users with an impressive improvement over other USB conferencing cameras available today.

The latest generation Exmor 1/2.8", 2.38 Megapixel, Full HD (native 1080p/60) high-speed, low noise CMOS image sensor combined with the new ISP, produces vivid and realistic color with super-fast, razor sharp and transparent auto-focus and iris routines. The ConferenceSHOT 10 USB has an Ethernet port for IP (H.264) streaming and a built-in web server, which allows the user to control the camera's functions with an internal web page with any browser from anywhere in the world, over the IP network, while watching the RTSP format video stream with H.264 compression. With a 74-degree wide horizontal field-of-view and 10X optical zoom, the ConferenceSHOT 10 USB provides great flexibility in a variety of applications including small to medium-sized conference rooms and huddle rooms as well as corporate, healthcare, government and education environments.

Vaddio ConferenceSHOT 10 Features

  • Exmor 1/2.8-Type 2.14 Effective Megapixels (Native 1080p/60) high-speed, low noise CMOS image sensor
  • Built-in web server for configuration, control and remote management
  • PTZ camera for huddle rooms and small to medium conference rooms
  • 10x optical zoom, horizontal field of view of 74deg. in super-wide mode
  • Smooth, silent direct-drive motors for precise pan and tilt movements at up to 90deg. per second
  • Simultaneous uncompressed USB 3.0 and IP (H.264) streaming outputs at resolutions up to 1080p/60
  • Precise pan and tilt movements at up to 90deg. per second with smooth, silent direct-drive motors
  • Universal Video Class (UVC) drivers supported in Windows, Mac OS, and Linux operating systems, compatible with most UC conferencing applications
  • Presenter-friendly IR remote control
  • Integration-ready Telnet or serial RS-232 control
  • Full administrative control via web interface; manage remotely while monitoring the stream separately

Product Documents

User Manual

What's in the box:

  • Vaddio ConferenceSHOT 10 1080p Enterprise-Class PTZ Conferencing Camera
  • IR Remote Commander
  • 12 VDC 3.0A Switching Power Supply and AC Cord Set
  • Thin Profile Wall Mount with Mounting Hardware
  • EZCamera Control Adapter
  • 6' USB 3.0 Type-A to Type-B Cable
  • Quick Start Guide
  • Vaddio 2 Year Parts and Labor Limited Warranty
