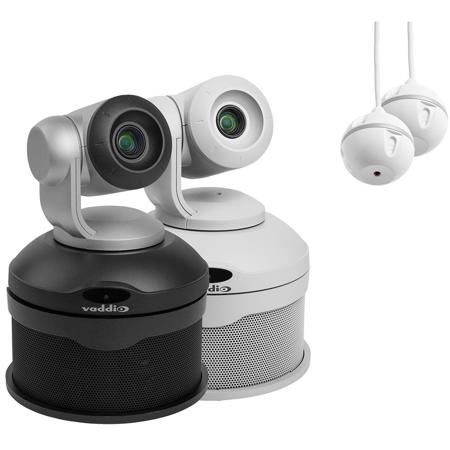

Vaddio ConferenceSHOT AV Camera Bundle - Integrator 2, Includes ConferenceSHOT AV Speaker with Cable, 2x EasyMic Ceiling MicPOD, North America, White

ConferenceSHOT AV Bundle - Integrator 1
Ideal for medium sized videoconferencing rooms, the ConferenceSHOT AV Integrator 2 Bundle includes one ConferenceSHOT AV, one ConferenceSHOT AV Speaker and two EasyMIC Ceiling MicPODs.

• Ideal for medium conference spaces
• Includes ConferenceSHOT AV, ConferenceSHOT Speaker and Two EasyMIC Ceiling MicPODs
• USB 3.0 connection
• Enterprise class - remote configuration, management and updates
• HD PTZ Camera with 10X zoom, 74deg. Wide Horizontal FOV supporting up to 1080p/60 resolution
• Two ceiling MicPODs with 360deg. coverage and independent echo cancellation and equalization
• Powered 20-watt speaker
• Telnet interface available for third party control
• Available in black/silver or white

Powerful
ConferenceSHOT AV integrates a 10X zoom PTZ camera and audio conferencing mixer into a single USB 3.0 device, so you can easily connect microphone and external speaker to the camera. The Integrator 1 Bundle is easy to install and allows simple plug and play functionality with all major UCC soft clients such as Skype for Business, WebEx and Google.

Simple
ConferenceSHOT AV is UVC compliant. No external drivers need to be installed on your PC - just plug and play. The versatile system supports customized AV designs with third-party equipment or can be deployed as standalone solution.

Enterprise Class
ConferenceSHOT AV allows for remote monitoring, management and control of a distributed camera network. IP-accessible and a built-in Web server enables both browser control and IP-live preview and setup from PCs, Macs and mobile devices including iPhone, iPad and Android devices. This USB-based solution makes it easy for your organization to collaborate using Skype for Business, WebEx, Zoom, BlueJeans, Google Hangouts, Vidyo and other leading UC services.

ConferenceSHOT AV turns your BYOD device into a small space UC system with professional PTZ camera quality and full room audio performance. It's a significant step up in performance from the current webcam based technology offerings.

ConferenceSHOT AV Camera

Elevate the Huddle Room Experience
Ideal for huddle rooms and small to medium conference rooms, the Vaddio ConferenceSHOT AV brings video conferencing to a new level with sharp video and powerful sound. ConferenceSHOT AV is a PTZ 10x zoom camera with audio inputs and outputs that let you connect a speaker and two Vaddio microphones. The USB 3.0-based ConferenceSHOT AV supports any collaboration application enabling UC soft clients, such as Skype for Business, WebEx, Google and others, to become a group collaboration application. ConferenceSHOT is UVC compliant, requiring no drivers to be installed on your PC - just plug and play.

• UCC system with PTZ camera, microphone inputs and speaker output
• USB 3.0 connection to leading web services: Skype For Business, Zoom, Webex, Google Hangouts, BlueJeans and others
• Enterprise support through built-in web server and IP video (H.264) streaming for remote configuration, management and updates
• Supports up to two Vaddio Table or Ceiling MicPODs (or one of each)
• Line level output with power supporting the ConferenceSHOT Speaker - or integrate into existing audio infrastructure
• Full system bundles available for easy ordering, installation and configuration
• Integrated HD camera and audio system ideal for huddle rooms and small to medium conference rooms
• Audio output for matching speaker - or integrate into existing audio infrastructure
• 2.14 Megapixel effective, native 1080p/60 HD image sensor
• 10x optical zoom, horizontal field of view of 74deg. in super-wide mode
• Precise pan and tilt movements at up to 90deg. per second with smooth, silent direct-drive motors
• Universal Video Class (UVC) and Universal Audio Class (UAC) drivers supported in Windows, Mac OS and Linux operating systems, compatible with most UC conferencing applications
• Presenter-friendly IR remote control
• Integration-ready Telnet control
• Enterprise-class IT support with full web controls for remote management

With a 74-degree wide horizontal field-of-view and 10x optical zoom with 11x zoom in super-wide mode, the ConferenceSHOT AV is ideal for small meeting spaces in corporate, healthcare, government and education environments. The high-definition ConferenceSHOT AV provides amazing high quality imaging, exceptional color reproduction and truly fine detail.

ConferenceSHOT AV incorporates the Vaddio Remote Management system - providing remote monitoring, management and control of a distributed camera network. IP-accessible and a built-in Web server enables both browser control and IP-live preview and setup from PCs, Macs and mobile devices including iPhone, iPad and Android devices. Vaddio offers a variety of ConferenceSHOT AV bundles for small meeting spaces. ConferenceSHOT AV Speakers are sold separately or in system bundles. For smaller rooms, the ConferenceSHOT AV with a single EasyUSB table MicPOD is ideal; for larger rooms connected with the Vaddio powered loudspeaker provide complete room coverage.

Back of the Camera
• Network PoE+ - 10/100/1000 Ethernet port; IP streaming and control via web interface
• USB 3.0 - Type B media device connector; streams uncompressed UVC standard video and UAC standard audio
• EasyMIC ports - Connect up to two Vaddio EasyMIC microphones
• Audio output - Line level differential audio and 12 VDC power output to the amplified speaker or other audio infrastructure

ConferenceSHOT AV Speaker
Add exceptional sound quality to your videoconferencing experience with the ConferenceSHOT Speaker. It is designed for use with the ConferenceSHOT AV Enterprise-Class Conferencing System and offers dual two-inch (50.8 mm) full range drivers with 20W integrated power amp. Cable and mounting hardware is included for integrated ConferenceSHOT AV installation.

• Exceptional sound quality for small meeting rooms
• Dual 2" (50.8mm) full range drivers
• 20 watt integrated power amp
• Cable and mounting included for integrated ConferenceSHOT AV installation

EasyMic Ceiling MicPOD
EasyMic Ceiling MicPOD microphones deliver professional audio quality into your PC system. Each MicPOD delivers the performance of three microphones built into a single pendant hanging enclosure. With ultra wide 360-degree pickup coverage, one MicPOD provides excellent coverage for an average size meeting room table. For larger tables, a second MicPOD provides additional coverage.

• Uses three unidirectional cardioid elements
• 2.5-inch array head with mute indicator
• 36-inch adjustable drop cable
• DSP in Interface Box Provides three AEC channels
• Optimized for ceiling acoustics
• Available in black or white

Each microphone element is equipped with integrated echo cancelation and Digital Signal Processing, including compression, equalization, filtering and AGC or automatic gain control. Because of the plug-and-play design, installation is as simple as connecting Cat-5 cable between the EasyUSB Mixer/Amp and the EasyMic microphones. Power, control and audio are all incorporated into the single cable.
