Blackmagic Design Decklink HD Pro Dual Link HD and SD Video Capture PCI-X Card, 4:4:4 and Down Conversion, NTSC/PAL, Mac/Win

SKU: VDBMDLHDPD

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Specification about this item

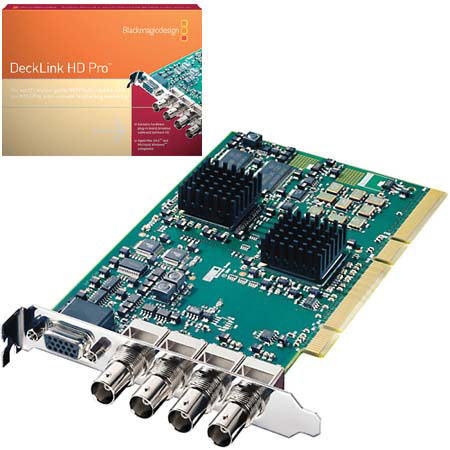

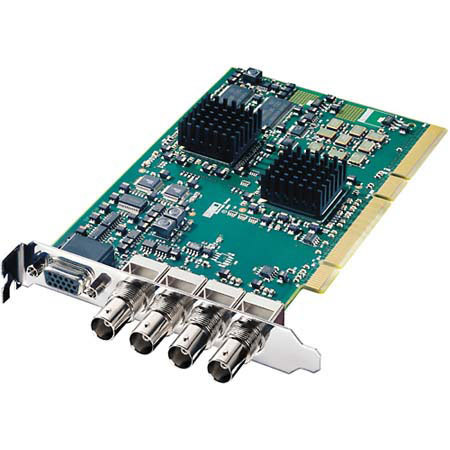

About Blackmagic Design Decklink HD Pro Dual Link HD and SD Video Capture PCI-X Card, 4:4:4 and Down Conversion, NTSC/PAL, Mac/Win

The Blackmagic DeckLink HD Pro (Dual-Link) is the PCI-X 133 MHz 4:4:4 HDTV Card featuring 14-bit RGB/YUV analog monitoring. With built-in real-time effects and filters, RS-422 serial control, Genlock and SPDIF audio outputs, this card will supercharge any editing suite by providing excellent low-cost monitoring and off-deck work options.

Pristine 12-bit 4:4:4 HDTV color resolution is achieved via the "Dual Link" which incorporates 2 SDI channels to carry the extra color information. The DeckLink HD Pro SDI channels switch automatically between HD and SD modes and is fully compatible with the new Sony SR-based decks.

What's in the box:

  • Blackmagic Design DeckLink HD Pro (Dual-Link) PCI-X Card
  • AV Breakout Cable Set
  • Installation Disc
  • Deck Control Software
  • Disk Speed Test Software
  • LiveKey
  • FrameLink and Blackmagic Driver
  • Blackmagic Design Warranty
