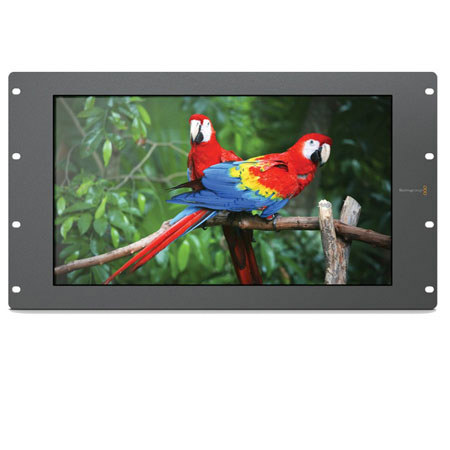

Blackmagic Design SmartView HD 17 inch Rackmount Monitor, Ethernet Control, USB 2.0

SKU: VDBMSVHD

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Blackmagic Design SmartView HD 17in Rackmount Moni Specifications

  • SDI Video Input

    Switchable between SD, HD and 3 GB/s SDI. Reclocked loop through output

  • Multi Rate Support

    Auto Detection of 2K, HD or standard definition inputs

  • Updates and Configuration

    Via USB 2.0 high speed (480 Mb/s

  • Ethernet

    10/100 BaseT with loop though

  • Tally

    9-pin D connector

  • SDI Format Support

    525i59.94, 625i50, 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080PsF23.98,1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080p23.98, 1080p24, 1080p25, 1080p29.97,1080p30, 1080p50, 1080p59.94, 1080p60, 2048x1080p/23.98, 2048x1080p/24, 2048x1080p/25,2048x1080PsF/23.98, 2048x1080PsF/24, 2048x1080PsF/25, 2048x1556PsF/23.98, 2048x1556PsF/24,2048x1556PsF/25

  • SDI Compliance

    SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M and SMPTE 425M

  • SDI Color Space

    REC 601, REC 709

  • SDI Auto Switching

    Automatically selects between SD, HD and 3 Gb/s SDI

  • Video Sampling

    4:2:2 and 4:4:4

  • Color Precision

    6-bit

  • Software Control

    Mac OS X and Windows

  • Settings Control

    Via USB or Ethernet

  • Rack Height

    6 Rack Units

  • Displays

    1

  • Display Size

    17.3" diagonal

  • Display Element

    TFT Active Matrix LCD

  • Display Resolution

    1920 x 1080 pixels

  • Response

    12ms

  • Contrast Ratio

    Typically 650:1

  • Color Depth

    262,144 Colors

  • Display Orientation

    Displays can rotate upside down for optimum viewing angle

  • Firmware Upgrade

    Via included firmware updater software

  • Power Supply

    12V universal power supply included with international socket adapters for all countries

  • Power Consumption

    20 Watts

  • Operational Voltage Range

    12V - 15V

  • UPC Code

    9338716001433

About Blackmagic Design SmartView HD 17in Rackmount Moni

Blackmagic Design SmartView HD features an amazing 17" LCD screen that lets you monitor SD, HD and 3Gb/s SDI video in full resolution HD. Just as impressive is its ultra slim, 6RU rack mountable design. Only an inch thick, it's the perfect size for all your SDI monitoring needs. What's more, SmartView HD can be conveniently adjusted from your computer via Ethernet.

Blackmagic Design SmartView HD 17in Rackmount Moni Features

  • Large 17 inch LCD display in a 6 rack unit size chassis, less than 1 inch thick
  • SDI/HD-SDI/3G-SDI input with re-clocked loop outputs
  • Ethernet input with loop output for connecting to computers for central adjustments
  • Tally input allows red, green or blue tally indication
  • Control software panel included free for Windows and Mac OS X
  • Ideal for use in broadcast, post production and camera monitoring for switchers
