About Kramer Electronics 705XL

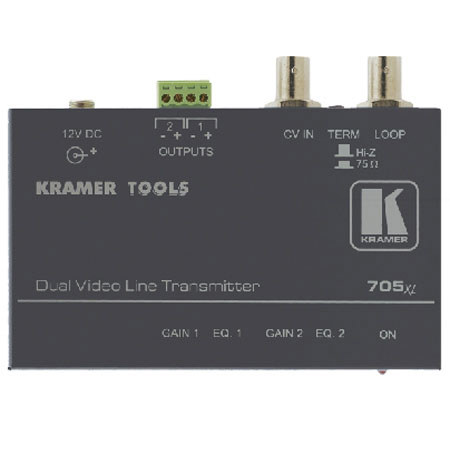

The Comprehensive/Kramer Electronics 705XL is a twisted pair video line transmitter; it accepts a composite video signal on a BNC connector and outputs the same signal on a Cat-5 cable. Industrial Color Signal An industrial color signal can be transmitted up to 1000 meters over the twisted pair Cat-5 line. Broadcast Quality A broadcast-quality signal featuring 12 MHz bandwidth can be transmitted up to 300 meters. Cable Compensation This device provides cable compensation adjustments; gain and EQ can be adjusted to the user's parameters. Dual Outputs Dual outputs allow the signal to flow to two different receiver locations.

Kramer Electronics 705XL Features

  • Max. Data Rate - 3Gbps
  • Inputs - 1 video & 4 AES/3id
  • Outputs - 1 video & 4 AES/3id
  • Looping Video Input
  • Group Select - Selects the group that contains the channel pair to embed or de-embed
  • Multi-Standard Operation - SDI (SMPTE 259M and SMPTE 344M), HD-SDI (SMPTE 292M) and 3G HD-SDI (SMPTE 424M)
  • Kramer Equalization & re-Klocking Technology - Rebuilds the digital signal to travel longer distances
  • Status Indicators - Audio group detect, embed/de-embed group select and SD/HD lock
  • Desktop Size - Compact size. 2 units can be rack mounted side-by-side in a 1U rack space with the optional RK-1 adapter

What's in the box:

  • Kramer Electronics 705XL Composite Video over Twisted Pair Branching Transmitter
  • AC Adapter
  • Kramer Electronics Warranty
