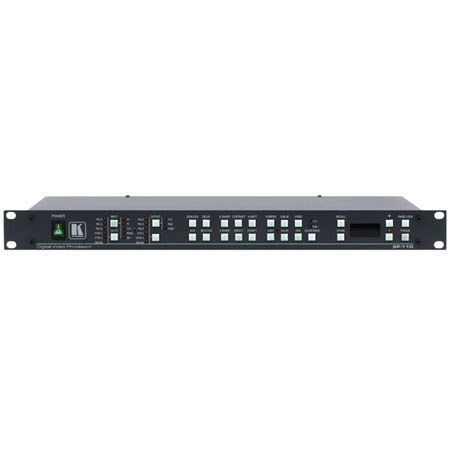

Kramer Electronics Kramer SP-11D Multi-Format Analog & Digital Video Processor/ProcAmp/TBC/Format & Standards Converter
SKU: VDKRSP11D
This item is no longer available.
Share:
Overview
Compare
Learn
Specs
Protection
About Kramer Electronics SP-11D
The Kramer SP-11D is a broadcast quality video processor that functions as a ProcAmp, TBC, format converter and standards converter for composite video, S-Video (Y/C), RGB/component video (YUV or RGBS) and SDI video signals. The original and processed image can be viewed simultaneously with the split screen output enabled.
Kramer Electronics SP-11D Features
- Bandwidth - 5MHz (-0.5dB)
- Multi-Format Capability - Selected input is simultaneously output as composite video, s-Video, component video (YUV or RGBS) and SDI
- Multi-Standard - NTSC (3.58.4.43), PAL (B/D/G/H/I/M/N) & SECAM
- Standards Conversion - Any input format and standard can be converted to any output format and standard
- ProcAmp Control - Contrast, brightness, H/V sharpness, level/gain (R, G, B, R-Y & B-Y)
- Time Base Corrector
- Screen Splitter - Simultaneous display of original video and processed video on a single screen (adjustable)
- Timing Control - Video delay, H/V delay & SCH phase
- Switching Synchronization - Synchronize either to external reference or internal genlock sync generator
- Looping Sync Input
- Selectable Sync Signal Termination
- Resolution - 10 bits
- Memory Locations - Store 15 multiple switches as presets
- Control - Front Panel and RS-232
- Front Panel Lockout
- Standard 19" Rack Mount Size - 1U
