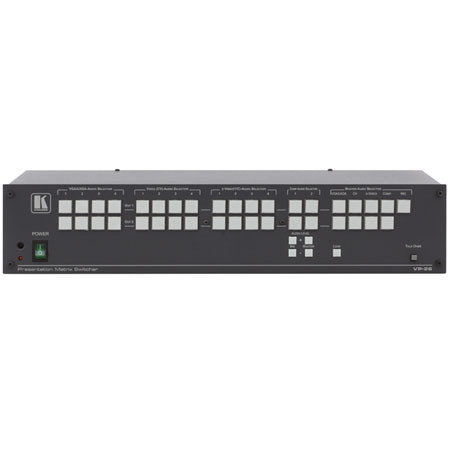

Kramer VP26 14-Input Audio Presentation Switcher

Kramer Electronics Kramer VP-26 14-Input Multi-Format Presentation Matrix Switcher with Balanced Stereo Audio

SKU: VDKRVP26
Be the first to review this item

This item is no longer available.

Overview
Compare
Learn
Specs
Protection

Reviews about this item

Review Summary

Kramer Electronics VP-26 Specifications

Related Articles & Videos

About Kramer Electronics VP-26

The Kramer VP-26 is a 4x2 composite or SDI video, a 4x2 s-Video (Y/C), a 2x2 component (YUV) and 4x2 computer graphics video matrix switcher, each with balanced stereo audio. It is designed for a wide variety of presentation and multimedia applications.

Kramer Electronics VP-26 Features

  • High Bandwidth - 300MHz (-3dB) computer graphics video, 380MHz (-3dB) component (YUV) video, 320MHz (-3dB) s-Video (Y), 420MHz (-3dB) composite video and CAT 5 up to UXGA
  • Computer Graphics Outputs - 15-pin HD and CAT 5 (VGA 2 OUT) up to 100m (> 320ft)
  • HDTV Compatible
  • Audio Level (Gain) Controls for Each Output
  • Microphone Input Level Control
  • Master Audio Output - Input selectable
  • Talk-Over Button - Microphone input signal mutes the line audio output when a microphone detects sound
  • Built-in Audio Amplifier - 5W RMS per channel with speaker output connectors
  • Flexible Control Options - Front panel, IR & RS-485, RS-232 (K-Router Windows-based Kramer software is included) & Ethernet
  • Front Panel Lockout
  • Worldwide Power Supply - 100-240V AC
  • Standard 19" Rack Mount Size - 2U. Rack "ears" included

What's in the box:

  • Kramer VP-26 14-Input Presentation Matrix Switcher
  • Power Cord
  • Null-Modem Adapter
  • Windows-Based Kramer Control Software
  • Windows-Based Ethernet Configuration Manager and Virtual Serial Port Manager
  • Infrared Remote Control Transmitter
  • Kramer 7 Years Limited Warranty
