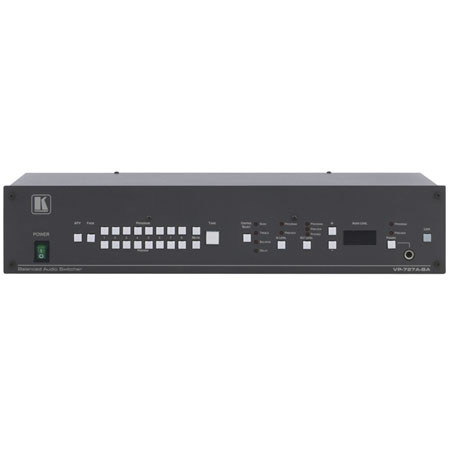

Kramer Electronics Kramer VP-727A-BA 8x2 Balanced Audio Matrix Switcher
SKU: VDKRVP727ABA
This item is no longer available.
Share:
Overview
Compare
Specs
Protection
About Kramer Electronics VP-727A-BA
The Kramer VP-727A-BA is a high-performance audio matrix switcher for balanced stereo audio signals on XLR connectors. The unit switches balanced stereo audio to the selected preview and program outputs.
Kramer Electronics VP-727A-BA Features
- Standalone or VP-727(xl) Companion Switcher
- Inputs - 8 balanced stereo audio on XLR F connectors
- Outputs - 1 preview output on dual XLR (balanced stereo audio) connectors and 2 program outputs on dual XLR (balanced stereo audio) connectors and a single RCA (S/PDIF) connector
- Headphone Output - Program or preview (selectable)
- Level Control - Each input and output
- Take Button - For executing preview to program switching (with the option to either CUT or FADE (mix) between the audio sources)
- Front Panel Lockout
- Preview & Program Mute Buttons
- Audio-Follow-Video - When connected to the VP-727(xl)
- ProcAmp Controls - Base, treble, balance & delay (per input)
- Flexible Control - Front panel, RS-232 and RS-485 (to connect to VP-727(xl) and VP-727T T-Bar controller)
- Worldwide Power Supply - 100-240V AC
- Standard 19" Rack Mount Size - 2U. Rack "ears" included
