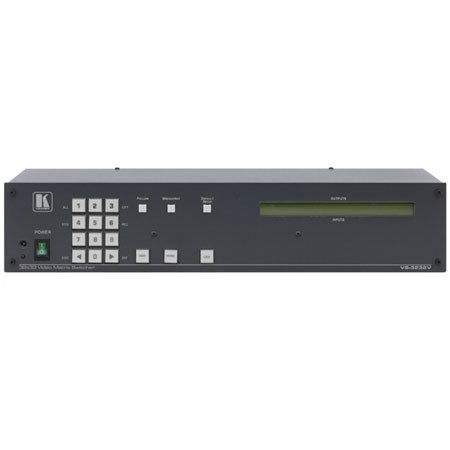

Kramer VS3232V 32x32 Composite Video Matrix Switch

Kramer Electronics Kramer VS-3232V 32x32 Composite Video Matrix Switcher with AC Coupling

SKU: VDKRVS3232V
Be the first to review this item

This item is no longer available.

Overview
Compare
Learn
Specs
Protection

Reviews about this item

Review Summary

Kramer Electronics VS-3232V Specifications

Related Articles & Videos

About Kramer Electronics VS-3232V

The Kramer VS-3232V is a high-performance 32x32 matrix switcher for composite video signals. It can route any or all inputs to any or all outputs simultaneously.

Kramer Electronics VS-3232V Features

  • Bandwidth - 300MHz (VS-3232V) & 500MHz (VS-3232Vxl), fully loaded (-3dB)
  • Three Sync Options for Genlock Glitch - Free Switching - Genlock external sync input, input 1, external system sync via RS-485 (from another compatible switcher)
  • Multiple Memory Locations - Store multiple switches as presets (salvos) to recall and execute as needed
  • Flexible Control Options - Front panel. Remote control via RS-232 (K-Router Windows-based software is included), RS-485, Ethernet and IR remote (included)
  • Communication Protocols - Kramer 2000 and Sierra ASCII
  • AC Coupling
  • Worldwide Power Supply - 100-240V AC
  • Standard 19" Rack Mount Size - 2U, rack "ears" included

What's in the box:

  • Kramer VS-3232V 32x32 Composite Video Matrix Switcher
  • Power Cord
  • Null-Modem Adapter
  • Windows-Based Kramer Control Software
  • Windows-Based Ethernet Configuration Manager and Virtual Serial Port Manager
  • Infrared Remote Control Transmitter
  • Kramer 7 Years Limited Warranty
