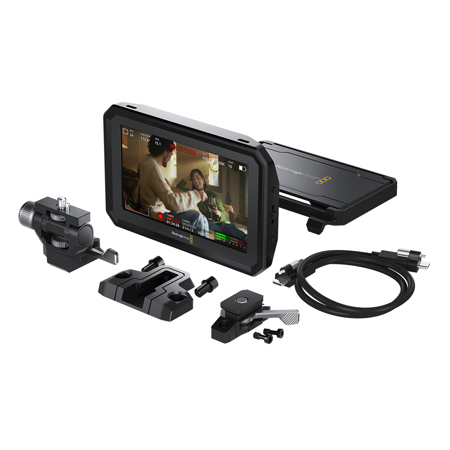

Used Blackmagic Design PYXIS 5" Full HD Touchscreen LCD HDR Monitor Kit

SKU: US1959979 MFR: CINEURSABB/AMKIT
Earn VIP Reward Points

Key Features

  • Experience Full HD clarity on the 5" LCD touchscreen for precise focus & exposure.
  • Use the Blackmagic PYXIS for on-camera monitoring with customizable function buttons.
  • Enjoy versatile mounting options using the included swivel & fixed mounting brackets.
  • Get accurate colors with HDR support, perfect for professional video production work.
  • Power via USB-C; this monitor is ideal for on-the-go shooting with Blackmagic cameras.
  • Control camera settings directly from the monitor for streamlined video workflows.
See More Product Details

INCLUDES FREE WARRANTY

  • This used item comes with a free 1-year warranty. ?
Overview
Compare
Learn
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

2025-04-12T22:18:26

Rated 4 out of 5

blackmagic pyxis monitor

its is necessary and better than rolling with an SDI monitor to prevent any damage to your SDI ports if you forget to follow protocol

EDWIN C.

2025-04-08T09:51:02

Rated 5 out of 5

No brainer

Essential buy! Sure you can use other monitors and there are better ones, but for the price, compatibility and ease of use it can't be beat.

Anthony V.

Blackmagic Design PYXIS Monitor Specifications

Connections

Connections

Jump to...
  • USB-C with Locking Connector

    Video, power, data and software updates

    5"" 1080 High Brightness LCD Capacitive Touchscreen
    USB-C Video In, Power In and Data In/Out with Locking Screw
    M4 Mounting Points for Blackmagic PYXIS Monitor Mounts
    Sunshade Clip on Points
    1/4""-20 Mounting Point with ARRI Locating Pin Holes
    Assignable Function Buttons

Features

Jump to...
  • Display Size

    5" (12.7cm)

  • Display Resolution

    Full HD 1920 x 1080

  • Display Type

    LCD capacitive touchscreen

  • Display Brightness

    1500 nits

  • Frame Rates

    Up to 60fps

  • Tally

    Rear facing LED tally light

  • Accelerometer

    Automatically rotates image when monitor mounted upside down

Control

Jump to...
  • On Screen Controls

    Tap screen to control Monitor Overlays, Frame Rate, Shutter, Iris, Timecode, ISO, White Balance, Tint, Power, Record Start/Stop, Media, Audio, Focus Zoom, Digital Slate and camera menus

  • Button Controls

    Includes F1, F2, F3 assignable function buttons to recall preset parameters or toggle functions

  • Function Button Presets

    FPS: Preset Value
    Iris: Preset Value
    WB: Preset Value
    ISO: Preset Value
    Shutter: Preset Value

  • Function Button Toggle

    Clean Feed
    Status Text
    Display LUT
    Frame Guides
    Focus Assist
    False Color
    Zebra
    Grid
    Safe Area Guide
    Off Speed Rec
    Focus Zoom
    Focus
    Record
    Auto White Balance
    Color Bars
    Playback
    False Color + Zebra
    OIS
    Stream
    Still

Mounting

Jump to...
  • Mounting Points

    1 x 1/4-20 bottom mounting point with ARRI locating pin pattern
    2 x M4 bottom mounting points
    1 x 1/4-20 side mounting point with ARRI locating pin pattern
    2 x M4 side mounting points

  • Mounting Brackets

    Blackmagic PYXIS Monitor Swivel Mount - included in Kit
    Blackmagic PYXIS Monitor Fixed Mount - included in Kit
    Blackmagic PYXIS Monitor Dovetail Shoe - included in Kit

Compatible Cameras

Jump to...
  • Compatible Cameras

    Blackmagic PYXIS 6K
    Blackmagic PYXIS 6K PL
    Blackmagic PYXIS 6K EF
    Blackmagic URSA Cine 12K LF
    Blackmagic URSA Cine 17K 65

Operating Systems

Jump to...
  • Operating Systems

    Mac 13.0 Ventura, Mac 14.0 Sonoma or later
    Windows 10 and 11

Power Requirements

Jump to...
  • Power Requirements

    Powered over USB-C

Environmental Specifications

Jump to...
  • Operating Temperature

    32 Degree to 104 Degree F (0 Degree to 40 Degree C)

  • Storage Temperature

    -4 Degree to 140 Degree F (-20 Degree to 60 Degree C)

  • Relative Humidity

    0% to 90% non-condensing

Physical

Jump to...
  • Dimensions

    5.61 x 3.62 x 1.18" (14.25 x 9.19 x 3cm)

  • Weight

    7.37 oz (208.2g)

Related Articles & Videos

Blackmagic Design URSA Cine 17K 65 Camera

Blackmagic Design URSA Cine 17K 65 Camera

The attendees at IBC 2024 got a huge treat when Blackmagic Design presented the URSA Cine 17K 65 Cinema Camera. Building on the URSA Mini Pro 12k, the URSA Cine brings powerful new features and real-time editing.
Read more

About Blackmagic Design PYXIS 5" Full HD Touchscreen LCD HDR Monitor Kit

FEATURED REVIEWS

No brainer

By Anthony V.

Essential buy! Sure you can use other monitors and there are better ones, but for the price, compatibility and ease of use it can't be beat.

While the Blackmagic Design PYXIS 5" Full HD Touchscreen LCD HDR Monitor Kit is a versatile and essential tool for filmmakers and videographers, its standout feature is the comprehensive camera control it offers. This 5-inch HDR touchscreen monitor is designed to be mounted almost anywhere, providing flexibility and convenience on set. The kit includes the monitor, a foldable sunshade, a locking USB cable, and PYXIS Mounts, which are compatible with Blackmagic PYXIS and Blackmagic URSA Cine cameras. The innovative dovetail design of the PYXIS Mounts allows for quick attachment and removal, enabling seamless repositioning without the need for tools.

The Blackmagic PYXIS Monitor's large 5-inch LCD touchscreen serves as an excellent viewfinder, enhancing focus and framing capabilities. It can also function as an assist station, allowing crew members to frame and monitor shots from various positions on set. With a bright 1500 nit display, this monitor ensures clear visibility even in direct sunlight. The included removable sunshade offers additional protection and convenience, folding up to safeguard the monitor during transport.

Constructed with a robust machined metal design, the Blackmagic PYXIS Monitor is built for professional use, perfectly complementing the industrial aesthetics of Blackmagic PYXIS and Blackmagic URSA Cine cameras. The monitor features a bright tally light visible from a distance, along with three customizable buttons for quick access to essential functions like zebra, focus assist, and false color. These buttons are strategically designed for easy tactile location, even when operating the monitor from the front.

Setting up the Blackmagic PYXIS Monitor is straightforward, as it connects to the camera via a single USB-C cable, which provides video, power, and camera control. The locking screws on the USB cable ensure a secure connection. The HDR touchscreen facilitates full control over the camera's features, transforming the monitor into an extension of the camera itself. Users can navigate all Blackmagic PYXIS menus and settings directly from the monitor, including metadata settings and digital slate information. Additionally, custom 3D LUTs can be loaded for a high-end cinema workflow.

The Blackmagic PYXIS Monitor offers multiple mounting options, compatible with any 1/4" mounts and industry-standard 1/4" mount locating pins. This versatility allows it to be used with Blackmagic PYXIS cameras rigged with rails, cages, and other accessories. The single USB connection also enables off-camera mounting on accessories like cranes or gimbals, maintaining full monitoring and camera control even when the camera is out of reach.

For precision mounting, the Blackmagic PYXIS Monitor is available with mounts specifically designed for Blackmagic PYXIS and URSA Cine cameras. The compact, high-end design of the PYXIS Monitor mount ensures the monitor remains close to the camera. Its two-part design with a dovetail allows for quick attachment and removal, facilitating easy positioning without tools. When mounted, the monitor can be rotated 180 degrees for use as a presenter monitor.

The Blackmagic PYXIS Monitor seamlessly integrates with Blackmagic URSA Cine, transforming into a large screen viewfinder. The URSA Cine supports the same USB-C connection, providing video, power, and camera control through a single cable. The mounting hardware is tailored for URSA Cine, allowing attachment to the Blackmagic URSA Cine Handle or use as a large EVF with the same mounting hardware as the URSA Cine EVF.

Blackmagic Design PYXIS 5" Full HD Touchscreen LCD HDR Monitor Kit Features

  • 5" HDR touchscreen monitor with full camera control
  • Multiple mounting points on top and bottom
  • All video, power and camera control via a single USB-C connection
  • Removable sunshade for improved visibility
  • Built in tally light
  • 3 user assignable buttons for quick access to functions
  • Built in accelerometer for image orientation
