Used Red Digital Cinema DSMC2 RED Touch 7.0" LCD, Aluminium

SKU: US1960596 MFR: 730-0024
Earn VIP Reward Points

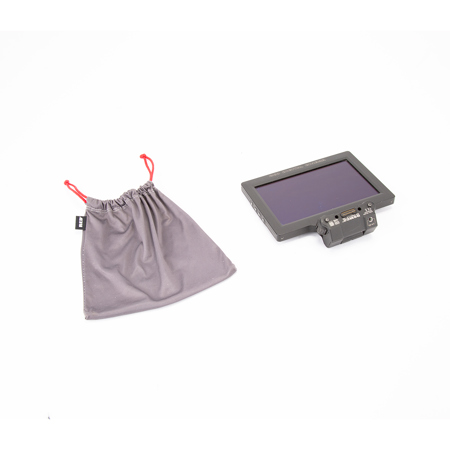

What`s in the box:

  • DSMC2 RED Touch 7.0" LCD
  • RED Microfiber Bag (X-Large)
See more

INCLUDES FREE WARRANTY

  • This used item comes with a free 180-day warranty. ?
Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

2018-04-11T10:18:27

Rated 5 out of 5

Great Buy!!

Works great and is a great asset to your Red Camera. I use it on my Red Epic-W.

Jarrod M.

2017-11-06T08:14:33

Rated 5 out of 5

Very nice

Way better then the 4.7 inch.

brad h.

RED Digital Cinema DSMC2 RED Touch 7.0" LCD Specifications

  • Material

    Aluminum

  • Resolution

    1920 x 1136

  • Pixel Density

    323 pixels per inch (ppi)

  • Refresh Rate

    60 Hz

  • Response Time

    23 ms (black to white)

  • Contrast

    1000:1

  • Brightness

    350 cd/m square

  • Color Depth

    8-bit RGB, 4:4:4 progressive scan (16.7 million colors)

  • Colors

    70% NTSC

  • Viewing Angle

    +/- 85 Degree all axes

  • Display Orientation

    Landscape, 180 Degree rotation

  • Touch

    Projected Capacitive (PCAP), multi-touch

  • Range Of Motion

    +/- 180 Degree rotation, +/- 90 Degree tilt

  • Brain Connection

    Power and Communication via DSMC2 LCD/EVF pogo connector (26-Pin)

  • Mounting

    2x M4 captive mounting screws, spring loaded, with quick-release thumb knobs

  • Arm Mounting

    1/4-20 mounting hole in base

  • Hood Mounting

    M3 x 0.5 x 5 mm (max depth)

  • Buttons

    Up, Down, User 1, User 2

  • Power Consumption

    5.5 W (typical)

  • Operating Temperature

    0 Degree C to 40 Degree C (32 Degree F to 104 Degree F)

  • Storage Temperature

    -20 Degree C to 50 Degree C (-4 Degree F to 122 Degree F)

  • Operating Humidity

    0% to 85%, non-condensing

  • Storage Humidity

    0% to 85%, non-condensing

  • Compatibility

    WEAPON 8K S35
    WEAPON 6K
    EPIC-W
    SCARLET-W
    RAVEN
    EPIC/SCARLET DRAGON
    EPIC/SCARLET M-X

  • Dimensions (H [w/Hinge] x W x D)

    7.15 x 7.28 x 0.51" (181.5 x 185 x 13 mm)

  • Weight

    1.21 lbs (549 g)

About Red Digital Cinema DSMC2 RED Touch 7.0" LCD, Aluminium

FEATURED REVIEWS

Great Buy!!

By Jarrod M.

Works great and is a great asset to your Red Camera. I use it on my Red Epic-W.

Very nice

By brad h.

Way better then the 4.7 inch.

SMC2® RED Touch 7.0

The DSMC2® RED Touch 7.0" LCD delivers the ultimate high-definition viewing experience for recording and viewing footage on your DSMC2 camera system. The 1920 × 1136 resolution display panel provides improved color accuracy, high pixel density (at 323 ppi), 1000:1 contrast, and is bright enough for operation in high ambient light. A robust, optically-bonded touchscreen offers the most intuitive way to navigate menus, adjust camera parameters, and review your .r3d clips directly out of the camera.

RED QUICK START: RED TOUCH 7.0” LCD

DSMC2 RED TOUCH 7.0

The lightweight display mounts directly to the BRAIN® without the need for any tools or hardware. Convenient thumbscrews enable you to attach and remove the display on-the-fly. Featuring a hinge design that rotates nearly 360° and folds down to lay flat for easy transportation, as well as a 180° image rotation option—the DSMC2 RED Touch 7.0" LCD is the most ergonomic DSMC2 display available. Choose from two available variations; a robust all aluminum model, or the Woven CF model for ultra-lightweight performance.
Using the DSMC2 LEMO Adaptor Collection in conjunction with the DSMC2 RED Touch 7.0" LCD allows the flexibility to mount the display away from the camera body.
