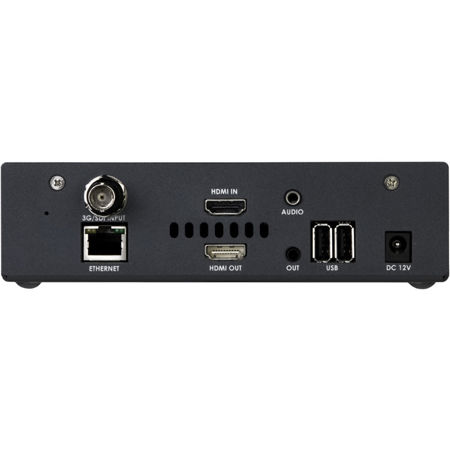

Videon VersaStreamer HDMI/SDI 1080p H.264 Streaming Encoder/Decoder

SKU: VDN10004714

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Videon VersaStreamer Specifications

  • Video Input Connectors

    1x HDMI v1.4a
    1x BNC 3G-SDI

  • Video Output Connector

    1x HDMI v1.4a

  • Audio Input

    1x 1/8" (3.5mm) Analog
    Embedded HDMI/SDI

  • External Recording Output

    2x USB 2.0

  • Network Connectors

    1x RJ45 10/100/1000 Ethernet

  • Streaming Protocols

    3x RTMP/RTMPS Simultaneous
    RTSP
    2x Unicast (RTP over UDP, Raw UDP) Simultaneous
    Multicast (RTP over UDP, Raw UDP)
    HLS

  • Recording

    MP4, MPEG-TS via USB
    sFTP/FTP Upload

  • Video Codec

    H.264, Baseline, Main, High

  • Bit Rate

    250 kb/s to 30 mb/s

  • Bit Rate Control

    Variable, Constant

  • Audio Encoding

    Format: MPEG-4 AAC-LC in ADTS
    Rates: 64, 96, 128, 192, 256, 320 kb/s
    Encode Sampling Frequency: 32, 44.1, 48 kHz

  • Audio Decoding

    Formats: MPEG-1-Layer 2, MPEG-2/MPEG-4 AAC in ADTS/LOAS
    Decode Sampling Frequency: 48 kHz

  • Input Resolutions

    1080p: 60, 59.94, 30, 29.97, 25
    1080i: 60, 59.94, 50
    720p: 60, 59.94, 50

  • Encoding Resolutions

    1080p: 30, 29.97, 25
    1080i: 60, 59.94, 50
    720p: 60, 59.94, 50
    540p, 480p, 360p, 270p, 180p: Same as Source

  • Output Resolutions

    1080p: 60, 59.94, 30, 29.97, 25
    1080i: 60, 59.94, 50
    720p: 60, 59.94, 50
    576p50
    480p: 60, 59.94

  • Power Input

    12 VDC, > 15 W

  • Dimensions

    1.8 x 6.5 x 6.2" (4.6 x 16.5 x 15.7cm)

  • Weight

    1.12 lb (508g)

  • UPC Code

    850690007106

About Videon VersaStreamer

Reach your Audience on Every Online Platform
Interact with all of your viewers by simultaneously streaming directly to your choice of up to three web (RTMP) destinations like Facebook, YouTube, Twitch, Amazon Web Services, and more!

Record your Streams to USB for Immediate Use
Using a standard USB stick, you can record a local backup while you are streaming that's available as soon as your stream concludes. You can even auto-upload your recorded file to an FTP server for additional redundancy.

The Easiest Point-to-Point Video Solution
VersaStreamer can be an encoder, a decoder, or both at the same time! This makes streaming point-to-point across local or public networks simple. HLS support also enables streaming to laptops, mobile devices, and smart TVs on a local network.

Ready for the Coming Changes to Streaming
Video platforms are already moving to 4K and the bandwidth-saving HEVC codec. With VersaStreamer 4K, you can rest assured that your encoder will be compatible with the next generation of streaming.

Video Encoding / Decoding
1080p Encode
H.264 Compression
Decode Support

Inputs / OutputsHDMI Video Input
3G SDI Video Input
Audio embedded in HDMI/SDI
3.5mm Analog Audio input

Simultaneous Streaming Capabilities3x RTMP/RTMPS
RTSP
2x Unicast (Point-to-Point)
Multicast
HLS
Local USB Recording

What's in the box:

  • VersaStreamer HDMI/SDI 1080p H.264 Streaming Encoder/Decoder
  • Power Cable
  • Videon 1 Year Limited Warranty
