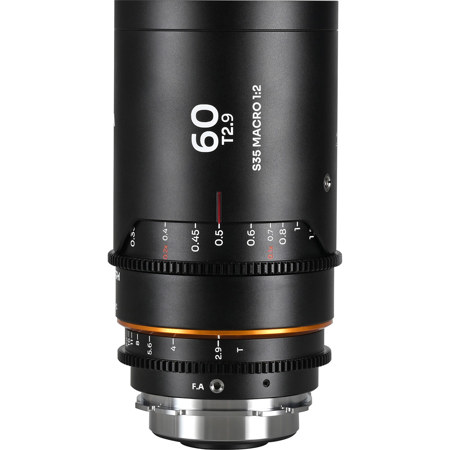

Venus Laowa Nanomorph 60mm T2.9 1.5x Macro 1:2 Lens for PL Mount & Canon EF Amber

SKU: VE60T29PLEFA MFR: VE6029PLEFA
Earn VIP Reward Points

Key Features

  • World's first 60mm 0.5X Macro Anamorphic lens for S35 sensors
  • T2.9 large aperture for stunning shallow depth of field
  • 1.5x anamorphic squeeze ratio for consistent image quality
  • Compatible with Laowa 1.4x Full Frame Expander for versatility
  • Dual scale focus ring with metric and imperial measurements
  • Six interchangeable mounts including ARRI PL and Canon EF
See More Product Details
Temporarily On Backorder?Expected Availability: 10/2025
Free Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Venus Laowa Nanomorph 60mm T2.9 1.5x Macro 1:2 Lens for PL Mount & Canon EF Specifications

  • Available Flare Colors

    Amber/Blue/Silver

  • Mount

    PL Mount

  • Focal Length

    60mm

  • Max. Aperture

    T2.9-T22

  • Angle of View

    35.5 Degree

  • Image Circle Diameter

    25.6x16mm

  • Squeeze Ratio

    1.5x

  • Max. Magnification Ratio

    1:2

  • Format

    Super 35

  • Lens Structure

    20 elements in 14 groups

  • Aperture Blades

    13

  • Focus Throw

    270 Degree

  • Aperture Throw

    71 Degree

  • Focus Indicator

    Dual Scale

  • Min. Focusing Distance

    9.45" (24cm)

  • In-focus Driving Mode

    Manual (MF)

  • Filter Thread Diameter

    77mm

  • Front Diameter

    80mm

  • Optional Interchangeable Mount

    Canon EF, Canon RF, Sony E, Nikon Z, L Mount

  • Dimensions

    3.3 x 5.67" (84 x 144mm)

  • Weight

    2.36 lbs (1.07kg)

  • UPC Code

    6940486709766

About Venus Laowa Nanomorph 60mm T2.9 1.5x Macro 1:2 Lens for PL Mount & Canon EF

Because the Laowa Nanomorph 60mm T2.9 1.5x Macro 1:2 Anamorphic Lens for PL Mount & Canon EF is the world's first of its kind, it revolutionizes the capabilities of S35 sensors with its groundbreaking 0.5X macro anamorphic design. This innovative lens offers a close focus distance of 24cm (9.45 inches) and a 0.5X magnification, setting a new standard in the realm of cinematic lenses. The T2.9 large aperture allows filmmakers to achieve an incredibly shallow depth of field, producing stunning cinematic footage without the need for diopters. This feature significantly enhances creative storytelling possibilities, offering filmmakers a fresh perspective.

Designed with a default ARRI PL mount and an interchangeable Canon EF mount bayonet, the Nanomorph 60mm lens is versatile and adaptable. Its 1.5x anamorphic squeeze ratio ensures consistent image quality, avoiding the anamorphic mumps that can occur with variable squeeze ratios. This lens excels in low-light conditions, delivering exceptional optical performance and creating organic, smooth oval bokeh and visually captivating cinematic flares.

The Nanomorph 60mm lens is compatible with the Laowa 1.4x Full Frame Expander, transforming it into an 84mm T4 Full Frame 0.5x Macro Anamorphic lens with just a single stop of aperture reduction. Despite this transformation, the lens retains its original specifications, including the minimum focusing distance of 24cm.

Ergonomically designed with a dual scale focus ring, the lens features both metric and imperial measurements, facilitating easy focus adjustments for AD and focus pullers. Its unified gear position aligns with other Nanomorph S35 lenses, allowing for seamless transitions between different focal lengths on set, thus streamlining workflow and reducing setup time.

The lens includes a standardized 0.8 Mod Gear for mounting focus motors, enhancing its usability in professional settings. It also offers six interchangeable mounts, including the default ARRI PL and Canon EF, with optional mirrorless bayonets (E/Z/RF/L) available for purchase, ensuring compatibility with a wide range of camera systems.

Additionally, lens support is available to alleviate the weight burden on the camera mount, and a convenient back focus adjustment mechanism allows for easy optical calibration. By loosening three screws near the lens body and using the on-body lever, users can efficiently adjust the back focus, ensuring precise and accurate focus for every shot. This lens is a must-have for cinematographers seeking to push the boundaries of their creative expression.

Venus Laowa Nanomorph 60mm T2.9 1.5x Macro 1:2 Lens for PL Mount & Canon EF Features

  • WORLD'S FIRST 60mm 1:2 Macro Anamorphic Lens for S35 Sensors
  • Innovative 0.5X Macro Capability
  • Compatible with Laowa 1.4x Full Frame Expander
  • T2.9 Large Aperture
  • 1.5X Constant Squeeze Ratio
  • Cinematic Flare with Amber/Blue/Silver Color Options
  • Ergonomic & Intelligent Cine Housing

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • World's first 60mm 0.5X Macro Anamorphic lens for S35 sensors
  • T2.9 large aperture for stunning shallow depth of field
  • 1.5x anamorphic squeeze ratio for consistent image quality
  • Compatible with Laowa 1.4x Full Frame Expander for versatility
  • Dual scale focus ring with metric and imperial measurements
  • Six interchangeable mounts including ARRI PL and Canon EF

What's in the box:

  • Venus Laowa Nanomorph 60mm T2.9 1.5x Macro 1:2 Anamorphic Lens
  • Canon EF Bayonet
  • Rear Lens Cap
  • Front Lens Cap
  • Venus 3 Year Limited Warranty
