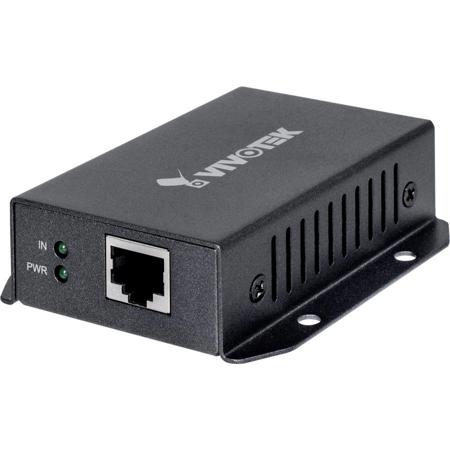

Vivotek AP-FXC-0100 1-Port Indoor FE PoE Extender
See all Vivotek items

Vivotek AP-FXC-0100 1-Port Indoor FE PoE Extender

SKU: VIAPFXC0100
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Vivotek AP-FXC-0100 Specifications

  • Extension Distance

    Max. 984.25' / 300m (No Local Power Required)

  • PoE Output

    12-48W

  • Bandwidth

    Max. 100Mbps

  • Video Resolution

    Megapixel/D1/VGA

  • Video Compression

    MJPEG/MPEG-4/H.264/H.265

  • Compatible Camera List

    VIVOTEK Network Cameras (FD8381-EV, IB8381-E, FE8181/81V, FE8391 excluded)

  • Fast Ethernet (RJ45)

    2

  • Standards Supported

    IEEE 802.3 10-BASE-T (Ethernet)
    IEEE 802.3u 100-BASE-TX (Fast Ethernet)
    IEEE 802.3x Flow Control (Full-duplex Flow Control)
    IEEE 802.3af Power over Ethernet
    IEEE 802.3at Power over Ethernet Plus

  • MAC Address

    2 K

  • Buffer Memory

    48KB

  • Transmission Method

    Store and Forward

  • Backplane

    1.0Gbps

  • Auto-MDI/MDI-X, Auto-Negotiation

    Supported

  • Filtering/Forwarding Rates

    14880pps (10Mbps)
    148000pps (100Mbps)

  • Transmission Media

    Cat. 3, 4, 5 UTP/STP (10Base T )
    Cat. 5, 5e UTP/STP (100Base TX)

  • PoE Function

    PSE PoE Fast Ethernet (RJ45): 1
    PD PoE Fast Ethernet (RJ45): 1
    Power over Ethernet Output Compatible 802.3at/af Passive:
    Pin Assignment and Polarity: 4/5 (+), 7/8 (-), Output Power Voltage: 45-55VDC
    Power over Ethernet Input Compatible 802.3at/af Passive & Standard

  • LED Indicators

    Power, IN, OUT

  • Operating Temperature

    0 deg. C to 50 deg. C / 32 deg. F to 122 deg. F

  • Storage Temperature

    -20 deg. C to 70 deg. C / -4 deg. F to 158 deg. F

  • Humidity

    Operating: 10 to 90% (Non-condensing)
    Storage: 10 to 90% (Non-condensing)

  • Safety Certifications

    CE, C-Tick, FCC, VCCI

  • Dimensions (L x W x H)

    80 x 52 x 23mm / 3.15 x 2.04 x 0.91"

  • Weight

    0.16kg / 0.35lbs

About Vivotek AP-FXC-0100

The AP-FXC-0100 is a PoE extender capable of feeding 15.4/30W power to powered devices for a distance of up to 300meters. Multiple extenders can be cascaded to increase the cabling distance and the number of powered devices.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Vivotek AP-FXC-0100 1-Port Indoor FE PoE Extender
  • Screws
  • Quick Installation Guide
  • Vivotek 2 Year Warranty
