Vivotek CC8370-HV Specifications

About Vivotek CC8370-HV

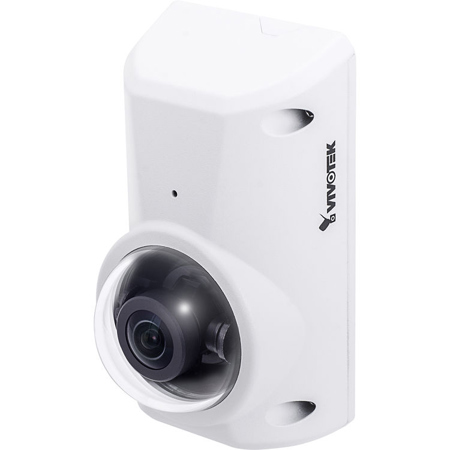

VIVOTEK's CC8370-HV is a vandal-proof fisheye network camera offering up to 30fps at 3-Megapixel resolution. With its unique anti-grip design and inconspicuous appearance, the CC8370-HV plays a life secure guard role in unique security environments. Without ligature edges, it will effectively eliminate self-harm and suicide happen, ideal for detention house, holding cells, psychiatric ward, mental hospital and correctional institution. Featuring 180 deg. horizontal panoramic views with adjustable 25 deg. tilt angle, the camera allows users amazing flexibility of viewing angles and options. The camera's weather-proof compact size also makes it an ideal choice for indoor and outdoor scenario such as boutique, convenience store, bank, school, parking lot and street.

The CC8370-HV can view at a wide angle of 180 degrees, providing complete video security with no dead angles. Featuring WDR Pro, the camera captures both the dark and bright areas of an image and combines the differences to create a highly realistic representation of the original scene. Further, with added SNV technology, high-quality full-color surveillance video becomes possible even under low-light conditions. These combined features enable the camera to provide video quality remarkably close to the capabilities of the human eye. When installing the unit, the unique mounting design facilitates easy installation on a wall or desktop in order to capture faces at eye level. Further increasing the level of surveillance, a built-in microphone which records sound within a 5 meter radius.

The CC8370-HV also supports the industry-standard H.264 compression technology, drastically reducing file sizes and conserving valuable network bandwidth. Together with the ST7501 multi-lingual 32-channel recording software, users can simply and quickly set up an easy-to-use IP surveillance system.

Vivotek CC8370-HV Features

  • 3-Megapixel CMOS Sensor
  • 30fps at 2048 x 1536
  • Anti-Ligature Design
  • Weather-proof IP66-rated and Vandal-proof IK10-rated Housing
  • 180 deg. Horizontal Panoramic View
  • +/-25 deg. Tilt Lens
  • WDR Pro (100dB) to Provide Extreme Visibility in High Light Contrast Scenes
  • Video Rotation
  • Built-in Microphone
  • SNV (Supreme Night Visibility)
  • 3D Noise Reduction for Low-light Conditions
  • Real-time H.264 and MJPEG Compression (Dual Codec)
  • Built-in IEEE 802.3af Compliant PoE
  • Built-in MicroSD/SDHC/SDXC card slot

What's in the box:

  • Vivotek CC8370-HV 3MP Indoor/Outdoor Horizontal Panoramic Anti-Ligature Fisheye Network Camera with 1.6mm Lens
  • Mounting Bracket
  • Screw Pack
  • Quick Installation Guide
  • Vivotek 2 Year Warranty
