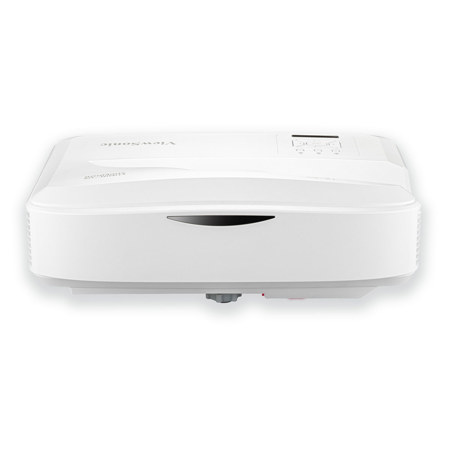

ViewSonic LS832WU WUXGA Ultra Short Throw Laser Projector

SKU: VSLS832WU MFR: LS832WU
Earn VIP Reward Points

Key Features

  • Experience stunning clarity with the ViewSonic projector's WUXGA native resolution.
  • Enjoy vibrant visuals with a bright 5000 ANSI lumens, perfect for any business setting.
  • Ultra-short throw lens delivers huge images even in small spaces; ideal for offices.
  • Laser light source provides up to 30,000 hours of reliable performance, reducing costs.
  • Connect effortlessly with HDMI and USB ports for seamless presentations and media.
  • Engage your audience with the integrated 10W speaker for clear audio during meetings.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1
Add to ListGet Sale Alert

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What is the throw ratio of the LS832WU WUXGA Ultra Short Throw Laser Projector?

The LS832WU WUXGA Ultra Short Throw Laser Projector has a 0.25 ultra short throw ratio, allowing for a 100" screen projection from just 28 cm away.

What is the lifespan of the LS832WU WUXGA Ultra Short Throw Laser Projector?

Equipped with 2nd generation Laser Phosphor technology, the LS832WU WUXGA Ultra Short Throw Laser Projector offers a long-lasting lifespan of up to 30,000 hours.

What kind of AV control systems is the LS832WU WUXGA Ultra Short Throw Laser Projector compatible with?

The LS832WU WUXGA Ultra Short Throw Laser Projector is compatible with Crestron, AMX, Extron, and PJ Link AV control systems.

Does the LS832WU WUXGA Ultra Short Throw Laser Projector support 4K UHD and HDR/HLG content?

Yes, the LS832WU WUXGA Ultra Short Throw Laser Projector supports 4K UHD and HDR/HLG content from external devices via dual HDMI 2.0b/HDCP 2.2 ports.

What is the cooling design of the LS832WU WUXGA Ultra Short Throw Laser Projector?

The LS832WU WUXGA Ultra Short Throw Laser Projector features an advanced cooling design that enables 24/7 operation without degradation of quality or performance.

Shopper : Why Did You Choose This?JOHN I : Recommendation of our lighting and projections team

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

ViewSonic LS832WU Specifications

General

General

Jump to...
  • Usage

    Business Professional

  • Remote

    Yes

  • Light Source

    Laser Phosphor

  • Expected Lamp Life

    Full Brightness: 20,000 Hours
    Low Brightness: 30,000 Hours

  • Operating Conditions

    41 to 104°F / 5 to 40°C at 10 to 85% Humidity

Image Display

Jump to...
  • Resolution

    Native: 1920 x 1200 @ 60 Hz

  • Display System

    1-Chip DMD DLP

  • Maximum Brightness

    5000 Lumens (ANSI)

  • Aspect Ratio

    Native: 16:10

  • HDR Support

    Yes: HDR10/Hybrid Log Gamma

  • Color Depth

    10-Bit (1.07 Billion Colors)

  • 3D Support

    Yes: Frame Packing, Side by Side, Top Bottom, DLP Link 3D Glasses Supported

Lens & Optics

Jump to...
  • Throw Ratio

    0.253:1

  • Throw Distance

    Ultra Short Throw: 0.56 to 2.17' / 0.17 to 0.66 m

  • Projection Size

    80 to 170" / 2.0 to 4.3 m

  • Includes Lens

    Yes

  • Zoom

    Yes: 2x Digital

  • Focus

    Manual

  • Lens Shift

    No

  • Focal Length

    3.7mm

  • Aperture

    f/2.44

  • Offset

    133% ± 3% vertical

Features

Jump to...
  • Projection Method

    Front and Rear

  • Keystone Correction

    Manual: Vertical/Horizontal ± 10°

  • Ceiling Mountable

    Yes

  • Fan Noise

    Full Brightness: 34 dB
    Low Brightness: 28 dB

  • Security

    Yes, Cable Lock Slot Password Protection

  • Built-in Speakers

    Yes: 1x 10 W

  • Media/Memory Card Slot

    No

Connectivity

Jump to...
  • Audio & Video I/O

    2x HDMI 2.0 Audio/Video Input
    1x VGA Video Input
    1x VGA Video Output
    1x 1/8" / 3.5 mm Mini Audio Input
    1x 1/8" / 3.5 mm Mini Audio Output
    1x 1/8" / 3.5 mm Mini Microphone Input

  • Other I/O

    1x RJ45 (Ethernet)
    1x USB-B (Service)
    1x USB-A (Power)
    1x DE-9/DB-9 (RS-232) Input

  • Wireless

    No

  • Mobile App Compatible

    No

  • HDCP

    Yes: Version 2.2

Connectiity

Jump to...
  • Multi-Input Support (PIP/PBP)

    No

  • Input Power

    100 to 240 VAC, 50 / 60 Hz

  • Power Consumption

    Full Brightness: 328 W
    Standby Mode (Lamp Off): < 0.5 W

Physical Details

Jump to...
  • Dimensions

    15.0 x 5.2 x 12.5" / 382.0 x 132.0 x 318.0 mm

  • Weight

    12.8 lb / 5.8 kg

  • UPC Code

    766907021912

About ViewSonic LS832WU

Make your commercial and educational spaces come alive with the LS832WU WUXGA Ultra Short Throw Laser Projector, a flagship product from ViewSonic's Luminous Superior series. This high brightness, lamp-free projector is engineered with advanced 5,000 ANSI Lumens WUXGA ultra short throw laser technology, making it an ideal digital signage solution for a variety of public and commercial applications, including museums, storefronts, shopping malls, and airports.

The LS832WU's standout feature is its 0.25 ultra short throw ratio, which allows for a 100" screen projection from a mere 28 cm away. This feature, coupled with the ability to expand the screen size up to 170", offers a cost-effective solution compared to other commercial displays.

Equipped with the 2nd generation Laser Phosphor technology, the LS832WU ensures consistent high brightness for an impressive lifespan of up to 30,000 hours. Its H/V keystone and 4 corner image adjustment capabilities offer flexible installation options, making it a versatile choice for various display needs.

The LS832WU is designed for seamless integration with Crestron, AMX, Extron, and PJ Link AV control systems, thanks to its comprehensive LAN control. This feature enables centralized management of multiple devices, enhancing operational efficiency.

The projector's 0.25 ultra short throw ratio not only offers immersive visuals but also eliminates shadow casting and blinding lights, making it a perfect choice for all commercial and public display applications. Its eco-friendly, lamp-free design eliminates the need for toxic mercury lightbulbs and frequent lamp replacements, ensuring consistent image quality during extended commercial display applications.

With a 5,000 ANSI Lumens and 3,000,000:1 contrast ratio, the LS832WU ensures bright and vibrant visuals in all light conditions. Its Horizontal and Vertical Keystone correction along with 4 corner adjustment features ensure perfectly proportioned pictures every time.

The LS832WU is 41% lighter and 47% smaller than its predecessor, making it easy and cost-effective to install. Its advanced cooling design enables 24/7 operation without degradation of quality or performance. The projector's IP5X sealed design enhances dust resistance, ensuring long-lasting, crystal-clear image quality.

The LS832WU also supports 4K UHD and HDR/HLG content from external devices through dual HDMI 2.0b/HDCP 2.2 ports, ensuring error-free display formatting. Its built-in 5V/1.5A USB output can power a Wireless HDMI Dongle, eliminating the need for separate power adapters when streaming multimedia content.

In conclusion, the LS832WU WUXGA Ultra Short Throw Laser Projector from ViewSonic's Luminous Superior series is a versatile, high-performance, and eco-friendly solution for all your commercial and educational display needs.

ViewSonic LS832WU Features

  • 0.25 ultra short throw for space-saving installation
  • 2nd generation Laser Phosphor technology with up to a 30,000-hour lifespan
  • 5,000 ANSI Lumens offering bright images in any environment
  • Up to 170" ultra-large screen with lower cost-per-inch
  • H/V keystone and 4 corner adjustment for enhanced installation flexibility
  • Comprehensive LAN control providing efficient device management

Key Features

  • Experience stunning clarity with the ViewSonic projector's WUXGA native resolution.
  • Enjoy vibrant visuals with a bright 5000 ANSI lumens, perfect for any business setting.
  • Ultra-short throw lens delivers huge images even in small spaces; ideal for offices.
  • Laser light source provides up to 30,000 hours of reliable performance, reducing costs.
  • Connect effortlessly with HDMI and USB ports for seamless presentations and media.
  • Engage your audience with the integrated 10W speaker for clear audio during meetings.

What's in the box:

  • ViewSonic LS832WU WUXGA Ultra Short Throw Laser Projector
  • Remote Control with 2x AAA Batteries
  • Power Cord
  • ViewSonic 3 Year Limited Warranty on Projector & 1 Year Limited Warranty on Lamp
