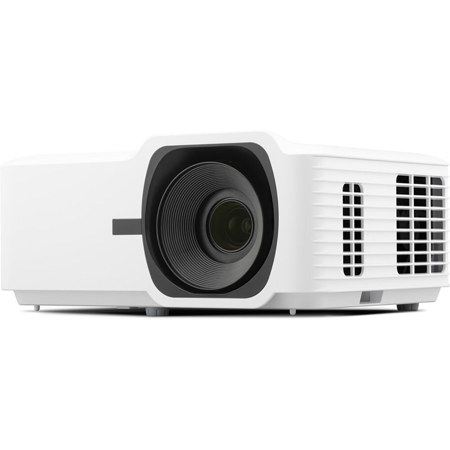

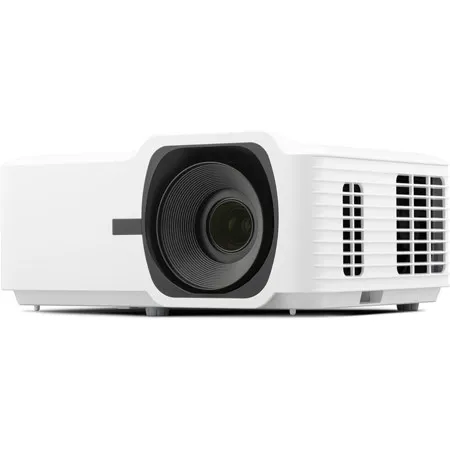

ViewSonic LSD400W WXGA Laser DLP Projector, White

SKU: VSLSD400W MFR: LSD400W
Earn VIP Reward Points

Key Features

  • Experience crystal-clear visuals with 4000 ANSI Lumens brightness for impactful presentations.
  • Enjoy vibrant, lifelike images thanks to the impressive 3,000,000:1 contrast ratio.
  • Benefit from a long-lasting laser light source, providing up to 30,000 hours of use.
  • Connect effortlessly with versatile HDMI inputs, perfect for diverse business setups.
  • Achieve sharp, detailed projections with WXGA (1280x800) native resolution.
  • Its portable design and robust connectivity make it ideal for any meeting space.
See More Product Details
New Item?Request assistance or get notified
Calculate Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

ViewSonic LSD400W Specifications

General

General

Jump to...
  • Color

    White

  • Projection System

    0.65" (1.65) WXGA

  • Native Resolution

    1280x800

  • Brightness

    ANSI Lumens: 4000
    Center Lumens: 4800

  • Contrast Ratio

    3000000:1

  • Display Color

    1.07 Billion Colors

  • Light Source Type

    Laser Phosphor

  • Light Source Life (hours)

    With Normal Mode: 20000
    With SuperEco Mode: 30000

  • Lens

    F=2.4-2.53, f=21.85-24mm

  • Projection Offset

    124%+/-10%

  • Throw Ratio

    1.544-1.72

  • Optical Zoom

    1.1x

  • Digital Zoom

    0.8x-2.0x

  • Image Size

    30-300"

  • Throw Distance

    1-11.11m (100"@3.33m)

  • Keystone

    H:+/-30 Degree, V:+/-30 Degree

  • Audible Noise

    Normal: 30dB
    Eco: 25dB

  • Input Lag

    25ms

  • Resolution Support

    VGA (640 x 480) to WUXGA RB (1920 x 1200) (RB-Reduced Blanking)

  • HDTV Compatibility

    480i, 480p, 576i, 576p, 720p, 1080i, 1080p

  • Horizontal Frequency

    15K-102KHz

  • Vertical Scan Rate

    24-120Hz

  • Country of Origin

    China

  • HDMI

    2x (HDMI 1.4, HDCP 1.4)

  • Audio-out (3.5mm)

    1x

  • Speaker

    3W

  • USB Type A (Power)

    1x (5V/1.5A)

Control

Jump to...
  • RS232 (DB 9-pin male)

    1x

  • USB Type A (Services)

    1x

  • Power Supply Voltage

    Power adapter:
    Input: 100-240V
    Output: 19.5VDC / 9.23A

  • Power Consumption

    Normal: 114W
    Standby: <0.5W

  • Operating Temperature

    32 to 104 Degree F (0 to 40 Degree C)

  • OSD Language

    English, French, Spanish, Thai, Korean, German, Italian, Russian, Swedish, Dutch, Polish, Czech, T-Chinese, S-Chinese, Japanese, Turkish, Portuguese, Finnish, Indonesian, Arabic, Vietnamese, Hungarian, Norsk, total 23 languages

  • User Guide Language

    English, S-Chinese, T-Chinese, Indonesian, Finish, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Spanish, Swedish, Turkish, Arabic, Czech, Thai, Vietnamese, total 20 languages

Physical

Jump to...
  • Dimensions (W x D x H)

    With Adjustment Foot: 11.26 x 8.5 x 5.08" (286 x 216 x 129mm)

  • Weight

    6.83 lbs (3.10kg)

  • UPC Code

    766907034325

About ViewSonic LSD400W

The LSD400W is part of ViewSonic's Luminous Superior Series, a lamp-free projector lineup designed for commercial and educational environments. Powered by 3rd-generation laser phosphor technology, it provides 4,000 ANSI Lumens of brightness and an impressive lifespan of up to 30,000 hours. Its lamp-free design ensures eco-friendliness and cost-efficiency by reducing up to 67% power consumption than comparable lamp projectors. Delivering ultra-large projections up to 300" in WXGA resolution, this projector leverages high native contrast from a 0.65" DMD chip with DLP technology. Equipped with a 1.1x optical zoom, H/V keystone & 4 corner correction, and 360 Degree projection, the LSD400W supports flexible installation options, making it an excellent choice for meeting rooms, classrooms, and golf simulation setups.

Bright, Compact, Durable
The LSD400W incorporates advanced 3rd-gen laser phosphor technology, enhancing brightness by 20% and achieving better luminous efficiency, all while being 32% more compact and more accessible than the previous generation. Its lamp-free light source offers instant power on/off and a lifespan of up to 30,000 hours without maintenance, ensuring consistent image quality even during extended periods of use.

Clear Visuals for Business and Education Environments
Thanks to the latest laser technology, the LSD400W achieves high brightness of 4,000 ANSI Lumens. With WXGA resolution, the projector ensures bright and detailed images in dim or lit environments.

Unmatched Contrasts, Enhanced Visibility
Experience enhanced visuals with the LSD400W, boasting high contrast thanks to DLP technology and an advanced 0.65" DMD chip from Texas Instruments. This provides deeper blacks and richer depth, ensuring an exceptional viewing experience.

Ultra-Large Screen with Lower Cost-per-Inch
This easy-to-install projector allows for an image size of up to 300", offering a lower cost-per-inch compared to other types of commercial displays.

Save on Costs and Energy
With its advanced lamp-free light source, the LSD400W offers a highly energy-efficient and cost-saving display solution by consuming up to 67% less power than competing projectors.

Reliable Long-Term Performance with DLP Projection Technology
With DLP technology, the LSD400W maintains consistent color performance over time, free from any yellowing issues. Featuring a sealed engine design (IP6X), it is filter-free, preventing dust from affecting internal components and ensuring minimal maintenance. Moreover, it offers crisp and seamless image quality, displaying remarkable contrast and eliminating the noticeable screen-door effect.

Get Perfectly-Shaped Images Effortlessly
Horizontal and vertical keystone correction, along with 4-corner adjustment features, eliminate crooked or distorted images for a perfectly proportioned picture every time.

Versatile Creative Applications
The projector can rotate vertically at any angle, enabling projection onto ceilings, walls, or floors, and its portrait mode further expands its capabilities for projection mapping, staging, and creative advertising applications.

Brilliant Colors for an Authentic Golf Experience
Powered by ViewSonic's advanced color-tuning technology, the projector features a dedicated Golf Mode that enhances colors, especially greens and blues, more vivid and brings fairways and putting surfaces to life with striking realism, creating a golf experience that feels as close to reality as possible.

Upgrade Your Projector with Wireless Content Casting
Enhance your projector with the ViewShare Wireless Screen Casting Kit for seamless wireless content sharing. The projector's built-in 5V/1.5A USB-A output powers the dongle, enabling simultaneous multimedia streaming and power charging without adapters.

Note: ViewShare sold separately

A Simpler Way to Update Projector Software
Skip trips to the service center by keeping software up to date easily via USB cable connection with your laptop. This efficient solution, developed exclusively by ViewSonic, ensures optimal performance without the hassle.

ViewSonic LSD400W Features

  • 3rd generation laser phosphor technology with a lifespan up to 30,000 hours
  • 4,000 ANSI Lumens offering clear images in any environment
  • High native contrast ratio powered by a 0.65" DMD chip and DLP technology
  • Up to a 300" ultra-large screen with a lower cost-per-inch
  • Consumes up to 67% less power than comparable lamp-based projectors
  • Installation flexibility: H/V keystone, 4 corner adjustment, and 360 Degree projection

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Experience crystal-clear visuals with 4000 ANSI Lumens brightness for impactful presentations.
  • Enjoy vibrant, lifelike images thanks to the impressive 3,000,000:1 contrast ratio.
  • Benefit from a long-lasting laser light source, providing up to 30,000 hours of use.
  • Connect effortlessly with versatile HDMI inputs, perfect for diverse business setups.
  • Achieve sharp, detailed projections with WXGA (1280x800) native resolution.
  • Its portable design and robust connectivity make it ideal for any meeting space.

What's in the box:

  • ViewSonic LSD400W WXGA Laser DLP Projector (White)
  • Power Cord
  • Remote Control
  • User Manual
  • ViewSonic 3 Year Limited Warranty on Projector & 1 Year Limited Warranty on Lamp
