New Arrival

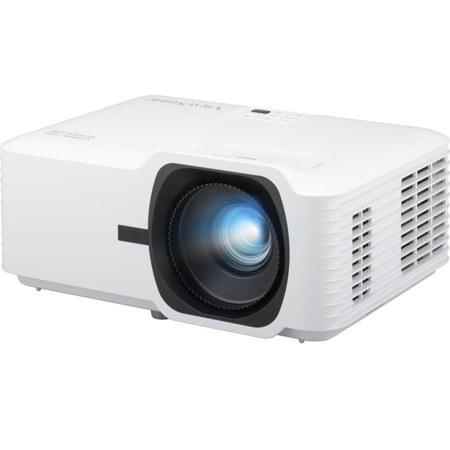

ViewSonic LSD600W WXGA Laser DLP Projector, White

SKU: VSLSD600W MFR: LSD600W
Earn VIP Reward Points

Key Features

  • Experience vibrant presentations with 6000 ANSI Lumens brightness, perfect for any meeting room.
  • Enjoy crystal-clear visuals with WXGA (1280x800) native resolution for professional clarity.
  • Benefit from a 30,000-hour laser light source life, ensuring long-term, maintenance-free operation.
  • Connect effortlessly with versatile HDMI inputs, simplifying your setup for dynamic presentations.
  • Project large, impactful images from 30 to 300 inches, ideal for diverse business environments.
  • Achieve precise image alignment with horizontal and vertical keystone correction for perfect display.
See More Product Details
Ships from Manufacturer?
Calculate Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

ViewSonic LSD600W Specifications

General

General

Jump to...
  • Color

    White

  • Projection System

    0.65" (1.65cm) WXGA

  • Native Resolution

    1280x800

  • Brightness

    ANSI Lumens: 6000
    Center Lumens: 6600

  • Contrast Ratio

    3000000:1

  • Display Color

    1.07 Billion Colors

  • Light Source Type

    Laser Phosphor

  • Light Source Life (hours)

    With Normal Mode: 20000
    With SuperEco Mode: 30000

  • Lens

    F=2.43-2.78, f=16.90-21.61mm

  • Projection Offset

    124%+/-10%

  • Throw Ratio

    1.18-1.54

  • Optical Zoom

    1.3x

  • Digital Zoom

    0.8x-2.0x

  • Image Size

    30-300"

  • Throw Distance

    0.76-9.95m (100"@2.54m)

  • Keystone

    H:+/-30 Degree, V:+/-30 Degree

  • Audible Noise

    Normal: 32dB
    Eco: 27dB

  • Input Lag

    25ms

  • Resolution Support

    VGA( 640 x 480) to WUXGA RB (1920 x 1200)

  • HDTV Compatibility

    480i, 480p, 576i, 576p, 720p, 1080i, 1080p

  • Horizontal Frequency

    15K-102KHz

  • Vertical Scan Rate

    24-120Hz

  • Country of Origin

    China

  • HDMI

    2x (HDMI 1.4, HDCP 1.4)

  • Audio-out (3.5mm)

    1x

  • Speaker

    15W

  • USB Type A (Power)

    1x (5V/1.5A)

Control

Jump to...
  • RS232 (DB 9-pin male)

    1x

  • USB Type A (Services)

    1x

  • Power Supply Voltage

    Power adapter:
    Input: 100-240V
    Output: 19.5VDC / 11.79A

  • Power Consumption

    Normal: 163W
    Standby: <0.5W

  • Operating Temperature

    32 to 104 Degree F (0 to 40 Degree C)

  • OSD Language

    English, French, Spanish, Thai, Korean, German, Italian, Russian, Swedish, Dutch, Polish, Czech, T-Chinese, S-Chinese, Japanese, Turkish, Portuguese, Finnish, Indonesian, Arabic, Vietnamese, Hungarian, Norsk, total 23 languages

  • User Guide Language

    English, S-Chinese, T-Chinese, Indonesian, Finish, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Spanish, Swedish, Turkish, Arabic, Czech, Thai, Vietnamese, total 20 languages

Physical

Jump to...
  • Dimensions (W x D x H)

    With Adjustment Foot: 11.26 x 8.5 x 5.08" (286 x 216 x 129mm)

  • Weight

    6.39 lbs (2.90kg)

  • UPC Code

    766907038194

About ViewSonic LSD600W

The LSD600W belongs to ViewSonic's Luminous Superior series, a lamp-free high-brightness projector line up designed for corporate and commercial environments. With its adoption of the 3rd generation laser phosphor technology, it delivers 6,000 ANSI Lumens for up to 30,000 hours, ensuring bright and vivid images without lamp replacement. The lamp-free design offers an eco-friendly and cost-effective solution, while the projector's light weight and compact design reduces transportation costs. With up to 300" projection and high native contrast, it is well-suited for boardrooms, public, and sports simulation spaces. This projector features a 1.3x optical zoom, H/V keystone, 4 corner adjustment, 360 Degree projection, and a portrait mode for easy setup and versatile applications.

Bright, Compact, Durable
The LSD600W incorporates advanced 3rd-gen laser phosphor technology, enhancing brightness by 20% and achieving better luminous efficiency, all while being 32% more compact and more accessible than the previous generation. Its lamp-free light source offers instant power on/off and a lifespan of up to 30,000 hours without maintenance, ensuring consistent image quality even during extended periods of use.

Bright Images for Large Venues
Delivering 6,000 ANSI Lumens, the LSD600W provides vibrant and sharp projection in WXGA in all lighting conditions for auditoriums, boardrooms, public venues, and other expansive spaces.

Unmatched Contrasts, Enhanced Visibility
The projector's high native contrast ratio, achieved through its Texas Instruments 0.65"DMD chip, enables deeper blacks and brighter whites. As a result, it delivers more visual depth, clearer images, and enhanced legibility.

Ultra-Large Screen with Lower Cost-per-Inch
This easy-to-install projector allows for an image size of up to 300", offering a lower cost-per-inch compared to other types of commercial displays.

Save on Costs and Energy
With its advanced lamp-free light source, the LSD600W offers a highly energy-efficient and cost-saving display solution by consuming up to 62% less power than competing projectors

Reliable Long-Term Performance with DLP Projection Technology
With DLP technology, the LSD600W maintains consistent color performance over time, free from any yellowing issues. An IP6X-rated sealed optical engine keeps the unit filter-free, preventing dust from reaching internal components and requiring minimal maintenance. Moreover, it offers crisp and seamless image quality, displaying remarkable contrast and eliminating the noticeable screen-door effect.

Enhanced Installation Flexibility
Equipped with a 1.3x optical zoom, the projector allows users to choose the most ideal set-up location within a range, getting the desired image size without needing to change the existing interior design.

Get Perfectly-Shaped Images Effortlessly
Horizontal and vertical keystone correction, along with 4-corner adjustment features, eliminate crooked or distorted images for a perfectly proportioned picture every time.

Versatile Creative Applications
The projector can rotate vertically at any angle, enabling projection onto ceilings, walls, or floors, and its portrait mode further expands its capabilities for projection mapping, staging, and creative advertising applications.

Non-stop 24/7 Operation
The projector's advanced cooling design enables 24/7 operation without any degradation in image quality or performance. This makes it the go-to solution for applications that require continuous projection in retail stores, malls, museums, airports, and other public spaces.

Brilliant Colors for an Authentic Golf Experience
Powered by ViewSonic's advanced color-tuning technology, the projector features a dedicated Golf Mode that enhances colors, especially greens and blues, more vivid and brings fairways and putting surfaces to life with striking realism, creating a golf experience that feels as close to reality as possible

Upgrade Your Projector with Wireless Content Casting
Enhance your projector with the ViewShare Wireless Screen Casting Kit for seamless wireless content sharing. The projector's built-in 5V/1.5A USB-A output powers the dongle, enabling simultaneous multimedia streaming and power charging without adapters.

Note: ViewShare sold separately

A Simpler Way to Update Projector Software
Skip trips to the service center by keeping software up to date easily via USB cable connection with your laptop. This efficient solution, developed exclusively by ViewSonic, ensures optimal performance without the hassle.

ViewSonic LSD600W Features

  • 3rd generation laser phosphor technology with up to a 30,000-hour lifespan
  • 6,000 ANSI Lumens offering bright images in any environment
  • Up to 300" ultra large screen with lower cost-per-inch
  • High native contrast ratio powered by a 0.65" DMD chip based on DLP technology
  • Installation flexibility: 1.3x optical zoom, H/V keystone, 360 Degree projection, and portrait mode

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Experience vibrant presentations with 6000 ANSI Lumens brightness, perfect for any meeting room.
  • Enjoy crystal-clear visuals with WXGA (1280x800) native resolution for professional clarity.
  • Benefit from a 30,000-hour laser light source life, ensuring long-term, maintenance-free operation.
  • Connect effortlessly with versatile HDMI inputs, simplifying your setup for dynamic presentations.
  • Project large, impactful images from 30 to 300 inches, ideal for diverse business environments.
  • Achieve precise image alignment with horizontal and vertical keystone correction for perfect display.

What's in the box:

  • ViewSonic LSD600W WXGA Laser DLP Projector (White)
  • Power Cord
  • Remote Control
  • User Manual
  • ViewSonic 3 Year Limited Warranty on Projector & 1 Year Limited Warranty on Lamp
