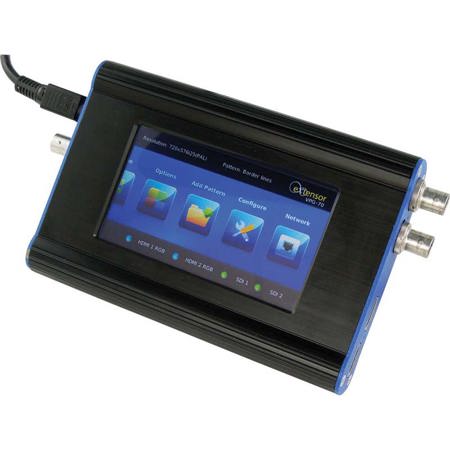

Vitec Extensor VPG-70 HD Video Pattern Generator
See all Vitec items

Vitec Extensor VPG-70 HD Video Pattern Generator, 22 Audio Tones from 100-24000Hz, USB 2.0, Genlock, Ethernet, 24 Standard & 12 User Patterns

SKU: VIEXVPG70
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Vitec Extensor VPG-70 Specifications

  • Video Inputs

    USB 2.0
    Genlock
    Ethernet

  • Video Outputs

    2x HDMI (YUV/ RGB) / DVI (not included in the package)
    (Colorimetry: Studio BT601(SD) and Studio BT709(HD))
    2x SDI with Payload ID Option
    (Colorimetry: Studio and Computer BT601 and BT709)
    SDI Compliance: SMPTE-259M, SMPTE-292M, SMPTE-424M & SMPTE-425-A

  • Audio

    22 Audio tones from 100Hz to 24, 000Hz

  • HDMI

    Up to 4 stereo channels

  • SDI

    Up to 8 stereo channels

  • Resolution & Frame rate supported

    1080p at 23.97 / 24 / 25 / 29.97 / 30 / 50 / 59.97 / 60 frames by second
    1080i at 50 / 59.94 / 60 frames by second
    720p at 50 / 59.94 / 60 frames by second
    480p, 576p, PAL, NTSC

  • Time-code

    OSD Time-code
    Binary Time-code on the left-top corner
    Ancillary Time-code in SDI (LTC and DVITC)
    Drop frame option

  • Square box

    Box bouncing on the sides of the screen
    Color, Speed and size are configurable

  • Genlock

    Yes (device synchronization)

  • Audio/Video Synchronization

    With timecode and square:
    Audio noise is generated every 1, 2, 4 or 8 seconds of time-code
    Audio noise is generated when square direction changes

  • Save Configuration / Sequence

    Up to 16 different configurations with time control sequence
    Possibility to generate Format or Pattern sequences

  • Network

    A TCP socket implemented in software allows to control device by Network

  • Video generator

    High quality MPEG-2 decoder (2GB internal memory)
    Display video up to 1920 x 1080p60 4:2:2

  • 24 Standard & 12 User patterns

    SMPTE EG 75%
    Bars 100/0/100/0
    Random
    Unicolor
    Gradient
    Frame ramps
    Gray Level
    Blue Level
    Green Level
    Red Level
    Black2White 8x8
    Circles
    SMPTE_HD_Bars
    Path Equalizer
    Grid
    HLines
    VLines
    Bars 100% Red
    Circle 4:3
    Circle 16:9
    Chroma Burst
    Border lines
    MBurst
    Plug

  • Dimensions

    1.4 x 6.0 x 4.1" / 35.56 x 152.40 x 104.14mm

  • Weight

    21.2oz / 601.01g

About Vitec Extensor VPG-70

Extensor VPG-70 generates standard and custom video and audio patterns for setup and performance testing of video processing equipment. With 24 standard video patterns, audio patterns based on 22 tones ranging from 100Hz to 24,000Hz and the ability to generate custom user video patterns via an integrated USB connection, the Extensor VPG-70 provides the format and pattern sequences you need.

The compact Extensor VPG-70 includes a user-friendly LCD touchscreen interface. Outputs include 2 HDMI YUV/RGB outputs with up to 4 stereo channels and 2 SDI outputs with up to 8 stereo channels and payload ID options. DVI outputs are supported through a HDMI adaptor.

The color, speed and size of the bouncing box at the side of the screen are configurable and up to 16 configurations may be saved, including time control sequences. A binary time code is displayed on-screen in the top left corner and an ancillary time code is available in SDI. Audio noise is synchronized with both the time code and the square box and generated every 1, 2, 4 or 8 seconds of the time code and/or when the square box changes direction.

Vitec Extensor VPG-70 Features

  • Generates standard and custom video and audio test patterns
  • Supports 1080i, 1080p, 720p, 480p and 576p broadcast standards as well as NTSC and PAL
  • Supports the full range of frame rates for each broadcast standard
  • 22 audio tones from 100Hz to 24,000Hz
  • 2 x HDMI outputs with studio BT601(SD) and studio BT709(HD) colorimetry
  • 2 x SDI outputs with studio and computer BT601 and BT709 colorimetry
  • Application: Video monitor testing, Video recorder testing, Video processing equipment set up

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • 22 audio tones from 100Hz to 24,000Hz
  • Monitor & recorder testing, Equipment set up

What's in the box:

  • Vitec Extensor VPG-70 HD Video Pattern Generator
  • Vitec 1 Year Limited Warranty
