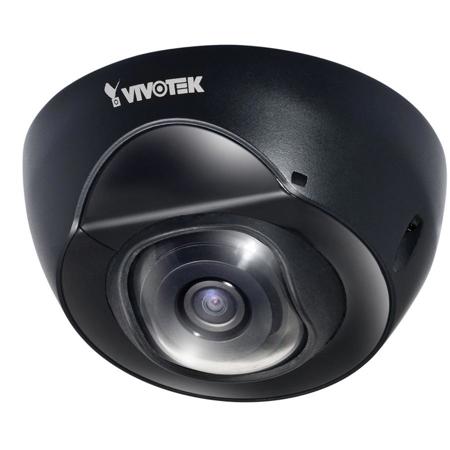

Vivotek FD8151V 1.3MP 2.5mm Lens Day & Night Outdoor Fixed Dome Network Camera, 1280x1024, 30fps, H.264, MJPEG, Vandal-proof, PoE, Black

SKU: VIFD8151VF2B

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Vivotek FD8151V Specifications

  • CPU

    Multimedia SoC (System-on-Chip)

  • Flash Memory

    16MB

  • RAM

    256MB

  • Image Sensor

    1/3" Progressive CMOS

  • Maximum Resolution

    1280 x 1024

  • Lens Type

    Fixed-focal

  • Focal Length

    f = 2.5mm

  • Aperture

    F2.0

  • Auto-iris

    Fixed-iris

  • Field of View

    110 deg. (Horizontal)
    86 deg. (vertical)
    142 deg. (Diagonal)

  • Shutter Time

    1/5 to 1/32000sec

  • Day & Night

    Removable IR-cut filter for day & night function

  • Minimum Illumination

    0.16 Lux, 50 IRE (Color)
    0.001 Lux, 50 IRE (B/W)

  • PTZ Functionalities

    ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)

  • IR Illuminators

    Built-in IR illuminators, effective up to 5m 9x IR LED

  • On-board Storage

    MicroSD/SDHC/SDXC card slot

  • Video: Compression

    H.264 & MJPEG

  • Video: Maximum Frame Rate

    H.264: 30fps at 1280 x 1024
    MJPEG: 30fps at 1280 x 1024

  • Video: Maximum Streams

    2 simultaneous streams

  • Video: S/N Ratio

    Above 58dB

  • Video: Dynamic Range

    67dB

  • Video: Streaming

    Adjustable resolution, quality and bitrate
    Configurable video cropping for bandwidth saving

  • Video: Image Settings

    Adjustable image size, quality and bit rate
    Time stamp, text overlay, flip & mirror
    Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks
    Scheduled profile settings

  • Audio: Capability

    Audio input

  • Audio: Compression

    G.711

  • Audio: Interface

    Built-in microphone

  • Network: Users

    Live viewing for up to 10 clients

  • Network: Protocols

    IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X

  • Network: Interface

    10Base-T/100 BaseTX Ethernet (RJ-45)

  • Network: ONVIF

    Supported, specification available at www.onvif.org

  • Intelligent Video: Motion Detection

    Triple-window video motion detection

  • Alarm Triggers

    Video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection

  • Alarm Events

    Event notification using HTTP, SMTP, FTP, NAS server
    File upload via HTTP, SMTP, FTP and NAS server

  • Connectors

    RJ-45 for Network/PoE connection
    Digital input

  • LED Indicator

    System power and status indicator

  • Power Input

    IEEE 802.3af PoE Class 2

  • Power Consumption

    Max. 6.5W

  • Casing

    Vandal-proof IK10-rated metal housing

  • Safety Certifications

    CE, LVD, FCC Class B, VCCI, C-Tick

  • Operating Temperature

    -10 to 50 deg. C / 14 to 122 deg. F

  • Operating System

    Microsoft Windows 7/Vista/XP/2000

  • Web Browser

    Mozilla Firefox 7 - 10 (streaming only)
    Internet Explorer 7.x or 8.x

  • Players

    VLC: 1.1.11 or above
    QuickTime: 7 or above

  • Dimensions (Dia. x H)

    3.94 x 2.17" / 100 x 55mm

  • Weight

    10.02oz / 284g

About Vivotek FD8151V

VIVOTEK FD8151V is the latest compact fixed dome camera model suitable for a variety of applications. With mounting as easy as one-two-three and Power over Ethernet (PoE) functionality, setup time is completed in less than 120 seconds, making installation quick and easy. The unit is equipped with a vandal-proof housing and IR illuminators up to 5 meters, making it a feature-rich at a competitive price. The FD8151V features a 1.3-Megapixel sensor enabling viewing resolution of 1280x1024 at 30 fps and also supports the industry-standard H.264 compression technology, drastically reducing file sizes and conserving valuable network bandwidth.

With MJPEG compatibility also included, video streams can also be transmitted in either of these formats for versatile applications. Designed to accept fixed lenses of various focal lengths, FD8151V can be used in various environments, including but not limited to: offices, elevators, campus, chain stores, boutique stores, prisons and health care facilities. At a size of only 100 mm in diameter, VIVOTEK FD8151V is truly an all-in-one surveillance solution that meets a wide variety of needs for indoor surveillance. The package also includes VIVOTEK's 32-channel recording software. With all this and more, the FD8151V is the ideal solution for your surveillance needs.

Vivotek FD8151V Features

  • 1.3-Megapixel CMOS Sensor
  • Compact Design
  • Real-time H.264 and MJPEG Compression (Dual Codec)
  • 30 fps at 1280x1024
  • Supreme Night Visibility
  • Removable IR-cut Filter for Day and Night Function
  • Built-in IR Illuminators, Effective up to 5 Meters
  • Built-in IEEE 802.3af Compliant PoE
  • Built-in MicroSD/SDHC Card Slot for On-board Storage
  • Vandal-proof IK10-rated Housing
  • Selectable Lens (f = 2.5 mm or 4 mm)

Key Features

  • Compact Design
  • 30 fps at 1280x1024

What's in the box:

  • Vivotek FD8151V 1.3MP 2.5mm Day/Night Outdoor Fixed Dome Network Camera
  • CD (User's Manual / Quick Installation Guide / Installation Wizard 2 / ST7501 32-Channel Recording Software)
  • Screws Pack
  • Quick Installation Guide
  • Vivotek 2 Year Warranty
