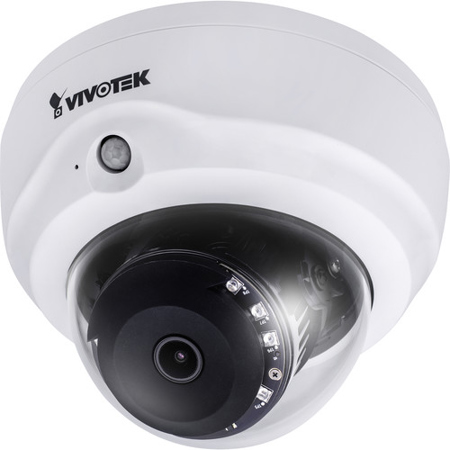

Vivotek FD816B-HT 2MP Indoor Day & Night Fixed Dome Network Camera
Vivotek FD816B-HT Video #1
Vivotek FD816B-HT: Picture 1 thumbnail
See all Vivotek items

Vivotek FD816B-HT 2MP Indoor Day & Night Fixed Dome Network Camera with 2.8-12mm Vari-focal Lens, 1920x1080, 30fps, 30m IR Illuminators, H.264, MJPEG, PoE

SKU: VIFD816BHT

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Vivotek FD816B-HT Specifications

  • CPU

    Multimedia SoC (System-on-Chip)

  • Flash

    1GB

  • RAM

    2GB

  • Image Sensor

    1/2.8" Progressive CMOS

  • Maximum Resolution

    1920 x 1080 (2MP)

  • Lens Type

    Vari-focal

  • Focal Length

    f=2.8-12 mm

  • Aperture

    F1.8 to F2.85

  • Auto-iris

    P-iris

  • Field of View

    42 to 105 deg. (Horizontal)
    24 to 57 deg. (Vertical)
    49 to 131 deg. (Diagonal)

  • Shutter Time

    1/5 to 1/32,000 sec

  • WDR Technology

    WDR

  • Day & Night

    Removable IR-cut filter for day & night function

  • Minimum Illumination

    0.03 Lux at F1.8 (Color)
    0.001 Lux at F1.8 (B/W)

  • Pan/tilt/zoom Functionalities

    ePTZ: 48x digital zoom (4x on IE plug-in, 12x built in)

  • IR Illuminators

    Built-in IR illuminators, effective up to 30m with Smart IR
    IR LED x 8

  • On-board Storage

    Slot type: MicroSD/SDHC/SDXC card slot
    Seamless Recording

  • Video Compression

    H.264 & MJPEG

  • Maximum Frame Rate

    30fps at 1920 x 1080
    In both compression modes

  • Maximum Streams

    4 simultaneous streams

  • S/N Ratio

    58dB

  • Dynamic Range

    100dB

  • Video Streaming

    Adjustable resolution, quality and bitrate, Smart Stream

  • Image Settings

    Adjustable image size, quality and bit rate
    Time stamp, text overlay, flip & mirror
    Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks
    Scheduled profile settings, 3D Noise Reduction, Video Rotation, Defog

  • Audio Capability

    Two-way audio (full duplex)

  • Audio Compression

    G.711, G.726

  • Audio Interface

    Built-in Microphone
    External line input
    External line output

  • Users

    Live viewing for up to 10 clients

  • Protocols

    IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, SSL, TLS

  • Network Interface

    10Base-T / 100BaseTX Ethernet (RJ-45)
    It is highly recommended to use standard Cat. 5e & Cat. 6 cables which are compliant with the 3P/ETL standard

  • ONVIF

    Supported

  • Video Motion Detection

    Five-window video motion detection

  • VCA

    Line crossing detection, field detection, loitering detection

  • Alarm Triggers

    Motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection

  • Alarm Events

    Event notification using digital output, HTTP, SMTP, FTP, NAS server and SD Card
    File upload via HTTP, SMTP, FTP, NAS server and SD card

  • Smart Focus System

    Remote Focus

  • Connectors

    RJ-45 cable connector for Network/PoE connection
    Audio input
    Audio output
    DC 12V power input
    1 x Digital input
    1 x Digital output

  • LED Indicator

    System power and status indicator

  • Power Input

    DC 12V
    IEEE 802.3af/at PoE Class 0

  • Power Consumption

    Maximum 13W

  • Safety Certifications

    CE, LVD, FCC Class B, VCCI, C-Tick, UL

  • Operating Temperature

    Starting Temperature: 32 to 122 deg. F (0 to 50 deg. C)
    Working Temperature: 14 to 122 deg. F (-10 to 50 deg. C)

  • Operating System

    Microsoft Windows 7/8/Vista/XP/2000

  • Web Browser

    Mozilla Firefox 7 to 43 (streaming only)
    Internet Explorer 7/8/9/10/11

  • Other Players

    VLC: 1.1.11 or above
    Quicktime: 7 or above

  • Dimensions

    Dia.: 5.43 x 4.06" (138 x 103mm)

  • Weight

    19.08 oz (541g)

About Vivotek FD816B-HT

VIVOTEK's FD816B-H is a series of indoor dome network cameras equipped with a Full HD sensor enabling viewing resolution of 1920x1080 at a smooth 30 fps. Representing a range of true all-in-one indoor cameras, this series is capable of capturing high quality and high resolution video at up to 2 Megapixels whether in high contrast or in low light environments with WDR and SNV technology.

Further increasing its flexibility, VIVOTEK's FD816B-H series provides options for both fixed focus for simple operation without extra electrical power and remote focus with built-in stepping motors and P-iris to provide precise adjustment remotely. To meet the demands of indoor applications, VIVOTEK's FD816B-H series is armed with a built-in PIR sensor to help detect unexpected events and provide security in real time.

Vivotek FD816B-HT Features

  • 2-Megapixel CMOS Sensor
  • 30fps at 1920 x 1080
  • 2.8 to 12mm, Remote Focus, P-iris Lens
  • Built-in IR Illuminators, Effective up to 30m
  • WDR for Unparalleled Visibility in Extremely Bright and Dark Environments
  • SNV (Supreme Night Visibility) for Low Light Conditions
  • 3D Noise Reduction
  • Two-way Audio
  • Video Rotation for Corridor View
  • Support Installation with AM-712 Indoor Conduit Box
  • PIR
  • VIVOTEK VCA (Video Content Analysis) Support

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Vivotek FD816B-HT 2MP Indoor Day & Night Fixed Dome Network Camera with 2.8-12mm Vari-focal Lens
  • CD (User's Manual
  • Quick Installation Guide
  • Installation Wizard 2)
  • Alignment Sticker/Desiccant Bag
  • Screw Pack
  • Vivotek 3 Year Warranty
