Multimedia SoC (System-on-Chip)
128MB
256MB
1/2.8" Progressive CMOSE
1920 x 1080 (2MP)
Fixed-focal
f=2.8mm
F1.8
109 deg. (horizontal)
61 deg. (vertical)
132 deg. (diagonal)
1/5 to 1/32,000 sec
WDR Pro
0.07 Lux at F1.8 (Color)
ePTZ: 4x digital zoom IE plug-in
Slot type: MicroSD/SDHC/SDXC card slot
Seamless Recording
H.264 & MJPEG
30 fps at 1920x1080
3 simultaneous streams
58.48dB
100dB
Adjustable resolution, Quality and bitrate; Smart Stream
Adjustable image size, quality and bit rate
Time stamp, text overlay, flip & mirror
Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks
Scheduled profile settings, 3DNR
One-way Audio
G.711, G.726
Built-in Microphone
16.40' (5m)
Live viewing for up to 10 clients
IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, SSL, TLS
10Base-T / 100BaseTX Ethernet (RJ-45)
It is highly recommended to use standard Cat. 5e & Cat. 6 cables which are compliant with the 3P/ETL standard
Supported
Five-window video motion detection
Motion detection, manual trigger, periodical trigger, system boot, recording notification, camera tampering detection, audio detection
Event notification using HTTP, SMTP, FTP, NAS server and SD Card
RJ-45 for Network/PoE connection
System power and status indicator
IEEE 802.3af PoE Class 1
Maximum 3.3W
CE, LVD, FCC Class B, VCCI, C-Tick, UL
Starting Temperature: 32 to 113 deg. F (0 to 45 deg. C)
Working Temperature: 32 to 113 deg. F (0 to 45 deg. C)
Microsoft Windows 8/7/Vista/XP/2000
Mozilla Firefox 7 to 43 (streaming only)
Internet Explorer 7/8/9/10/11
VLC: 1.1.11 or above
Quicktime: 7 or above
Dia.: 2.36 x 4.53" (60 x 115mm)
4.87 oz (138g)

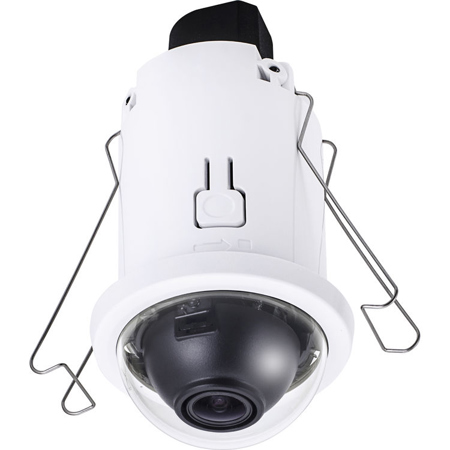

The VIVOTEK FD816C-HF2 is a recessed-mount fixed dome network camera offering up to 30fps at 2-Megapixel resolution with superb image quality, even in the darkest hours of the night. Due to its compact size, the camera is able to blend into any surroundings such as banks, retail stores, restaurants, offices and more.
Featuring the improved Wide Dynamic Range Technology, WDR Pro, the FD816C-HF2 provides superior visibility in high-contrast lighting environments with a 2-shutter capture method and with SNV technology, it makes high-quality full-color surveillance video possible under low-light conditions. At the other end of the spectrum, 3D Noise Reduction Technology allows users to enjoy an increased level of image detail in extremely dark environments without consuming or wasting unreasonably high bandwidth.
To dramatically reduce file sizes and conserve valuable network bandwidth, the FD816C-HF2 supports Smart Stream and industry-standard H.264 compression technology. Combined with the ST7501 multi-lingual 32-channel recording software, users can quickly and easily set up an IP surveillance system that's simple to operate but hard to beat.
