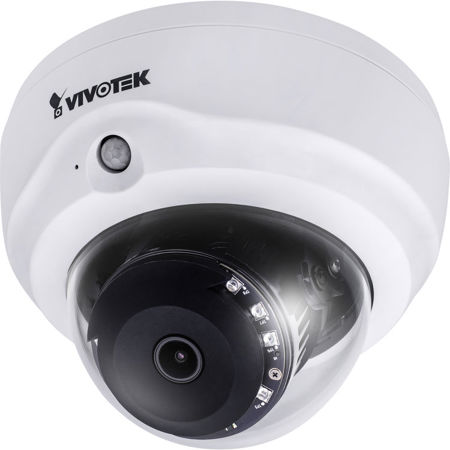

Vivotek FD8182-T 5MP Indoor Day & Night Fixed Dome Network Camera with 3-9mm Vari-focal Lens, 2560x1920, 15fps, 30m IR Illuminators, H.264, MJPEG, PoE

SKU: VIFD8182T

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Vivotek FD8182-T Specifications

  • CPU

    Multimedia SoC (System-on-Chip)

  • Flash

    1GB

  • RAM

    4GB

  • Image Sensor

    1/3.2" Progressive CMOS

  • Maximum Resolution

    2560 x 1920 (5MP)

  • Lens Type

    Vari-focal

  • Focal Length

    f=3 to 9mm

  • Aperture

    F1.2 to F2.3

  • Auto-iris

    P-iris

  • Field of View

    35 to 78 deg. (Horizontal)
    27 to 54 deg. (Vertical)
    44 to 101 deg. (Diagonal)

  • Shutter Time

    1/5 to 1/32,000 sec

  • WDR Technology

    WDR Enhanced

  • Day & Night

    Removable IR-cut filter for day & night function

  • Minimum Illumination

    0.04 Lux at F1.2 (Color)
    0.001 Lux at F1.2 (B/W)

  • Pan/tilt/zoom Functionalities

    ePTZ: 48x digital zoom (4x on IE plug-in, 12x built in)

  • IR Illuminators

    Built-in IR illuminators, effective up to 30m with Smart IR
    IR LED x 8

  • On-board Storage

    Slot type: Micro SD/SDHC/SDXC card slot
    Seamless Recording

  • Video Compression

    H.264 & MJPEG

  • Maximum Frame Rate

    15fps at 2560 x 1920
    15fps at 2048 x 1536
    30fps at 1920 x 1080
    In both compression modes

  • Maximum Streams

    4 simultaneous streams

  • S/N Ratio

    67dB

  • Dynamic Range

    70dB

  • Video Streaming

    Adjustable resolution, quality and bitrate; Smart Stream

  • Image Settings

    Adjustable image size, quality and bit rate, Time stamp, text overlay, flip & mirror, Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks, Scheduled profile settings, 3D noise reduction, video rotation, defog

  • Audio Capability

    Two-way Audio (full duplex)

  • Audio Compression

    G.711, G.726

  • Audio Interface

    Built-in Microphone
    External line input
    External line output

  • Users

    Live viewing for up to 10 clients

  • Protocols

    IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, SSL, TLS

  • Network Interface

    10Base-T / 100BaseTX Ethernet (RJ-45)
    It is highly recommended to use standard Cat. 5e & Cat. 6 cables which are compliant with the 3P/ETL standard

  • ONVIF

    Supported

  • Video Motion Detection

    Five-window video motion detection

  • VCA

    Line crossing detection, field detection, loitering detection

  • Alarm Triggers

    Motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection

  • Alarm Events

    Event notification using digital output, HTTP, SMTP, FTP, NAS server and SD Card
    File upload via HTTP, SMTP, FTP, NAS server and SD card

  • Smart Focus System

    Remote Focus

  • Connectors

    RJ-45 cable connector for Network/PoE connection
    Audio input
    Audio output
    DC 12V power input
    1 x Digital input
    1 x Digital output

  • LED Indicator

    System power and status indicator

  • Power Input

    DC 12V
    IEEE 802.3af/at PoE Class 0

  • Power Consumption

    Maximum 9.5W

  • Safety Certifications

    CE, LVD, FCC Class B, VCCI, C-Tick, UL

  • Operating Temperature

    Starting Temperature: 32 to 122 deg. F (0 to 50 deg. C)
    Working Temperature: 14 to 122 deg. F (-10 to 50 deg. C)

  • Operating System

    Microsoft Windows 7/8/Vista/XP/2000

  • Web Browser

    Mozilla Firefox 7 to 43 (streaming only)
    Internet Explorer 7/8/9/10

  • Other Players

    VLC: 1.1.11 or above
    QuickTime: 7 or above

  • Dimensions

    Dia.: 5.43 x 4.06" (138 x 103mm)

  • Weight

    19.08 oz (541g)

About Vivotek FD8182-T

VIVOTEK's FD8182-F2 is an economic professional indoor fixed dome network cameras in VIVTOTEK's 5MP V-Pro Lite series. Design to provide higher resolution and sharper image with more detail, the FD8182-F2 offers up to 15fps at 5-Megapixel or 30fps at 1080p resolution. With powerful 3D Noise Reduction technology and Smart Stream technology, the FD8182-F2 can also optimize resolution for a desired object or area to maximize efficiency of bandwidth usage.

To meet the demands of indoor applications, VIVOTEK's FD8182-F2 provides fixed focus used for simple operation without additional power. Further, equipped with a PIR sensor to help detect unexpected events and provide the appropriate response in real time.

With the highly flexible VADP (VIVOTEK Application Development Platform), users can extend the features of this FD8182 series by adding third-party applications for the FD8182-F2 and the FD8182-T. Thus, the FD8182 series is not only equipped with multiple focusing methods, but is also highly flexible and able to be expanded to meet the requirements of a wide variety of indoor applications.

Vivotek FD8182-T Features

  • 5-Megapixel CMOS Sensor
  • 15fps at 2560 x 1920
  • 3 to 9mm, Remote Focus, P-iris Lens
  • Built-in IR Illuminators, Effective up to 30m
  • WDR Enhanced for Unparalleled Visibility in Bright and Dark Environments
  • Smart Stream to Optimize Bandwidth Efficiency
  • 3D Noise Reduction
  • Two-way Audio
  • PIR
  • Video Rotation for Corridor View
  • Support Installation with AM-712 Indoor Conduit Box
  • VIVOTEK VCA (Video Content Analysis) Support

What's in the box:

  • Vivotek FD8182-T 5MP Indoor Day & Night Fixed Dome Network Camera with 3-9mm Vari-focal Lens
  • CD (User's Manual
  • Quick Installation Guide
  • InstallationWizard 2)
  • Alignment Sticker/Desiccant Bag
  • Screw Pack
  • Vivotek 3 Year Warranty
