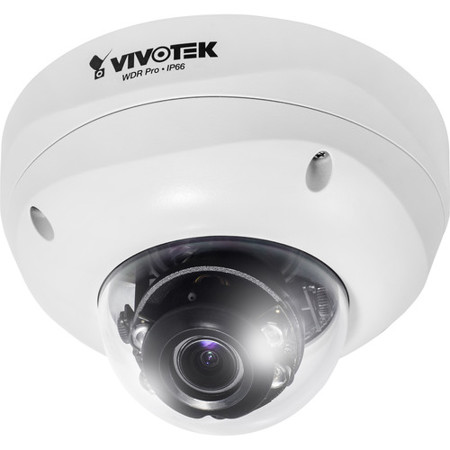

Vivotek FD8365HV 2MP Outdoor Day & Night Fixed Dome Network Camera with 3-10mm Vari-focal Lens, 1920x1080, 30fps, 20m IR Illuminators, H.264, MJPEG, PoE, Vandal Proof

SKU: VIFD8365HV

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Vivotek FD8365HV Specifications

  • CPU

    Multimedia SoC (System-on-Chip)

  • Flash

    256MB

  • RAM

    384MB

  • Image sensor

    1/2.8" Progressive CMOS

  • Maximum Resolution

    1920 x 1080 (2MP)

  • Lens Type

    Vari-focal, remote focus

  • Focal Length

    f=3 to 10mm

  • Aperture

    F1.3 to F2.5

  • Auto-iris

    P-iris/DC-Iris(Reserved)

  • Field of View

    33 to 104 deg. (horizontal)
    19 to 56 deg. (vertical)
    39 to 121 deg. (diagonal)

  • Shutter Time

    1/5 sec to 1/10,000 sec

  • WDR Technology

    WDR Pro

  • Day & Night

    Removable IR-cut filter for day & night function
    Smart IR Technology to Avoid Overexposure

  • Minimum Illumination

    0.16 Lux at F1.3 (Color)
    0.001 Lux at F1.3 (B/W)

  • Pan / Tilt / Zoom

    ePTZ: 48x digital zoom (4x on IE plug-in,12x built-in)

  • IR Illuminators

    Built-in IR illuminators, effective up to 20m
    IR LED x 4, with Smart IR Technology

  • On-board Storage

    MicroSD/SDHC/SDXC card slot

  • Video Compression

    H.264, MJPEG

  • Maximum Frame Rate

    In both compression modes: 30fps at 1280 x 1024
    60 fps at 1920x1080 (One-stream mode only)

  • Maximum Streams

    2 simultaneous streams

  • S/N Ratio

    62dB

  • Dynamic Range

    100dB

  • Video Streaming

    Adjustable resolution, quality and bitrate

  • Image Settings

    Time stamp, text overlay, flip & mirror
    Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks, scheduled profile settings, 3D noise reduction, seamless recording, video rotation, EIS

  • Audio Capability

    Two-way Audio (full duplex)

  • Audio Compression

    AAC, G.711, G.726

  • Audio Interface

    External microphone input
    Audio output

  • Users

    Live viewing for up to 10 clients

  • Protocols

    IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP

  • Network Interface

    10Base-T / 100BaseTX Ethernet (RJ-45)

  • ONVIF

    Supported

  • Video Motion Detection

    Triple-window video motion detection

  • Alarm Triggers

    Video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection

  • Alarm Events

    Event notification using digital output, HTTP, SMTP, FTP and NAS server
    File upload via HTTP, SMTP, FTP and NAS server

  • Smart Focus System

    Remote focus

  • Connectors

    RJ-45 for Network/PoE connection
    Audio input/output
    AV output
    AC 24V power input
    DC 12V power input
    1 x Digital input
    1 x Digital output

  • LED Indicator

    System power and status indicator

  • Power Input

    DC12V/AC24V
    IEEE 802.3af PoE

  • Power Consumption

    DC Maximum 7.6W
    AC Maximum 8.6W
    PoE Maximum 10.6W

  • Casing

    Weather-proof IP66-rated housing
    Vandal-proof IK10-rated housing

  • Safety Certifications

    CE, C-Tick, FCC Class A, LVD, VCCI, UL

  • Operating Temperature

    Starting Temperature: 14 to 122 deg. F (-10 to 50 deg. C)
    Working Temperature: -4 to 122 deg. F (-20 to 50 deg. C)

  • Operating System

    Microsoft Windows 7/8/Vista/XP/2000

  • Web Browser

    Mozilla Firefox 7 to 43 (streaming only)
    Internet Explorer 7/8/9/10

  • Other Players

    VLC: 1.1.11 or above
    QuickTime: 7 or above

  • Dimensions

    Dia.: 6.81 x 4.53" (173 x 115mm)

  • Weight

    42.86 oz (1215g)

About Vivotek FD8365HV

VIVOTEK FD8365HV is a professional outdoor network dome camera offering 30 fps @ 2-Megapixel resolution with superb image quality. Featuring the Wide Dynamic Range Technology WDR Pro, it provides improved visibility in the extremely dark & light environment. Combined 3D Noise Reduction Technology, which enables the FD8365HV to capture clear, polished video under low-light conditions and reduce bandwidth from sensor noise, users can identify an increased level of image details in pretty bright as well as dark environments.

Additionally, as a professional day/night camera, FD8365HV adopts a Smart IR technology which prevents overexposure and provides noise reduction to adjust the IR lighting intensity instantaneously based on changes in lighting in the ambient environment.

To provide top-notch image quality, FD8365HV also comes with a P-iris lens, which controls the iris with extreme precision with its built-in stepper motor. By using software controls, the lens maintains the iris opening at an optimal level at all times, resulting in superior sharpness and depth of field as well as image quality. Furthermore, for installers, properly adjusting the focus of a megapixel network camera can be difficult due to the level of image detail. Thus, FD8365HV is also designed with VIVOTEK's Smart Focus System to make installation and adjustment easier by using remote focus and zoom adjustment.

The camera's IP66-rated housing is designed to help the camera body withstand rain and dust and high pressure water jets from any direction while the IK10-rated vandal proof rating provides protection against the vandalism and impact.

Vivotek FD8365HV Features

  • 2-Megapixel CMOS Sensor
  • 30fps at 1920 x 1080
  • Motorized, P-iris Lens & DC-iris
  • Removable IR-cut Filter for Day & Night Function
  • Built-in IR Illuminators, Effective up to 20m
  • Smart IR Technology to Avoid Overexposure
  • 3D Noise Reduction for Low-light Conditions
  • WDR Pro (100dB) to Provide Improved Visibility in Extremely Bright or Dark Environments
  • Smart Focus System for Remote and Precise Focus Adjustment
  • Two-way Audio
  • Weather-proof IP66-rated and Vandal-proof IK10-rated Housing
  • Video Rotation for Corridor Format
  • EIS (Electronic Image Stabilization) to Control Image Stability

What's in the box:

  • Vivotek FD8365HV 2MP Outdoor Day & Night Fixed Dome Network Camera with 3-10mm Vari-focal Lens
  • CD (User's Manual
  • Quick Installation Guide
  • Installation Wizard 2
  • ST7501 32-Channel Recording Software)
  • Mounting Plate
  • Alignment Sticker
  • L-Type Hex Key Wrench
  • Desiccant Bag
  • Screws
  • Hex Nut
  • Double-Sided Tape
  • AV Cable
  • Waterproof Connector & Bushing
  • DC Connector
  • Vivotek 3 Year Warranty
