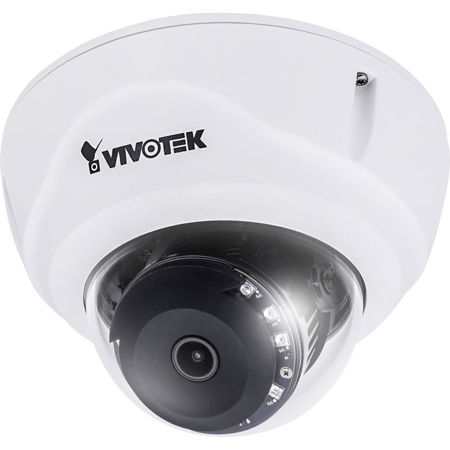

Vivotek FD8382-VF2 5MP Outdoor Day & Night Fixed Dome Network Camera with 2.8mm Fixed-focal Lens, 2560x1920, 15fps, 30m IR Illuminators, H.264, MJPEG, PoE

SKU: VIFD8382VF2

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Vivotek FD8382-VF2 Specifications

  • CPU

    Multimedia SoC (System-on-Chip)

  • Flash

    1GB

  • RAM

    4GB

  • Image Sensor

    1/3.2" Progressive CMOS

  • Maximum Resolution

    2560 x 1920 (5MP)

  • Lens Type

    Fixed-focal

  • Focal Length

    f=2.8mm

  • Aperture

    F1.8

  • Field of View

    90 deg. (Horizontal)
    67 deg. (Vertical)
    118 deg. (Diagonal)

  • Shutter Time

    1/5 to 1/32,000 sec

  • WDR Technology

    WDR Enhanced

  • Day & Night

    Removable IR-cut filter for day & night function

  • Minimum Illumination

    0.39 Lux at F1.8 (Color)
    0.001 Lux at F1.8 (B/W)

  • Pan/tilt/zoom Functionalities

    ePTZ: 48x digital zoom (4x on IE plug-in, 12x built in)

  • IR Illuminators

    Built-in IR illuminators, effective up to 30m with Smart IR
    IR LED x 8

  • On-board Storage

    Slot type: MicroSD/SDHC/SDXC card slot
    Seamless Recording

  • Video Compression

    H.264 & MJPEG

  • Maximum Frame Rate

    15fps at 2560 x 1920
    15fps at 2048 x 1536
    30fps at 1920 x 1080
    In both compression modes

  • Maximum Streams

    4 simultaneous streams

  • S/N Ratio

    67dB

  • Dynamic Range

    70dB

  • Video Streaming

    Adjustable resolution, quality and bitrate, Smart Stream

  • Image Settings

    Adjustable image size, quality and bit rate, Time stamp, text overlay, flip & mirror, Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks, Scheduled profile settings, 3D Noise Reduction, Video Rotation, Defog

  • Audio Capability

    Two-way audio (full duplex)

  • Audio Compression

    G.711, G.726

  • Audio Interface

    External microphone input
    External line output

  • Users

    Live viewing for up to 10 clients

  • Protocols

    IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, SSL, TLS

  • Network Interface

    10Base-T / 100BaseTX Ethernet (RJ-45)
    It is highly recommended to use standard Cat. 5e & Cat. 6 cables which are compliant with the 3P/ETL standard

  • ONVIF

    Supported

  • Video Motion Detection

    Five-window video motion detection

  • VCA

    Line crossing detection, field detection, loitering detection

  • Alarm Triggers

    Motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection

  • Alarm Events

    Event notification using digital output, HTTP, SMTP, FTP, NAS server and SD Card
    File upload via HTTP, SMTP, FTP, NAS server and SD card

  • Connectors

    RJ-45 cable connector for Network/PoE connection
    Audio input
    Audio output
    DC 12V power input
    1 x Digital input
    1 x Digital output

  • LED Indicator

    System power and status indicator

  • Power Input

    DC 12V
    IEEE 802.3af/at PoE Class 0

  • Power Consumption

    Maximum 9W

  • Casing

    Weather-proof IP66-rated housing
    Vandal-proof IK10-rated metal housing

  • Safety Certifications

    CE, LVD, FCC Class A, VCCI, C-Tick

  • Operating Temperature

    Starting Temperature: 14 to 122 deg. F (-10 to 50 deg. C)
    Working Temperature: -4 to 122 deg. F (-20 to 50 deg. C)

  • Operating System

    Microsoft Windows 7/8/Vista/XP/2000

  • Web Browser

    Mozilla Firefox 7 to 43 (streaming only)
    Internet Explorer 7/8/9/10

  • Other Players

    VLC: 1.1.11 or above
    QuickTime: 7 or above

  • Dimensions

    Dia.: 6.10 x 4.06" (155 x 103mm)

  • Weight

    32.45 oz (920g)

About Vivotek FD8382-VF2

VIVOTEK's FD8382 is a series of economical but professional outdoor fixed dome network cameras. They join the ranks of VIVTOTEK's 5MP Lite series which offer up to 15 fps at 5-Megapixel or 30 fps at 1080p resolution at a competitive price. To create the perfect focus required to reap the benefits of higher resolutions, VIVOTEK's FD8382 series provides the options of both fixed focus, used for simple operation without additional power and remote focus with built-in stepping motors and P-iris for precise adjustment remotely.

Designed to provide higher resolution, the FD8382 series is an ideal solution for those who demand sharper images with more details. With powerful 3D Noise Reduction technology and Smart Stream technology, the FD8382 series can also optimize resolution for a desired object or area to maximize the efficiency of bandwidth usage.

To ensure higher resolution even in outdoor and harsh environments, VIVOTEK's FD8382 series is also armed with IP66-rated housing to help the camera body withstand rain, dust and even high pressure water jets from any direction, while its IK10-rated housing provides protection against acts of vandalism or other impacts.

Vivotek FD8382-VF2 Features

  • 5-Megapixel CMOS Sensor
  • 15fps at 2560 x 1920
  • Built-in IR Illuminators, Effective up to 30 Meters
  • WDR Enhanced for Unparalleled Visibility in Bright and Dark Environments
  • Smart Stream to Optimize Bandwidth Efficiency
  • 3D Noise Reduction
  • Two-way Audio
  • Video Rotation for Corridor View
  • Weather-proof IP66-rated and Vandal-proof IK10-rated Housing
  • Support Installation with AM-713 Outdoor Conduit Box
  • VIVOTEK VCA (Video Content Analysis) Support

What's in the box:

  • Vivotek FD8382-VF2 5MP Outdoor Day & Night Fixed Dome Network Camera with 2.8mm Fixed-focal Lens
  • CD (User's Manual
  • Quick Installation Guide
  • Installation Wizard 2)
  • Alignment Sticker/Desiccant Bag
  • Screw Pack
  • Vivotek 2 Year Warranty
