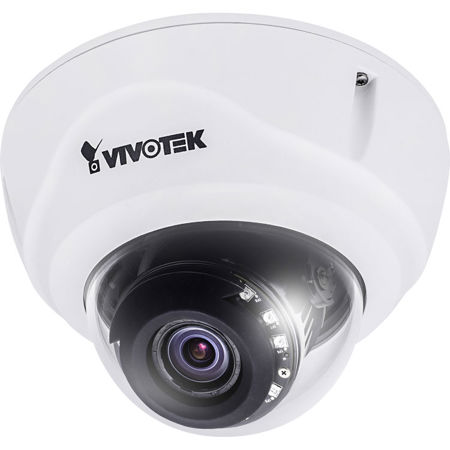

Vivotek FD9371-EHTV 3MP Outdoor Day & Night Fixed Dome Network Camera with 3-9mm Vari-Focal Lens, 2048x1536, 30fps, 30m IR Illuminators, H.265, H.264, MJPEG, PoE

SKU: VIFD9371EHTV

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Vivotek FD9371-EHTV 3MP Outdoor Day & Night Fixed Dome Network Camera Specifications

  • CPU

    Multimedia SoC (System-on-Chip)

  • Flash

    128MB

  • RAM

    512MB

  • Image Sensor

    1/2.8" Progressive CMOS

  • Maximum Resolution

    2048 x 1536 (3 MP)

  • Lens Type

    Vari-Focal

  • Focal Length

    f=3 to 9mm

  • Aperture

    F1.2 to F2.3

  • Auto-iris

    P-iris

  • Field of View

    41 to 86 deg. (Horizontal)
    31 to 64 deg. (Vertical)
    51 to 113 deg. (Diagonal)

  • Shutter Time

    1/5 to 1/16,000 sec

  • WDR Technology

    WDR Pro

  • Day & Night

    Removable IR-cut filter for day & night function

  • Minimum Illumination

    0.01 Lux at F1.2 (Color)
    0.001 Lux at F1.2 (B/W)

  • Pan/tilt/zoom Functionalities

    ePTZ: 48x digital zoom (4x on IE plug-in, 12x built in)

  • IR Illuminators

    30m

  • On-board Storage

    Slot type: MicroSD/SDHC/SDXC card slot
    Seamless Recording

  • Video Compression

    H.265 & H.264 & MJPEG

  • Maximum Frame Rate

    H.265 & H.264: 30fps at 2048 x 1536
    MJPEG: 15fps at 2048 x 1536

  • Maximum Streams

    3 simultaneous streams

  • S/N Ratio

    43dB

  • Dynamic Range

    100dB

  • Video Streaming

    Adjustable resolution, quality and bitrate, Smart Stream II

  • Image Settings

    Time stamp, text overlay, flip & mirror
    Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks
    Scheduled profile settings, 3DNR, video rotation, defog, DIS

  • Audio Capability

    Two-way audio (full duplex)

  • Audio Compression

    G.711, G.726

  • Audio Interface

    External microphone input
    Audio output

  • Users

    Live viewing for up to 10 clients

  • Protocols

    IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, SSL, TLS

  • Network Interface

    10Base-T / 100BaseTX Ethernet (RJ-45)
    It is highly recommended to use standard Cat. 5e & Cat. 6 cables which are compliant with the 3P/ETL standard

  • ONVIF

    Supported

  • Video Motion Detection

    Five-window video motion detection

  • VCA

    Line crossing detection, field detection, loitering detection

  • Alarm Triggers

    Motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection

  • Alarm Events

    Event notification using digital output, HTTP, SMTP, FTP, NAS server and SD Card
    File upload via HTTP, SMTP, FTP, NAS server and SD card

  • Smart Focus System

    Remote Focus

  • Connectors

    RJ-45 cable connector for Network/PoE connection
    Audio input
    Audio output
    DC 12V power input
    1 x Digital input
    1 x Digital output

  • LED Indicator

    System power and status indicator

  • Power Input

    DC 12V
    IEEE 802.3af/at PoE Class 0

  • Power Consumption

    Maximum 24.7W (Heater on)

  • Casing

    Weather-proof IP66-rated housing
    Vandal-proof IK10-rated housing

  • Safety Certifications

    CE, LVD, FCC Class A, VCCI, C-Tick, UL

  • Operating Temperature

    Starting Temperature: -40 to 122 deg. F (-40 to 50 deg. C)
    Working Temperature: -58 to 122 deg. F (-50 to 50 deg. C)

  • Humidity

    90%

  • Operating System

    Microsoft Windows 7/8/Vista/XP/2000

  • Web Browser

    Mozilla Firefox 7 to 43 (streaming only)
    Internet Explorer 7/8/9/10

  • Other Players

    VLC: 1.1.11 or above
    QuickTime: 7 or above

  • Dimensions

    Dia.: 6.10 x 4.06" (155 x 103mm)

  • Weight

    32.73 oz (928g)

About Vivotek FD9371-EHTV 3MP Outdoor Day & Night Fixed Dome Network Camera

VIVOTEK's FD9371-EHTV is a brand-new professional H.265 high-efficiency outdoor dome network camera, offering 30 fps at 3-Megapixel with outstanding image quality. Employing H.265 technology enables the camera to provide higher and more efficient image compression rates than previous H.264 systems. In addition, VIVOTEK's sophisticated Smart Stream II enables the camera to optimize resolution for a desired object or area and therefore to maximize efficiency of bandwidth usage. Combining both H.265 and Smart Stream II, the FD9371-EHTV can reduce both bandwidth and storage consumption up to 80% while maintaining image quality of the high standard.

As the professional day/night camera, the FD9371-EHTV is also equipped with WDR Pro and SNV, empowering users to enjoy superb image-detail in any lighting condition. Additionally, IP66-rated housing ensures the ability of these advanced cameras to withstand rain and dust, thus guaranteeing smooth operation even under a multitude of harsh weather conditions. The cameras' IK10-rated housing can also provide protection against acts of vandalism and other impacts. Finally, a wide operating temperature range further enhances the performance and reliability of the FD9371-EHTV in both extremely cold and warm weather, even while using PoE.

Vivotek FD9371-EHTV 3MP Outdoor Day & Night Fixed Dome Network Camera Features

  • H.265 Compression Technology
  • 1/2.8" Progressive CMOS Sensor
  • 30fps at 2048 x 1536
  • Smart Stream II to Optimize Bandwidth Efficiency
  • WDR Pro for Unparalleled Visibility in High Contrast Environments
  • Built-in IR Illuminators, Effective up to 30m
  • Remote Focus for Easy Focus Adjustments
  • Weather-proof IP66-rated and Vandal-proof IK10-rated Housing
  • Extreme Weather Support with PoE
  • SNV (Supreme Night Visibility) for Low Light Conditions
  • Video Rotation for Corridor View
  • P-iris Lens
  • DIS (Digital Image Stabilization)

What's in the box:

  • Vivotek FD9371-EHTV 3MP Outdoor Day & Night Fixed Dome Network Camera with 3-9mm Vari-Focal Lens
  • CD (User's Manual
  • Quick Installation Guide
  • Installation Wizard 2
  • VAST Software)
  • Alignment Sticker
  • Desiccant Bag
  • Screw Pack
  • Water-Proof Connectors
  • Vivotek 3 Year Warranty
