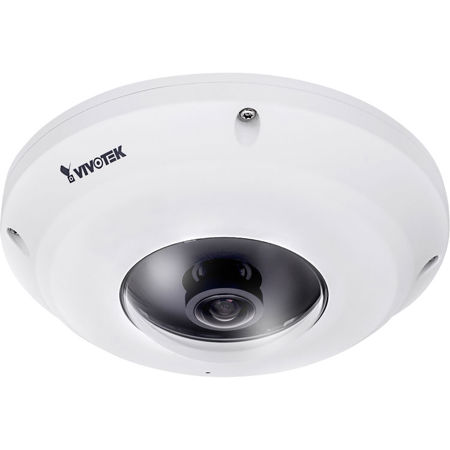

Vivotek FE9381-EHV 5MP Outdoor Day & Night 360deg. Surround View Fisheye Dome Network Camera with 1.47mm Fixed-focal Lens, 1920x1920, 30fps, H.265, H.264, MJPEG, PoE, Vandal-Proof

SKU: VIFE9381EHV

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Vivotek FE9381-EHV Specifications

  • CPU

    Multimedia SoC (System-on-Chip)

  • Flash

    128MB

  • RAM

    512MB

  • Image Sensor

    1/1.8" Progressive CMOS in 3096 x 2094

  • Maximum Resolution

    1920 x 1920

  • Lens Type

    Fixed-focal

  • Focal Length

    f=1.47mm

  • Aperture

    F2.2

  • Field of View

    180 deg. (Horizontal)
    180 deg. (Vertical)
    180 deg. (Diagonal)

  • Shutter Time

    1/5 to 1/32,000 sec

  • WDR Technology

    WDR Pro

  • Day & Night

    Removable IR-cut filter for day & night function

  • Minimum Illumination

    0.18 Lux at F2.2 (Color)
    0.001 Lux at F2.2 (B/W)

  • Pan/tilt/zoom Functionalities

    ePTZ: 48x digital zoom (4x on IE plug-in, 12x built in)

  • On-board Storage

    Slot type: MicroSD/SDHC/SDXC card slot
    Seamless Recording

  • Video Compression

    H.265, H.264, MJPEG

  • Maximum Frame Rate

    H.265 & H.264: 30fps at 1920 x 1920
    MJPEG: 12fps at 1920 x 1920

  • Maximum Streams

    4 simultaneous streams

  • S/N Ratio

    42.3dB

  • Dynamic Range

    100dB

  • Video Streaming

    Adjustable resolution, quality and bitrate, Smart Stream II

  • Image Settings

    Time stamp, text overlay, flip & mirror
    Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks
    Scheduled profile settings, 3DNR, video rotation, defog, DIS

  • Audio Capability

    Two-way audio (full duplex)

  • Audio Compression

    G.711, G.726

  • Audio Interface

    Built-in microphone
    External microphone input
    External line output

  • Effective Range

    16.40' (5m)

  • Users

    Live viewing for up to 10 clients

  • Protocols

    IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, SSL, TLS, NTCIP

  • Network Interface

    10Base-T / 100BaseTX Ethernet (RJ-45)
    It is highly recommended to use standard Cat. 5e & Cat. 6 cables which are compliant with the 3P/ETL standard

  • ONVIF

    Supported

  • Video Motion Detection

    Five-window video motion detection

  • Alarm Triggers

    Motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection

  • Alarm Events

    Event notification using digital output, HTTP, SMTP, FTP, NAS server and SD Card
    File upload via HTTP, SMTP, FTP, NAS server and SD card

  • Connectors

    RJ-45 cable connector for Network/PoE connection
    1 x Audio input
    1 x Audio output
    1 x DC 12V power input
    1 x Digital input
    1 x Digital output

  • LED Indicator

    System power and status indicator

  • Power Input

    DC 12V
    IEEE 802.3af/at PoE Class 0

  • Power Consumption

    Maximum 13W

  • Casing

    Weather-proof IP66-rated housing
    Vandal-proof IK10-rated metal housing

  • Safety Certifications

    CE, LVD, FCC Class A, VCCI, C-Tick, UL, EN50155

  • Operating Temperature

    Starting Temperature: -13 to 122 deg. F (-25 to 50 deg. C)
    Working Temperature: -40 to 122 deg. F (-40 to 50 deg. C)

  • Humidity

    90%

  • Operating System

    Microsoft Windows 7/8/Vista/XP/2000

  • Web Browser

    Mozilla Firefox 7 to 43 (streaming only)
    Internet Explorer 7/8/9/10

  • Other Players

    VLC: 1.1.11 or above
    QuickTime: 7 or above

  • Dimensions

    Dia.: 5.71 x 1.97" (145 x 50mm)

  • Weight

    19.33 oz (548g)

About Vivotek FE9381-EHV

VIVOTEK's FE9181-H and FE9381-EHV are two unique H.265 fisheye fixed dome network cameras, both featuring a detailed 5-Megapixel CMOS sensor that produces superb image clarity. By employing H.265 compression technology and VIVOTEK's Smart Stream II technology, these cameras can reduce both bandwidth and storage consumption by up to 80% while retaining the highest standard of image quality. Equipped with a fisheye lens for 180deg. panoramic view (wall mount) or 360deg. surround view (ceiling/floor mount) with zero blind spots, the cameras are able to provide coverage of wide, open areas, such as airports, shopping malls, retail stores, offices and more.

The FE9181-H and the FE9381-EHV are both equipped with a removable IRcut filter and WDR Pro technology, empowering the cameras to maintain optimal image quality around the clock and unparalleled visibility in highcontrast lighting environments. Moreover, the FE9381-EHV is designed with full EN50155 compliance, vandal-proof IK10-rated and weather-proof IP66- rated housing, ensuring that the camera can withstand shock, vibration, humidity, dust and temperature fluctuations and maintain stable and reliable video capture during vehicle movement.

Vivotek FE9381-EHV Features

  • H.265 Compression Technology
  • 5-Megapixel CMOS Sensor
  • 30fps at 1920 x 1920
  • 1.47mm Fisheye Lens for 180 deg. Panoramic View and 360 deg. Surround View
  • Removable IR-cut Filter for Day & Night Function
  • WDR Pro for Unparalleled Visibility in High Contrast Environments
  • Smart Stream II to Optimize Bandwidth Efficiency
  • EN50155 Compliance for Professional Mobile Surveillance
  • Vandal-proof IK10-rated and Weather-proof IP66-rated Housing
  • ePTZ for Data Efficiency
  • Built-in 802.3af Compliant PoE
  • Support Client Side Dewarping
  • Pixel Counter for Image Clarity Measurement

What's in the box:

  • Vivotek FE9381-EHV 5MP Outdoor Day & Night 360deg. Surround View Fisheye Dome Network Camera with 1.47mm Fixed-focal Lens
  • CD (User's Manual
  • Quick Installation Guide
  • Installation Wizard 2
  • VAST Software)
  • Alignment Sticker
  • Desiccant Bag
  • Screw Driver
  • Screws Pack
  • I/O Cable
  • Mounting Bracket
  • Vivotek 3 Year Warranty
