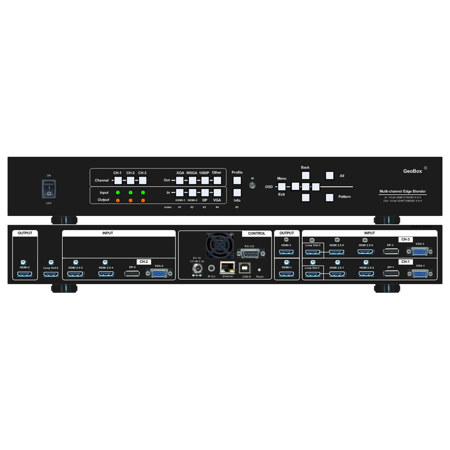

VigilLink GeoBox M810 Series 4K Edge Blending Processor with PIP & POP 3-Channel

M810 is an upgraded model from the M80x series. The significant difference is to support 17x9 geometry alignment and 120x68 control points fine-tuning in the IR controller & PC Tool. A completely new GCT PC tool has been adopted. It provides a more friendly interface for PC tool operation and increases accuracy. Users can swap between GCT and IR control operations at any time. It supports up to 7680x2160/30Hz input resolution without additional settings.

M810 provides multiple processing modules to control from 1 to 4 projectors in one box. M811 is integrated with one processing module to control one projector, M812 for 2 projectors, M813 for 3 projectors, and M814 for 4 projectors. It was designed for sophisticated edge blending, image warping, and stacking. One M814 can execute 4 projector edge-blending without any additional equipment or splitter. Multiple M810 can be cascaded for large-scale display.

4 input ports (2x HDMI2.0, 1x DP1.2, 1x VGA) and 1x HDMI2.0 outputs are designed in each processing module. The digital input supports up to 7680x2160 @30Hz, 7680x1200 @60Hz/4096x2160 @60Hz with 4:4:4 full-color sampling. Output supports up to WUXGA/2048x1080 @60Hz. It is integrated with a 10-bit high-end processor, motion adaptive de-interlace, low angle smooth algorithm, 3:2/2:2 pull-down, and supports non-VESA standard input timings. Programmable EDID can optimize input timing to get the best video result.

Advanced warp technology is embedded in M810. Users can use an IR controller, USB, Webpage, and Ethernet to perform edge blending and sophisticated geometry alignment up to 120x68 control points. Linearity Grid Line Adjustment for complete line moved up to the 17x9 control point and "W" type Corner Wall image adjustment are new functions in geometry alignment. Separate R, G, and B gamma correction for edge blending region color fine-tuning, individual color correction for each output, and 9 regions black level uplift to compensate for the projector's light leakage are standard functions in M810. Users can see real-time geometry and color adjustment to get optimized results.

HDMI loop out supports daisy chain connection up to 8k/2k @30Hz / 8k/1k @60Hz, allowing large displays with multiple units cascaded. The video wall function crops allocate source images for each projector, and sets overlap pixels for edge blending. Complete curved edge blending can be achieved through an IR controller, USB, or Ethernet without additional devices except for signal sources and projectors.

PIP (picture in picture) and POP (side by side) are standard functions. PIP image size is from 320x180 up to 1920x1200. In one M814, the user can display up to 8 input contents on the screen. M810 is an ideal solution for simulation. It can connect with inputs from multiple PCs and combine them into one seamless image. Unnecessary images can be masked out. It also provides flexible displays in an edge blending system. For a 3x projector edge blending system, the user can configure a 1+1+1 independent display, 1+2 (two projectors blended), and all-in-one (three projectors blended).

Users can also execute edge blending with a projector at the portrait position without rotating the source image to increase image height. M810 is designed for 7/24 working conditions. Using M810, users can replace high-end projectors with low-cost projectors without lens shift, warp, and edge blending functions. It provides easy configuration, low entry barriers, and cost-effective, reliable, and flexible solutions.

Unlock the full potential of your visuals with the M810 series, the ultimate solution for edge blending. Designed for seamless integration and exceptional performance, the M810 series offers everything you need to transform your projection experiences.
• Modularized design of edge blending processor
• Up to 120x68 warp control point
• Embedded video wall function, no image splitter is required
• 4K loop out port for daisy chain connection in cascade application
• Easy configuration via IR remote, PC tool, or WebGUI

Versatile Connectivity and Outstanding Performance

Connectivity
• 4 Input Ports: 2x HDMI, 1x DP, 1x VGA
• 1 HDMI Output

Resolution Support
• Up to 7680x2160 @30Hz, 7680x1200 @60Hz, or 4096x2160 @60Hz with 4:4:4 full-color sampling
• Output: Up to WUXGA/2048x1080 @60Hz

High-End Performance
• Powered by a 10-bit processor
• Supports non-VESA standard input timings for superior results

Advanced Warp Technology for Precision Control
Real-Time Adjustments: Instantly optimize geometry and color for flawless results

Geometry Alignment & Edge Blending
• Perform edge blending and intricate geometry alignment with up to 120x68 control points
• Adjust visuals via IR controller, USB, WebPage, or Ethernet

New Features
• Linear Grid Line Adjustment for precise line movement
• "W" Shape Corner Wall Adjustment for 90-degree corner alignment

Color & Light Control
• Separate R, G, B gamma correction for edge blending fine-tuning
• Individual color correction for each output
• 9 regions for black level uplift to compensate for light leakage

Effortless Daisy Chaining and Video Wall Function

HDMI Loop-Out
• Daisy-chain up to 8k/2k @30Hz or 8k/1k @60Hz
• No need for additional HDMI splitters

Video Wall Function
• Crop and allocate the source image for each projector
• Set overlap pixels for smooth, seamless edge blending

• Curved Edge Blending: Achieve complete curved edge blending with just remote controller and Ethernet

Flexible Displays with PIP and POP Functions

PIP & POP
• Standard PIP (picture in picture) and POP (side by side) options for flexible displays
• Ideal for Classroom Applications: Enjoy ultimate flexibility for immersive and educational environments

Display up to 3 different projects for 3x projector edge blending:
• 1+1+1 Independent Display
• 1+2 (Two Blended Projectors)
• All-in-One (Three Blended Projectors)

Perfect for Simulation and Immersive Applications
• Simulation Excellence: Enhance resolution by blending from multiple PCs
• 24/7 Operation: Designed to run non-stop, providing reliability and consistent performance
• Simple Configuration: Low entry barrier, cost-effective, reliable, and flexible

Cost-Effective Solutions
• Replace high-end projectors with affordable alternatives
• Eliminate the need for lens shift, warp, and edge blending

Geometry Adjustment
• Warp engine for geometry alignment up to 17x9 control points in IR control and GCT PC Tool
• 120x68 grid pixel position fine-tune
• Each control point can be adjusted with 1/4 pixel/step and moved up to 12.5 pixels adjustment range
• Maximum adjusting points are 100 points
• Geometry adjustment range up to 600 pixels in both H&V directions
• Edge blending at 4 edges up to H=1920 pixels, V=1200 pixels with independent RGB gamma correction
• 9 regions black level uplift to compensate light leakage from projector optical system
• Edge Mask following the result of geometry alignment up to 500 pixels
• Edge Mask with 8 control points up to 900 pixels in H&V directions at each control point
• Support "W" type Corner Wall adjustment in horizontal and V type in the vertical direction
• The maximum adjusting range is 1200 pixels
• Support Linearity Grid Line adjustment for quick H&V line position alignment

Video Functionality
• Embedded video wall function for image split, cropping, and edge blend overlapped pixel setting
• Selectable grid pattern size from 8-120 pixels in the H&V direction
• Selectable grid pattern color with optional transparency to see background image for external pattern
• Flexible aspect ratio adjustment in each edge up to +/-1800 pixels position shift
• 10-bit processor, 3:2/2:2 cadence, low angle smooth algorithm, high-quality scaling engine
• 3D motion adaptive de-interlace
• Frame lock function to get perfect synchronized outputs in all channels
• Free-run mode provides a continuous signal to the output. No source searching is required in the projector when the input source change
• Support xvYCC & 8/10/12-bit deep color processing
• Support High Dynamic Range (HDR) input signal and convert it to SDR in the output
• Individual color and white balance adjustment in each processing channel
• Individual 90/180/270 rotation, flip, cropping, scaling & color adjustment in each channel up to 4k/60 input
• PIP/POP function with PIP image size from 320180 up to 19201200 resolution with flexible position and adjustable aspect ratio. This function is not available when the main image is 90/270 degrees rotation
• Selectable and programmable EDID in the range: H=1024-3840, V=720-2400
• User can save up to 5 settings and can be recalled by remote controller, RS
