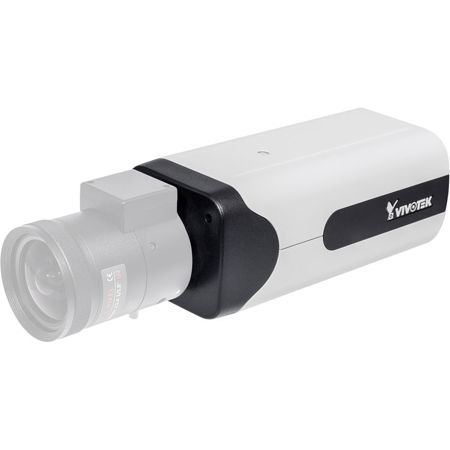

Vivotek IP816A-LPC 2MP Day & Night LPC Solution Network Camera with 4-18mm Lens
See all Vivotek items

Vivotek 2MP LPR Camera, WDR (100 dB), 4-18mm P-Iris Lens

SKU: VIIP816ALPC1

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Vivotek IP816A-LPC Specifications

  • CPU

    Multimedia SoC (System-on-Chip)

  • Flash

    256MB

  • RAM

    384MB

  • Image sensor

    1/1.9" Progressive CMOS

  • Maximum Resolution

    1920 x 1080 (2MP)

  • Lens Type

    Vari-focal

  • Focal Length

    f=4 to 18mm

  • Aperture

    F1.4 to F13

  • Auto-iris

    P-iris (DC-Iris reserved)

  • Field of View

    29 to 106 deg. (horizontal)
    16 to 60 deg. (vertical)
    33 to 130 deg. (diagonal)

  • Shutter Time

    1/400 to 1/10,000 sec

  • WDR Technology

    WDR Pro

  • Day & Night

    Removable IR-cut filter for day & night function

  • Minimum Illumination

    Illumination Threshold: 300 Lux at IR On
    600 Lux at IR Off

  • Pan / Tilt / Zoom

    ePTZ: 48x digital zoom (4x on IE plug-in,12x built-in)

  • On-board Storage

    SD/SDHC/SDXC card slot

  • Video Compression

    H.264 & MJPEG

  • Maximum Frame Rate

    30fps at 1920 x 1080
    60fps at 1920 x 1080 (In one-stream mode only)
    (In both compression mode)

  • Maximum Streams

    2 simultaneous streams

  • S/N Ratio

    50.8dB

  • Dynamic Range

    Up to 100dB

  • Video Streaming

    Adjustable resolution, quality and bitrate

  • Image Settings

    Time stamp, text overlay, flip & mirror, Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks, scheduled profile settings, 3D noise reduction, EIS, video rotation, snapshot focus

  • Audio Capability

    Two-way Audio (full duplex)

  • Audio Compression

    AAC, G.711, G.726

  • Audio Interface

    External microphone input
    Audio output

  • Users

    Live viewing for up to 10 clients

  • Network Interface

    10Base-T / 100BaseTX Ethernet (RJ-45)
    It is highly recommended to use standard Cat. 5e & Cat. 6 cables which are compliant with the 3P/ETL standard

  • ONVIF

    Supported

  • Video Motion Detection

    Triple-window video motion detection

  • Alarm Triggers

    Video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection

  • Smart Focus System

    RBF (Remote Back Focus)

  • Connectors

    RJ-45 for Network/PoE connection
    Audio input/output
    BNC Video output
    AC 24V power input
    DC 12V power input
    3 x Digital input
    1 x Digital output
    RS485

  • LED Indicator

    System power and status indicator

  • Power Input

    DC12V/AC24V
    IEEE 802.3af PoE

  • Power Consumption

    DC Maximum 9.2W
    AC Maximum 15.4W
    PoE Maximum 12.2W

  • Safety Certifications

    CE, C-Tick, FCC Class A, LVD, VCCI, UL

  • Operating Temperature

    Starting Temperature: 32 to 140 deg. F (0 to 60 deg. C)
    Working Temperature: 14 to 140 deg. F (-10 to 60 deg. C)

  • Operating System

    Microsoft Windows 7/8/Vista/XP/2000

  • Web Browser

    Mozilla Firefox 7 to 43 (streaming only)
    Internet Explorer 7/8/9/10

  • Other Players

    VLC: 1.1.11 or above
    QuickTime: 7 or above

  • Dimensions (D x W x H)

    9.06 x 2.76 x 2.50" (230.2 x 70 x 63.5mm)

  • Weight

    22.29 oz (632g)

About Vivotek IP816A-LPC

VIVOTEK's IP816A-LPC (18mm) is a professional box network cameras offering perfect solutions for License Plate Capture with a unique headlight filter design and specialized firmware for traffic monitoring. Featuring dedicated LPC firmware and mutually compatible lens, the IP816A-LPC (18mm) is perfect for parking related applications. With a suitable selection of external IR LEDs, this camera will be ideal for 24/7 license plate capture and will provide high-detail polished images for reliable license plate recognition.

Equipped with a P-iris lens for extreme precision images, a headlight filter design which blocks distracting lights and Full HD sensor enabling viewing resolution of 1920 x 1080 at a smooth 30fps, the IP816A-LPC (18mm) is capable of capturing high quality and high resolution video in any conditions. With up to 2 Megapixel with WDR Pro, 3DNR and SNV technology, no matter whether in high contrast or in low light environments, this camera is high-tech workhorses which will ensure license plate capture and traffic monitoring of the highest precision.

In order to help properly adjust the focus of this high resolution camera, the IP816A-LPC (18mm) is equipped with VIVOTEK' s RBF (Remote Back Focus) System, allowing installers to adjust focus even more accurately in complicated or sensitive installation environments. Meanwhile, value-added features like EIS and Snapshot Focus ensure that the IP816A-LPC (18mm) performs as the perfect LPR solution by empowering installers to adjust camera positions and focus with extreme precision.

Vivotek IP816A-LPC Features

  • 2-Megapixel CMOS Sensor
  • 30fps at 1920 x 1080, 60fps at 1920 x 1080 (one-stream mode only)
  • P-iris Lens
  • Headlight Filter to Block Visible Light
  • 3D Noise Reduction for Low-light Conditions
  • WDR Pro (100dB) to Provide Extreme Visibility in High Light Contrast Scenes
  • SNV (Supreme Night Visibility)
  • RBF System to Assist for Precise Focus Adjustment
  • EIS (Electronic Image Stabilization) to Control Image Stability
  • Two-way Audio
  • Snapshot Focus
  • Video Rotation for Corridor View
  • Lens Profile for Lens Selection

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Vivotek IP816A-LPC 2MP Day & Night LPC Solution Network Camera with 4-18mm Vari-focal Lens
  • CD (User's Manual
  • Quick Installation Guide
  • Installation Wizard 2)
  • Lens
  • Camera Stand
  • Screw Pack
  • Vivotek 3 Year Warranty
