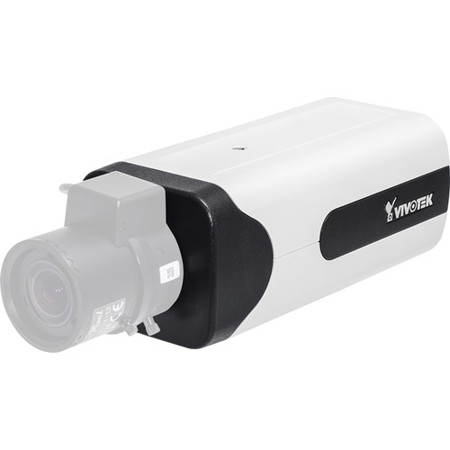

Vivotek IP9171-HP 3MP Day & Night Fixed Network Camera with 2.8-8mm Vari-Focal Lens, 2048x1536, 30fps, H.264, MJPEG, PoE

SKU: VIIP9171HP

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Vivotek IP9171-HP Specifications

  • CPU

    Multimedia SoC (System-on-Chip)

  • Flash

    128MB

  • RAM

    512MB

  • Image sensor

    1/2.8" Progressive CMOS

  • Maximum Resolution

    2048 x 1536 (3MP)

  • Lens Type

    Vari-focal

  • Focal Length

    f=2.8 to 8mm

  • Aperture

    F1.2 to F1.95

  • Auto-iris

    P-iris

  • Field of View

    51 to 114 deg. (horizontal)
    39 to 84 deg. (vertical)
    63 to 143 deg. (diagonal)

  • Shutter Time

    1/5 sec to 1/16,000 sec

  • WDR Technology

    WDR Pro

  • Day & Night

    Removable IR-cut filter for day & night function

  • Minimum Illumination

    0.01 Lux at F1.2(Color)
    0.001 Lux at F1.2(B/W)

  • Pan / Tilt / Zoom

    ePTZ: 48x digital zoom (4x on IE plug-in,12x built-in)

  • On-board Storage

    Slot Type: MicroSD/SDHC/SDXC card slot
    Seamless Recording

  • Video Compression

    H.265 & H.264 & MJPEG

  • Maximum Frame Rate

    H.265 & H.264: 30fps at 2048 x 1536
    MJPEG: 15fps at 2048 x 1536

  • Maximum Streams

    3 simultaneous streams

  • S/N Ratio

    60dB

  • Dynamic Range

    100dB

  • Video Streaming

    Adjustable resolution, quality and bitrate
    Smart Stream II

  • Image Settings

    Time stamp, text overlay, flip & mirror Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks Scheduled profile settings, video rotation, 3DNR, defog, Snapshot Focus, Lens Profile, DIS

  • Audio Capability

    Two-way Audio (full duplex)

  • Audio Compression

    G.711, G.726

  • Audio Interface

    External microphone input
    Audio output

  • Users

    Live viewing for up to 10 clients

  • Network Interface

    10 Base-T/100 Base-TX /1000 Base-T Ethernet (RJ-45)
    It is highly recommended to use standard Cat. 5e & Cat. 6 cables which are compliant with the 3P/ETL standard

  • ONVIF

    Supported

  • Video Motion Detection

    Five-window video motion detection

  • VCA

    Line crossing detection, field detection, loitering detection

  • Alarm Triggers

    Video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection

  • Smart Focus System

    Remote Back Focus via UI

  • Connectors

    RJ-45 cable connector for 10/100/1000Mpbs
    Network/PoE connection
    Audio input
    Audio output
    AC 24V power input
    DC 12V power input
    3 x Digital input
    1 x Digital output

  • LED Indicator

    System power and status indicator

  • Power Input

    DC12V/AC24V
    IEEE 802.3af/at PoE Class 0

  • Power Consumption

    Maximum 8.6W

  • Safety Certifications

    CE, LVD, FCC Class B, VCCI, C-Tick, UL

  • Operating Temperature

    Starting Temperature: 32 to 122 deg. F (0 to 50 deg. C)
    Working Temperature: 14 to 122 deg. F (-10 to 50 deg. C)

  • Operating System

    Microsoft Windows 7/8/Vista/XP/2000

  • Web Browser

    Mozilla Firefox 7 to 43 (streaming only)
    Internet Explorer 7/8/9/10/11

  • Other Players

    VLC: 1.1.11 or above
    QuickTime: 7 or above

  • Dimensions (D x W x H)

    8.27 x 2.76 x 2.48" (210 x 70 x 63mm)

  • Weight

    21.98 oz (623g)

About Vivotek IP9171-HP

VIVOTEK's IP9171-HP is a brand-new professional H.265 box network camera offering up to 30 fps at 3-Megapixel with superb image quality. By utilizing VIVOTEK's sophisticated Smart Stream II, the camera is able to optimize resolution for a desired object or area and thus ensure maximum efficiency of bandwidth usage. Combining both H.265 and Smart Stream II, the IP9171-HP can reduce both bandwidth and storage consumption by up to 80% while maintaining the high standard of image quality. This unique combination of high resolution and low storage consumption make the IP9171-HP suitable for a wide range of video surveillance applications, including government and industrial buildings, retail environments, airports, railway stations and schools.

Additionally, employing WDR Pro allows the camera to capture both the dark and bright areas of an image, combining the differences to create a highly realistic representation of the original scene. Further improving the IP9171-HP's range of operating conditions, SNV technology makes high-quality full-color surveillance video possible under low-light conditions. Together, these features enable the camera to provide video quality strikingly close to the capabilities of the human eye. Further enhancing the camera's ability to adapt to its environment, precise software controls maintain the iris opening of the IP9171-HP's lens at an optimal level at all times, resulting in superior sharpness as well as depth of field. Finally, the IP9171-HP is also endowed with VIVOTEK's RBF (Remote Back Focus) System, empowering the installer to adjust focus both precisely and with greater flexibility.

Vivotek IP9171-HP Features

  • H.265 Compression Technology
  • 30fps at 2048 x 1536
  • P-iris Lens
  • Smart Stream II to Optimize Bandwidth Efficiency
  • WDR Pro for Unparalleled Visibility in High Contrast Environments
  • Remote Back Focus for Easy Focus Adjustments
  • SNV (Supreme Night Visibility) for Low Light Conditions
  • Video Rotation for Corridor View
  • Lens Profile to Ensure the Full Compatibility for Different Lens Options
  • Gigabit Ethernet for High Speed of Transmission
  • Snapshot Focus
  • DIS (Digital Image Stabilization)

What's in the box:

  • Vivotek IP9171-HP 3MP Day & Night Fixed Network Camera with 2.8-8mm Vari-Focal Lens
  • CD (User's Manual
  • Quick Installation Guide
  • Installation Wizard 2
  • VAST Software)
  • Mounting Bracket
  • Screw Pack
  • Lens
  • Vivotek 3 Year Warranty
