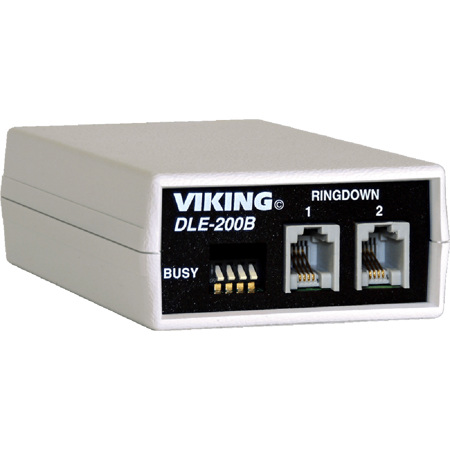

Viking DLE-200B Two Way Phone Line Simulator

SKU: VIKDLE200B

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Shopper : Why Did You Choose This?BENJAMIN W : Call taker training for 911-Emergency Dispatchers

Reviews about this item

Review Summary

2020-12-11T07:37:21

Rated 5 out of 5

Great device!

Item works perfectly! Does exactly what I need!

Damon H.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Viking DLE-200B Specifications

  • Compatibility

    Fax Machines and Modem Speeds Upto 28.8 kbps

  • Environmental

    0deg. C to 32deg. C (32deg. F to 90deg. F) with 5% to 95% non-condensing humidity

  • Ringer Output

    2.0 REN load

  • Loop Length

    4.2 km (2.6 mi) maximum - 24 AWG twisted pair

  • Dial Tone Level

    -20dBm with 600 ohm load

  • CPC Break Time

    2 seconds or 150 msec (selectable)

  • Connections

    (2) RJ11 jacks

  • Power

    120V AC/13.8V AC 1.25A, UL listed adapter provided Power Supply

  • Current Draw

    600mA maximum

  • Dimensions

    120 x 70 x 35mm (4.7 x 2.7 x 1.4")

  • UPC Code

    615687220797

About Viking DLE-200B

FEATURED REVIEWS

Great device!

By Damon H.

Item works perfectly! Does exactly what I need!

The Viking DLE-200B Line Simulator produces two way communication between standard telecom products such as modems, fax machines, Key Systems, PABX's and standard single line telephones. The Line Simulator can also provide sales people with a cost effective, easy to use method of conducting on site demonstrations, eliminating the need to locate phone lines and disrupt the customer's phone service.

The DLE-200B Line Simulator provides precise dialtone, DC talk battery and standard or distinctive ringing. The unit also provides a CPC break on hang up.

Viking DLE-200B Features

  • Precise dial tone 32VDC talk battery
  • Switch selectable ring cadence
  • Provides CPC breaks after hang-up on either port
  • Switch selectable audio attenuation
  • Provides 2 seconds of precise dial tone after off-hook
  • Provides ring back signal to calling device
  • One or two way ring down capability
  • Jumper selectable ring count
  • Ring down and dial tone off mode (ideal for prison phone communications, etc.)
  • Applications: Dedicated point-to-point communications (ringdown circuits), Program Telecom products without a phone line, Connecting dictation equipment to Electronic Key Systems, Intersystem TIE line, Courtesy phones, Demonstrating telecom equipment at trade shows, meetings, etc
  • Applications: Connecting modems together, Prison phone communications, Programming PC based voice products, Replacement for Proctor Model #46220 and Proctor Model #46240 (requires 4 DLE-200B's)

Key Features

  • Precise dial tone 32VDC talk battery
  • Switch selectable ring cadence
  • Provides CPC breaks after hang-up on either port
  • Switch selectable audio attenuation
  • Provides 2 seconds of precise dial tone after off-hook
  • Provides ring back signal to calling device
