Viking Digital Mass Notification Announcer

SKU: VIKDNA510

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Viking Digital Mass Notification Announcer Specifications

  • Applications

    Provide Emergency Mass Notification for:
    Schools
    Restaurants
    Churches
    Theaters
    Auditoriums
    Dormitories
    Office buildings
    Factories
    Any "areas of assembly" with 50 or more people (see your state and local codes)

  • Power

    120V AC/13.8V AC 1.25A UL listed adapter provided

  • Environmental

    0deg.C to 32deg.C (32deg.F to 90deg.F) with 5% to 95% non-condensing humidity

  • Sampling Rate

    96K (equivalent)

  • Connections

    (2) RCA audio jacks, 11 position cage clamp terminal strip

  • Audio output

    600 ohm with volume adjustable potentiometer, maximum level = 2.2 dBm/ 1V RMS across 600 ohm load

  • Page Trigger Output

    12V DC (20mA maximum) or N.O./N.C. relay contacts (1A 30V DC / 0.3A 110V AC maximum)

  • Dimensions

    133 x 91 x 44 mm / 5.23 x 3.58 x 1.73"

  • Weight

    0.8 kg / 1.76 lbs

  • UPC Code

    615687223385

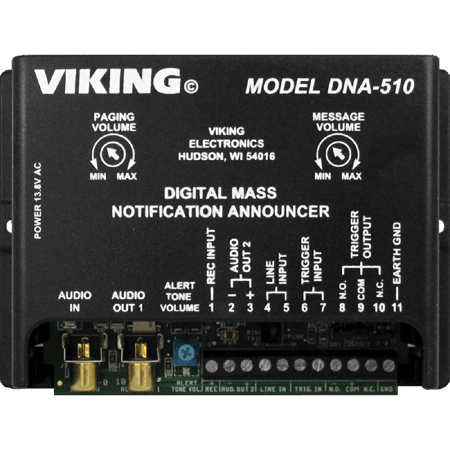

About Viking Digital Mass Notification Announcer

The Viking DNA-510 is a digital mass notification announcer, capable of providing up to 2 minutes of digitally recorded voice emergency instructions and alert tones over your existing paging system.

The DNA-510 connects to a phone line, analog phone system station or a phone system's unused trunk/line input allowing you to securely page, trigger emergency messages and/or alert tones and program the unit from any remote touch tone phone.

When activated, the DNA-510 will interrupt any current paging or background music and inject an emergency voice message and/or alert tone over your paging system. A live page can also be announced.

The DNA-510 can be programmed to repeat one 2 minute message, two 1 minute messages, four 30 second messages or five 24 second messages. It can also be programmed with 10 different alert tones for emergency mass notification of: evacuation, lock down, severe weather, fire, hazardous material release, tornado, flash flood, terrorist alert, all-clear, etc.

Viking Digital Mass Notification Announcer Features

  • Non-volatile memory (no batteries required)
  • Up to 2 minutes of total message record time
  • Record up to 5 different emergency messages
  • Call progress detection for automatic hang up on CPC, busy signal, dial tone or silence
  • Separate volume controls for paging, messages and alert tones
  • Automatically interrupts current page or background music to inject emergency announcement, alert tones or live page
  • Programmable trigger input to activate a message and/or alert tone
  • N.O. & N.C. trigger output contacts for activating flashing beacon (BLK-3-EWP), Alarm Dialer (K-202-DVA), etc
  • Security code to prevent fraudulent use
  • Connects directly to an unused line input (trunk) or station port of a phone system or to a dedicated phone line

Key Features

  • Non-volatile memory (no batteries required)
  • Up to 2 minutes of total message record time
  • Record up to 5 different emergency messages
  • Separate volume controls for paging, messages and alert tones
  • Programmable trigger input to activate a message and/or alert tone
  • Security code to prevent fraudulent use
