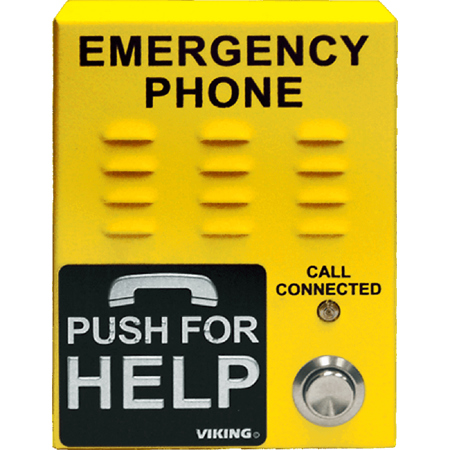

Viking E-1600-45A ADA Compliant Elevator Emergency Phone with Built-in Digital Announcers, Yellow Powder Paint

SKU: VIKE160045A

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Viking E-1600-45A Specifications

  • Applications

    Elevators
    Parking ramps
    Pools
    ATM machines
    Area of refuge locations
    Lobbies
    Entryways
    Campus emergency stations
    Roadside emergency stations
    Stadiums
    Convention centers

  • Power

    Telephone line powered, 24V DC talk battery with 20mA loop current minimum

  • Operating Temperature

    -26deg. C to 54deg. C (-15deg. F to 130deg. F)

  • Humidity

    5% to 95% non-condensing

  • Material

    .062" (16 gauge) steel (Yellow powder paint)

  • Connections

    RJ11

  • Mounting

    Surface mount to walls, posts, single gang boxes or 4" x 4" electrical junction boxes or recess mount in elevator phone boxes

  • Busy Signal: Minimum Signal Level

    -22dbm

  • Busy Signal: Minimum No of Busy Pulses

    7

  • Busy Signal: Frequency Range

    300-2000 Hz

  • Busy Signal: Standard Busy Cadence

    Minimum: 450ms ON/OFF
    Maximum: 550ms ON/OFF

  • Busy Signal: Fast Busy Cadence

    Minimum: 150ms ON/OFF
    Maximum: 300ms ON/OFF

  • Ringback Signal: Minimum Signal Level

    -22dbm

  • Ringback Signal: Frequency Range

    300-2000 Hz

  • Ringback Signal: Minimum No of Rings

    Programmable 2-9 or disabled

  • Ringback Signal: Ringback Cadence

    Minimum: 1 sec ON, 1 sec OFF
    Maximum: 2.5 secs ON, 5 secs OFF

  • CPC Break: Minimum CPC Length

    450ms

  • CPC Break: Maximum CPC Length

    Unlimited

  • Return to Dial Tone: Min. Signal Level

    -22dbm

  • Return to Dial Tone: Frequency Range

    300-2000 Hz

  • Ring Signal: Min Ring Voltage at 20Hz

    30VAC RMS

  • Ring Signal: Min Ring Voltage at 30Hz

    25VAC RMS

  • Dimensions

    5.25 x 4.0 x 2.0" / 13.33 x 10.16 x 5.08cm

  • UPC Code

    615687221565

About Viking E-1600-45A

The Viking E-1600-45A ADA Compliant Elevator Emergency Phone with Built-in Digital Announcers (Yellow Powder Paint) is designed to provide quick and reliable handsfree communication for any standard analog telephone line or analog phone system station port. This phone meets ADA requirements for elevator/ emergency telephones and can be programmed from any Touch Tone phone. The phone can dial up to 5 programmable emergency numbers, as well as 2 central station numbers.

The E-1600-45A phone can be programmed to automatically deliver a digital announcement to identify the location of the emergency call. Alternatively, a DTMF Touch Tone code may also be delivered. A "Call Connected" LED can be initiated manually or automatically. All programming parameters, including phone numbers and location numbers, are stored in non-volatile E2 memory. All units are phone line powered, requiring no batteries or external power and are compatible with common Central Station Monitoring equipment.

Viking E-1600-45A Features

  • Meets ADA requirements for Emergency Phones: Can automatically light the "Call Connected" LED for the hearing impaired, Transmits a unique location I.D. code or voice announcement, Grade 2 Braille label for the visually impaired
  • Non-volatile digital voice announcer with 16 seconds of voice memory
  • Advanced call progress detection
  • Handsfree operation
  • Phone line powered
  • Non-volatile memory (no batteries required)
  • Marine grade 316 stainless steel prevents corrosion on stainless models
  • Dials up to 5 emergency numbers
  • Cycles through backup emergency and non-emergency numbers on busy or no-answer
  • Hangs up on CPC, silence, busy signal, dial tone, time-out or touch tone command
  • Programmable to auto-answer on incoming calls
  • Remotely programmable
  • Extended temperature range (-15deg.F to 130deg.F)
  • 9 different chassis or board only available
  • Central Station Monitoring capability (dials 2 numbers)

Key Features

  • Non-volatile digital voice announcer
  • Advanced call progress detection
  • Handsfree operation
  • Phone line powered
  • Non-volatile memory (no batteries required)
  • Marine grade 316 stainless steel prevents corrosion on stainless models
