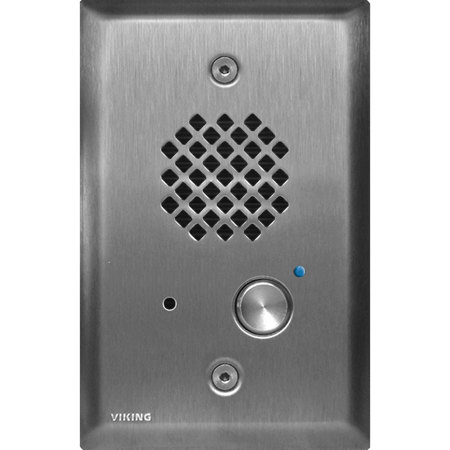

Viking E-40-SS-EWP Single Gang Entry Phone with Enhanced Weather Protection, Brushed Stainless Steel
SKU: VIKE40SSEWP
This item is no longer available.
Share:
Overview
Compare
Specs
Protection
About Viking E-40-SS-EWP
The Viking E-40-SS-EWP Single Gang Entry Phone with Enhanced Weather Protection (Brushed Stainless Steel) is weather and vandal resistant. These telephone line powered speaker phones are designed to provide two-way hands-free communication. The E-40-SS-EWP's compact size allows it to be mounted in a standard single gang electrical box. The E-40-SS-EWP features attractive finishes that match your door hardware, light fixtures, etc. The replacement E-40-SS-EWP faceplates (PNL40) can be purchased separately and are available in all five standard finishes.
The E-40-SS-EWP's blue LED continually provides light for locating the push button in dark locations, dims to indicate off hook and flashes during incoming ring. The E-40-SS-EWP entry phones can share a single phone line with house or small business telephones when used with a Viking model C-200, C-250 or C-2000B Entry Phone controller. The E-40-SS-EWP entry phones can also be connected to an unused analog station port (programmed for ring down) on a phone system or connected directly to a telephone line when used with a Viking model K-1900-5 or K-1900-30 auto dialer.
The E-40-SS-EWP features microphone and speaker volume controls, selectable auto answer for monitoring and intelligent call progress detection for automatic hang-up when the call is completed. For outdoor installations where the unit is exposed to precipitation or condensation, the E-40-SS-EWP comes with Enhanced Weather Protection (EWP).
Viking E-40-SS-EWP Features
- Applications: Door or gate communication, business delivery entrances
- Applications: Use with a Viking C-200 or C-250 to control an E-40BN on a single line
- Applications: Use with a Viking C-2000B to control 1 to 4 E-40BN's and door/gate control on a single phone line
- Applications: Provide unique front and back door chimes and paging when used with a Viking SLP-1, SLP-4 and C-2000B
- Applications: Residential, commercial and industrial door security
- Applications: Use with a Viking K-1900-5 or K-1900-30 for automatic speed dialing on telephone lines or analog PABX/KSU station ports
- Applications: Use on any analog PABX station port with programmable ringdown capability
- Compact size: Front panel is the size of a typical single gang midsize wall plate
- Mounting: Flush mounts in a single gang electrical box (2.25" deep x 2.00" wide x 2.84" tall minimum) or surface mounts in a Viking model VE-3x5 (not included)
- PNL-40 faceplates: Replacement faceplates with matching screws available in all five standard finishes
- Vandal Resistant Features: 16 gauge polished brass or 18 gauge 304 stainless steel faceplate, 316 stainless steel push button, carbon fiber reinforced plastic speaker screen, scratch resistant powder coating, hex drive mounting screws
- Weather Resistant Features: Mylar speaker, faceplate gasket, mic and speaker gasket, internally sealed (IP67) push button switch, self draining mic mount and UV stable weather resistant powder coating (excluding E-40-SS 304 Stainless Steel faceplate)
- E-40-EWP is designed to meet IP66 Ingress Protection Rating
- Telephone line powered
- Microphone and speaker volume controls
- Programmable Intelligent call progress detection for automatic hang-up on CPC, silence, busy signal, or time out
- Selectable auto answer feature for monitoring
- Programmable VOX (mic/speaker) switching speed
- Blue LED helps locate push button, indicate ringing and off hook
