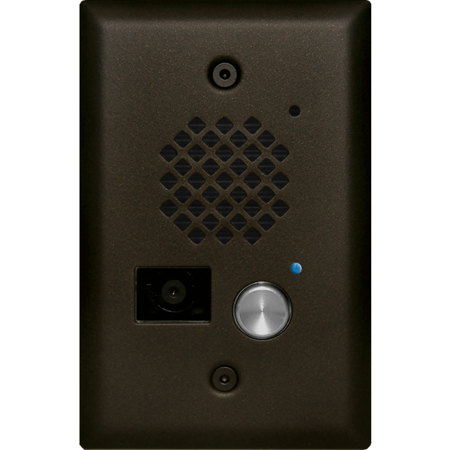

Viking E-50-BN-EWP Entry Phone with Color Video Camera, Bronze
SKU: VIKE50BNEWP
This item is no longer available.
Share:
Overview
Compare
Specs
Protection
About Viking E-50-BN-EWP
The Viking E-50-BN-EWP Entry Phone with Color Video Camera and Enhanced Weather Protection (EWP) is compact and vandal resistant speaker phone designed to provide two-way handsfree audio communication and color composite video of who is at your door or gate. The E-50-BN-EWP's compact size allows it to be mounted in a standard single gang electrical box. The E-50-BN-EWP's blue LED continually provides light for locating the push button in dark locations, dims to indicate off hook and flashes during incoming ring.
It can share a single phone line with house or small business telephones when used with a Viking model C-200, C-250 or C-2000B Entry Phone controller. The E-50-BN-EWP entry phone can also be connected to an unused analog station port (programmed for ring down) on a phone system or connected directly to a telephone line when used with a Viking model K-1900-5 or K-1900-30 auto dialer.
It features a built-in high resolution color video camera, microphone and speaker volume controls, selectable auto answer for monitoring and intelligent call progress detection for automatic hang-up when the call is completed.
Viking E-50-BN-EWP Features
- Built-in high resolution color video camera with wide viewing, tilt/swivel adjustments and wide operating temperature of -30deg. F to 150deg. F
- Audio and video transmission on one CAT5E cable
- Compact size: Front panel is the size of a typical single gang midsize wall plate
- Mounting: Flush mount in a single gang electrical box (2.25" deep x 2.00" wide x 2.84" tall min) electrical box or surface mount in a Viking model VE-3x5
- Vandal Resistant Features: 16 gauge polished brass or 18 gauge 304 stainless steel faceplate, 316 stainless steel push button, carbon fiber reinforced plastic speaker screen, scratch resistant powder coating, impact and scratch resistant camera lens and hex drive mounting screws
- Weather Resistant Features: Mylar speaker, faceplate gasket, mic and speaker gasket, internally sealed (IP67) push button switch, sealed camera lens, potted camera circuit board, stainless steel phone and camera mounting hardware and UV stable weather resistant powder coating
- E-50-EWP is designed to meet IP66 Ingress Protection Rating
- Microphone and speaker volume controls
- Programmable Intelligent call progress detection for automatic hang-up on CPC, silence, busy signal, or time out
- Selectable auto answer feature for monitoring
- Programmable VOX (mic/speaker) switching speed
- Blue LED helps located push button, indicate ringing and off-hook
- Applications: Door or gate communication, business delivery entrances, Use with a Viking C-200 or C-250 to control one E-50 on a single phone line, Use with a Viking C-2000B to control 1 to 4 E-50's and door/gate control on a single phone line
- Applications: Provide unique front & back door chimes & paging when used with a Viking SLP-1, SLP-4 & C-2000B, Use with a Viking K-1900-5/K-1900-30 for automatic speed dialing on telephone lines/analog PABX/KSU station ports, Use on an analog PABX station port with programmable ringdown capability
